Ptfe Liner Custom Steel Bushings Inner Layer Copper Plated Wall Thickness 1.5mm
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | IATF16949:2016 |
| Model Number | SF-18W |
| Minimum Order Quantity | 500pcs |
| Price | negotiation |
| Packaging Details | Standard export packing or as customer's requirement |
| Delivery Time | two weeks for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | Bushing | Inner Layer | PTFE + Copper |
|---|---|---|---|
| Application | Car Shock Absorber | Bushing Type | Sleeve, Flange, Ring, Plate, Washer, Split |
| Technical | Cast, Coat, Sintered, Powder, Wrap | Finishing | Bronze-plating Or Tin-plating |
| Material Of Bands | Bronze Steel | Backing Material | Carbon Steel, Stainless Steel |
| High Light | ptfe liner custom steel bushings,wall thickness 1.5mm custom steel bushings,ptfe liner stainless steel bushing |
||
Product Description
PTFE Liner Steel Bushing With Inner Layer Copper Plated And Wall Thickness 1.5 mm
Technical requirements:
1. Remove burrs and sharp edges
2. Anti rust oil treated before shipping
3. Checked the split 0.2 (+0.2/0) when the bush is pressed into the 60mm gauge
4. Wall thickness measured by micrometer 1.5 (+0.005/-0.04)
5. PTFE on OD, inner layer copper plated
6. OD 60-62.5 at the free state
|
main products |
SF non-oil lubrication bearing |
|
JF double metal bearing |
|
|
FB bronze bearing |
|
|
JDB inset solid lubrication bearing |
|
|
FZ straight bearing |
1. DU bushing Bearing
2. Full range of size and customized
3. High quality OEM manufacturer with much experience
Description:
1. High thermal conductivity, high load carrying capacity.
2. Excellent chemical resistance.
3. ROSH and ISO 9001: 2000
A type of DU bushing
It's also called PTFE bearing, DU bush and PTFE lined dry sliding bearing, SF-1 bearing, oil free bushes.
Self-lubricating bearing has a common structure with other DU bearing.
Characteristics:
Good wear and friction performance over a wide range of loads, speeds and temperature without oil
Also perform well with lubrication
Maintenance-free, long life
Availability:
Standard cylindrical bushing, flanged bush, thrust washers and strips are available.
Lead free type is also available
All special designs are produced according to your requirement
High wear resistance
Packaging Detail:
1. Anti-rust oil or tin plating
2. Rolled by high quality plastic paper or put into plastic bag
3. Plastic bag outside rollers
4. Good quality cartons
5. Pallet or wood case for every 8ctns/12ctns/18ctns
6. Detail information label
Delivery Detail: 10-25days
Technic Properties:
| Load capacity |
140N/MM2 |
|
TEMPERATURE |
-200-280°c |
|
Speed Limit |
2m/s |
|
Friction coefficient |
0.08-0.20 |
|
PV limit (dry) |
3.8N/mm2 m/s |
Applications:
DU bearing is widely used in Lifting equipment, Hydraulics and valves, pneumatic equipment, medical
equipment, textile machinery, agricultural equipment, construction equipment, material handing
equipment, packaging equipment, automotive field, scientific equipment, drying ovens, office equipment, etc.
Competitive Advantage:
|
Service |
Production drawing can be supplied within 1 day |
|
Small quantity accept |
|
|
3 hours reply on working time |
|
|
All email can be replied within 24 hours even on weekend |
|
|
Fast delivery |
|
|
Company strength |
Professional high quality OEM factory |
|
Many years experience in this field |
|
|
40% for export and get very good feedback |
|
|
High quality and reasonable price |

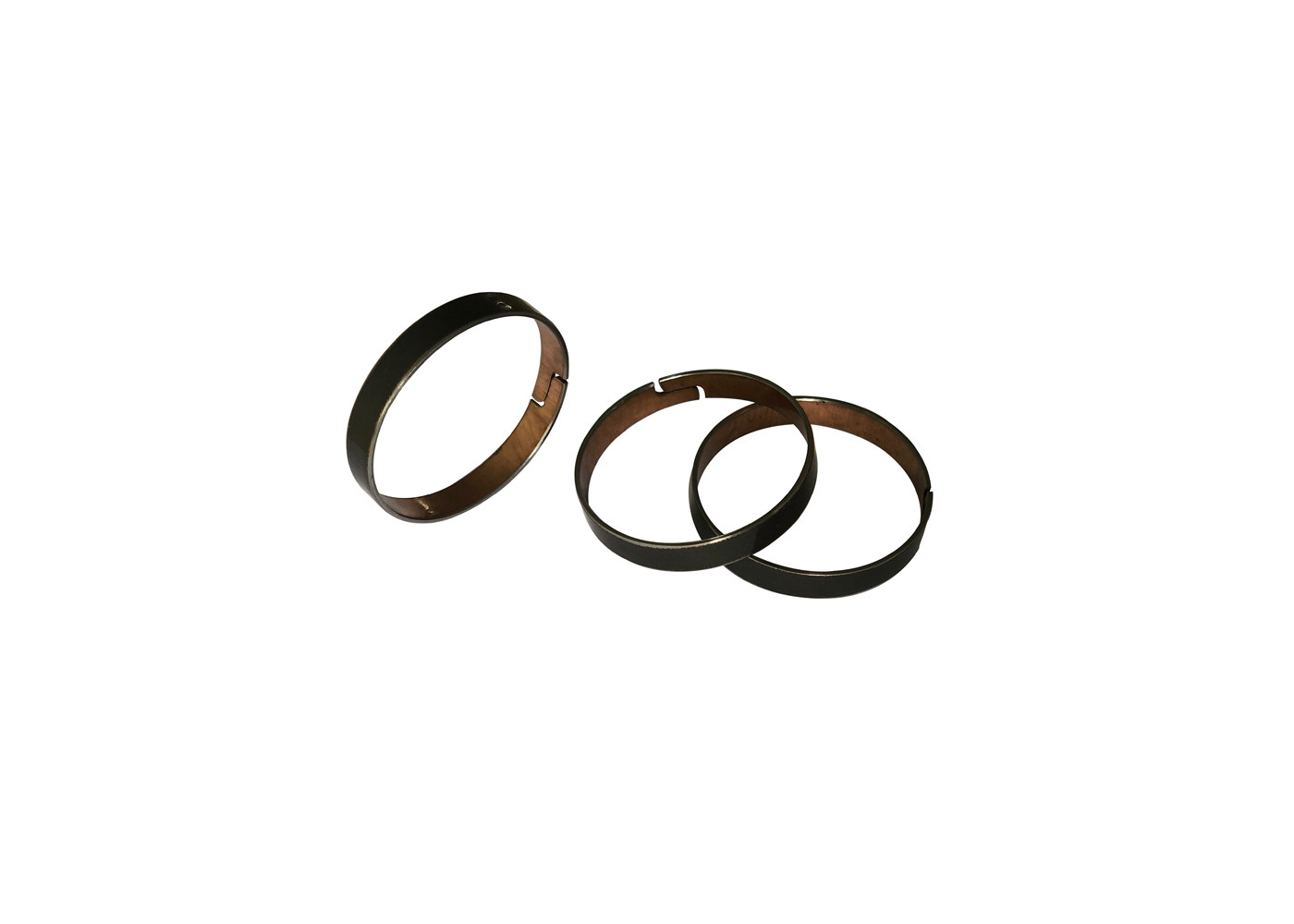

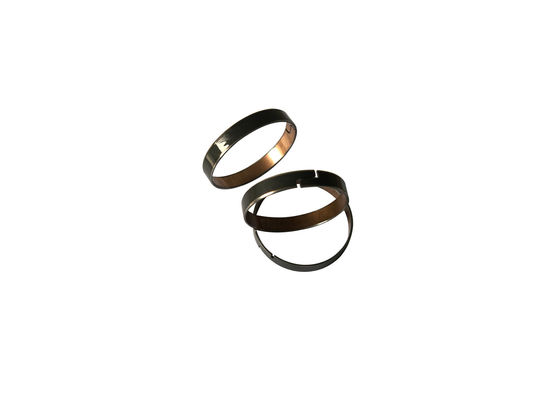

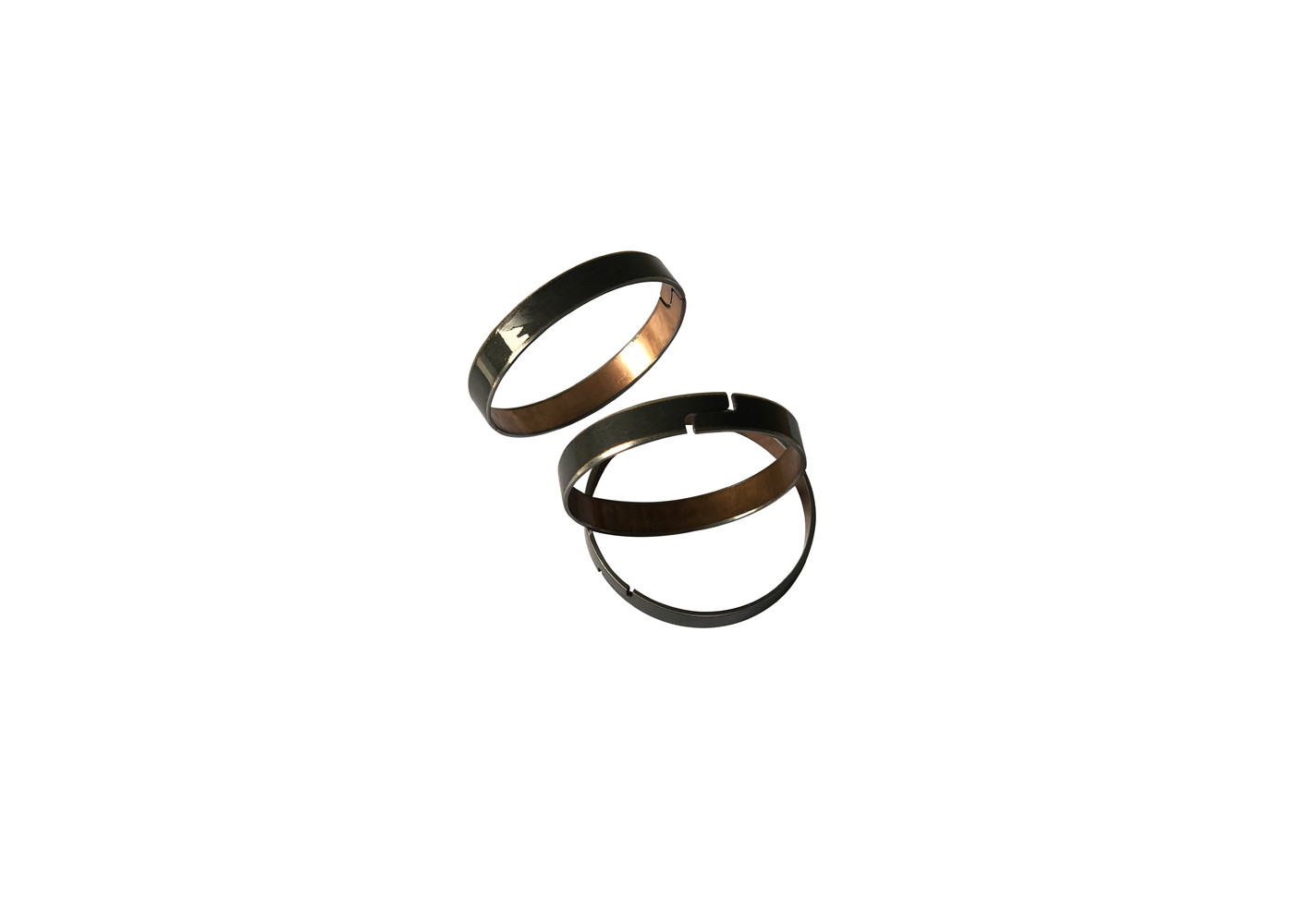

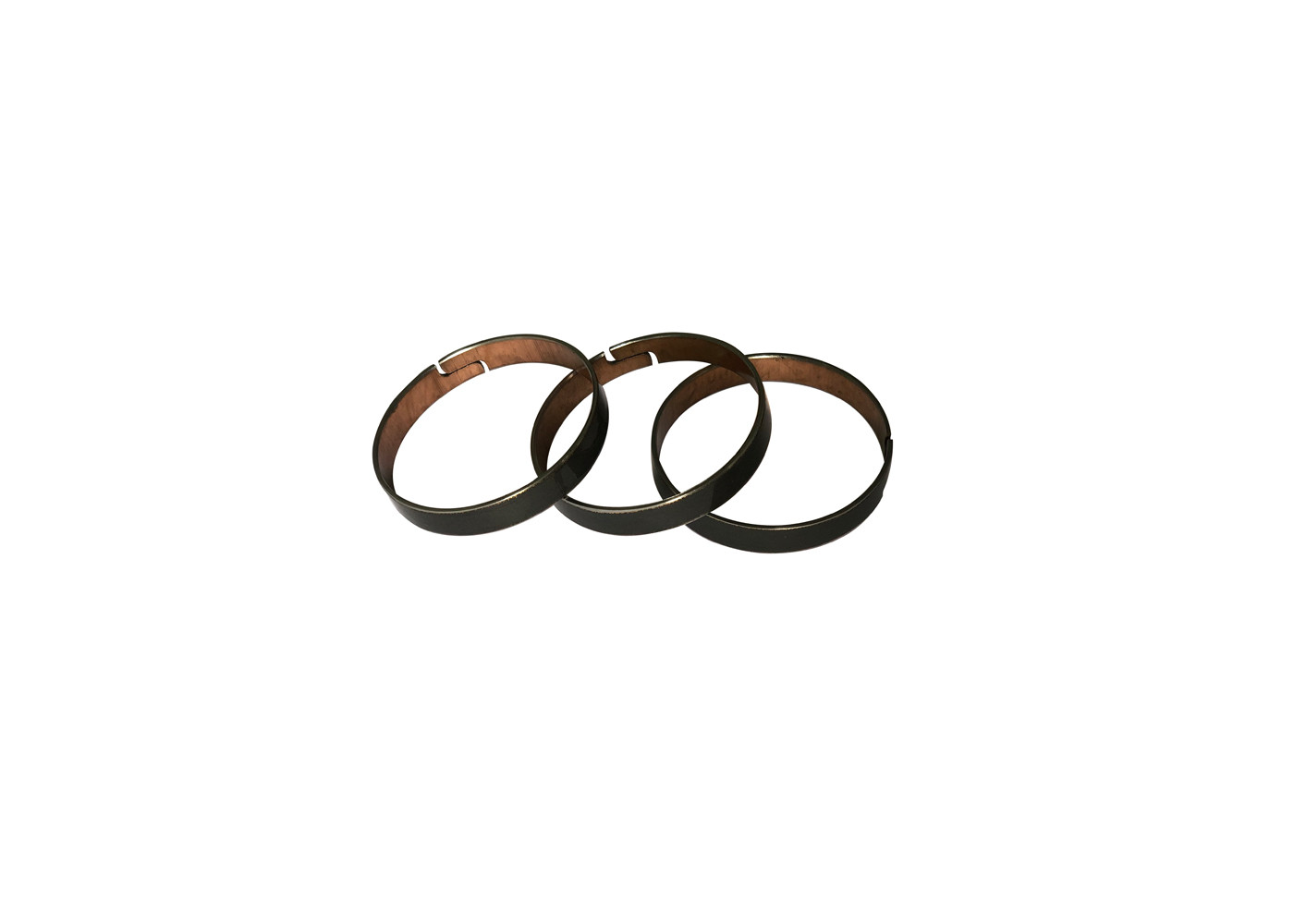

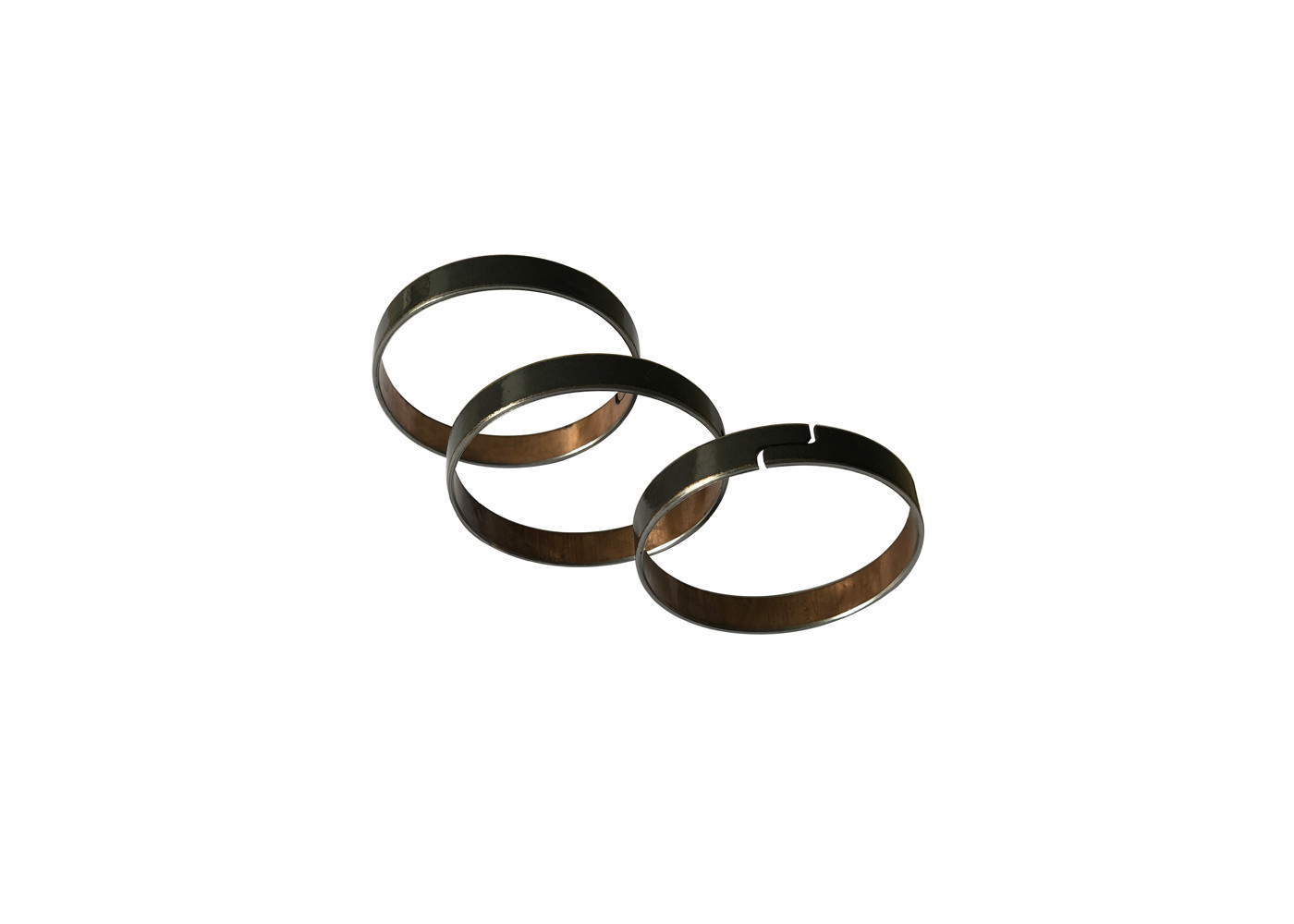

Picture Show
 |
