Low Carbon Steel Sleeve Bronze Flanged Bushing POM 0.50mm

Place of Origin China
Brand Name WEIWO
Certification ISO9001:2008
Model Number FB090
Minimum Order Quantity 500pcs
Price negotiation
Packaging Details Wooden case, Industrial roll inside packing
Delivery Time Within 7 work days after receive the advance payment
Payment Terms T/T, Western Union, L/C
Supply Ability 50,000pcs per month
Product Details
Product Name BUSHING Inner Layer PTFE
Application Car Shocks Type Sleeve
Color Black, Silver, Red, Blue Material Carbon Steel, Stainless Steel
Copper Plating Thickness 0.002mm Lubricating Covered With POM, PTFE, Graphite
High Light

0.50mm Bronze Flanged Bushing


PTFE Sleeve sintered bush


PTFE Car shocks Bronze Flanged Bushing

Leave a Message
Product Description

Customized low carbon steel flanged bronze bushing with POM thickness 0.30-0.50mm




Max Load





Max liner speed


Shear resistance strength


Yield strength


Temp. limit


Friction coefficient


Thermal conductivity

60w(m · k )-1




Largest bearing pressure: 140N/mm2


Applicable temperature range: -195-280°C


Highest sliding speed: 5m/s


Friction coefficient: 0.03-0.20


Allowable highest PV value: 4.3N/mm2,m/s


Allowable highest PV valve: 50N/mm2,m/s




1. Minimum coefficient of friction for solid materials


2. Maintenance free and self-lubricating


3. Minimum stick-slip effect


4. High PU (PV) for absolute dry-running and stability


5. Takes up edge loading and compensates for misalignment


6. Eliminates noise


7. Vibration damping


8. No water absorption


9. Good formability


10. Excellent wear resistance


11. Temperature resistant




1. Recommended for applications involving intermittent operation or boundary lubrication


2. Automotive: suspension joints, kingpin assemblies and stub axles of tucks, automobile driving joint


hinges, steering and other linkages, articulation joints, rear chassis hinges, fairleader rollers


3. Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in presses


4. Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front


axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters


5. Especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.




DU bush widely used in electric and electronic machines, electric tools, textile machines, chemical


engineering machines, automobiles and official business machines, etc.


Competitive Advantage:


1. Advanced machinery & excellent engineering team, competitive price.


2. Made in various materials according to client request.


3. Non-standard machining parts are available upon request.


4. Small quantity order acceptable

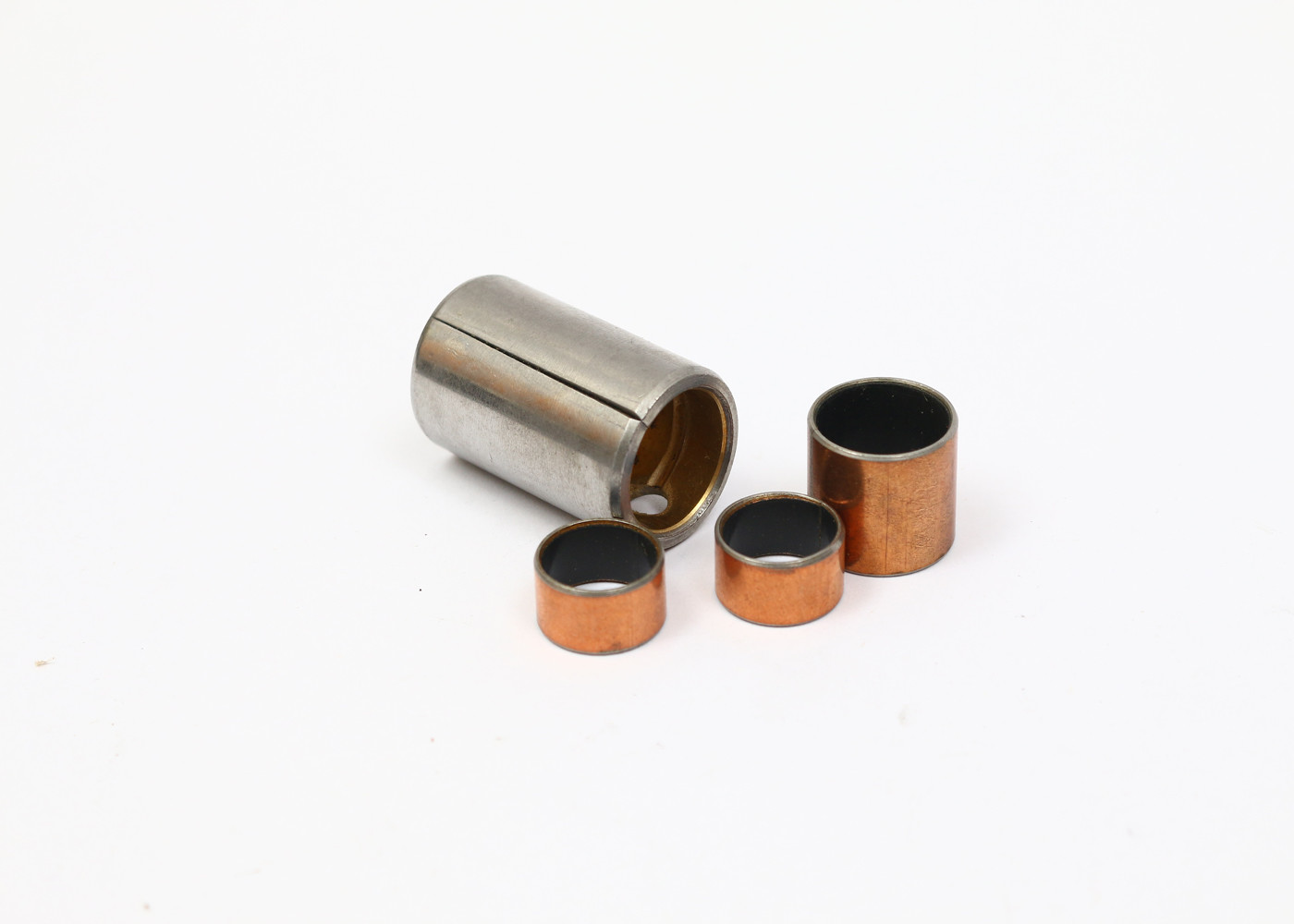

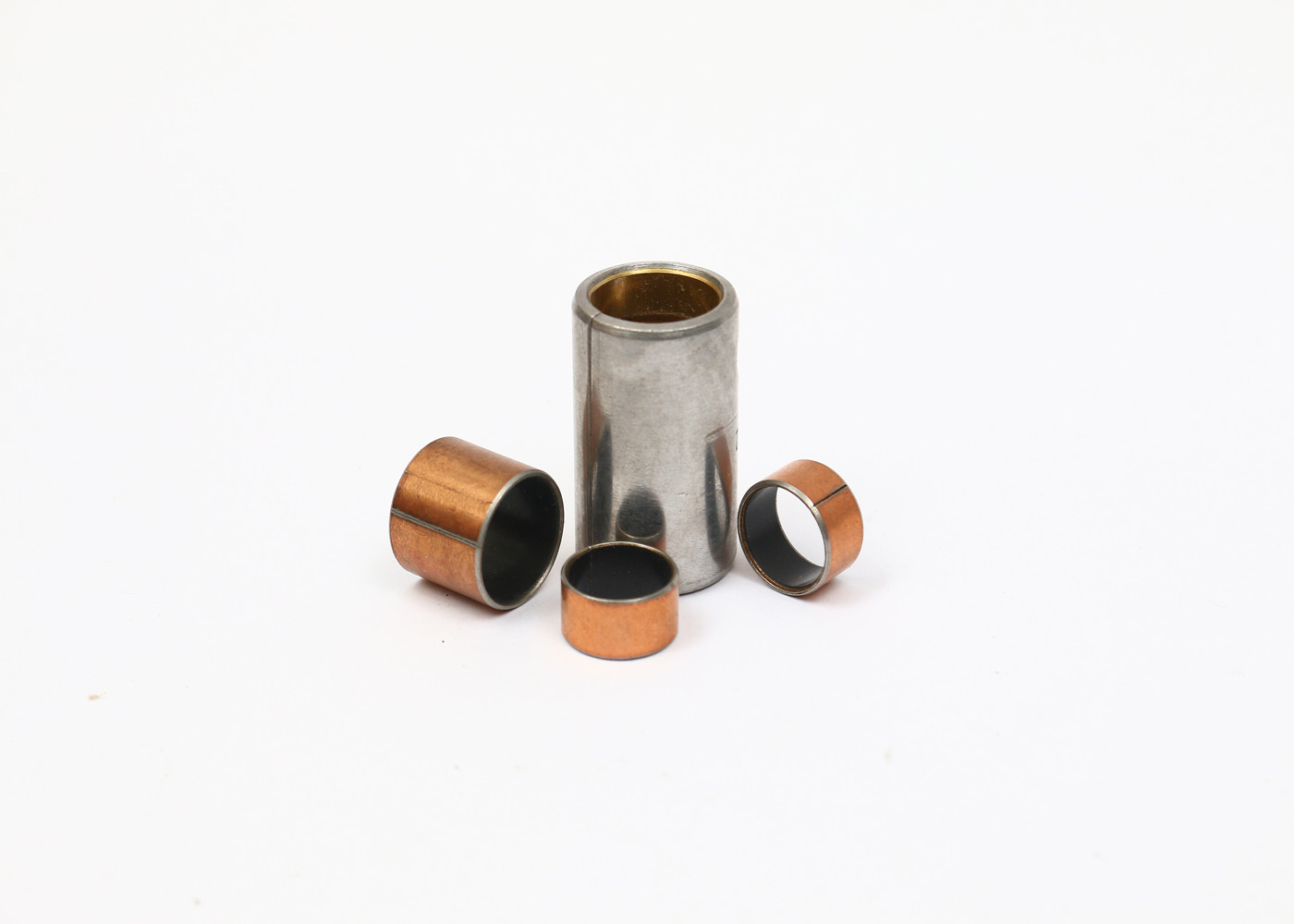

Picture Show

Low Carbon Steel Sleeve Bronze Flanged Bushing POM 0.50mm 0
