2.2mm Sintered Bronze Bushes Anti Corrosion Bimetal Oilless Bushing
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | SF-4 |
| Minimum Order Quantity | 500pcs |
| Price | negotiation |
| Packaging Details | boxes/cartons/pallet |
| Delivery Time | Within 20-25days after order confirmation |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | Bearing | Inner Layer | PTFE + Cu |
|---|---|---|---|
| Chemical Compositions | Cu Sn Zn Pb | Thickness Of Steel Plate | 0.7-2.2mm |
| Structure | Split Bushing | Standard | DIN1494 |
| Bronze Alloy | CuSn6.5P0.1 CuSn10Sn10 | Surface Treatment | Cooper Plating, Tin Plating, Zinc Plating |
| High Light | Anti Corrosion Sintered Bronze Bushes,Bimetal Sintered Bronze Bushes,Bimetal Oilless Bushing |
||
Product Description
Bronze bushing with good abrasion and corrosion resist bimetal sliding bushing
Specifications:
|
Features of Bushing |
Maintenance-free! |
|
No lubrication required (PTFE composite) |
|
|
Minimum wall thickness, minimum space requirements |
|
|
Accommodation of heavy loads |
|
|
Wide range of temperatures |
|
|
Good sliding properties |
|
|
High wear resistance |
Description:
Oilless bearing (bushing) takes steel plate as a substrate and is a kind of wrapped sliding bearing by
agglutinating spherical bronze powder inside the middle part and rolling the mixture of PTFE (PTEE) and
lead on the surface. It has the characteristics of small friction coefficient, wear-resisting, corrosion
resistance and oil-free lubrication. Using this product can reduce costs, reduce mechanical volume, avoid
bearing seizure phenomenon and reduce mechanical noise. The product has been widely applied in the
sliding parts of various machinery, such as printing machine, elevator, spinner, tobacco machine, body-
building, instrument, hydraulic pressure van, micro electrical machinery, solenoid valve, automobile,
motorcycle and farm & forestry machinery and so on.
1, Non-oil lubrication or less lubrication
2, Low maintenance, with better abrasion resistance
3, Low friction index and anti-aging.
Roughly introduction:
Materials
1. PTFE with mixture 0.01~0.03mm
2. Porous bronze 0.2~0.3mm
3. Steel backing 0.7~2.3mm
4. Tin-plating 0.005mm or copper plating 0.008mm
Technical data
|
Performance index |
data |
|
|
Max load capacity |
Static load |
250N/mm2 |
|
Dynamic load |
140N/mm2 |
|
|
Max sliding speed |
Dry friction |
2.5m/s |
|
Oil lubrication |
5.0m/s |
|
|
Max PV value limit |
Dry friction |
3.6N/mm2 m/s |
|
Oil lubrication |
50N/mm2 m/s |
|
|
Friction coefficient |
Dry friction |
0.08-0.20 |
|
Oil lubrication |
0.02-0.07 |
|
|
Working temperature |
-195℃~280℃ |
|
|
Thermal conductivity |
42W/mk |
|
|
Coefficient of thermal expansion |
11*10-6/k |
|
Applications:
Heavy vehicle, Agriculture, Industry, gear, pump, factory molds, automobile parts, excavator, tractor,
truck, lorry, hydraulic pump and so on.
SF-4 Advantages
1. Saving copper material, saving labor hours of turning
2. Low weight and low cost
3. Re-oiling period is prolonged usually to 5 times
4. High load capacity and particularly fitted for relatively rough wear, mating surface
5. Ready for change, available from stock

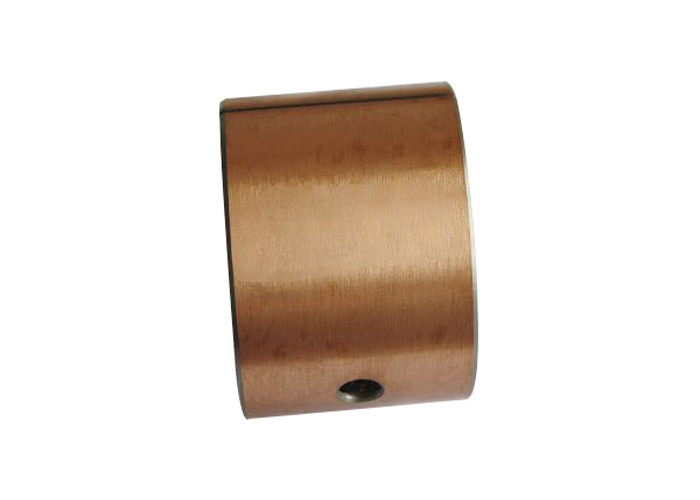

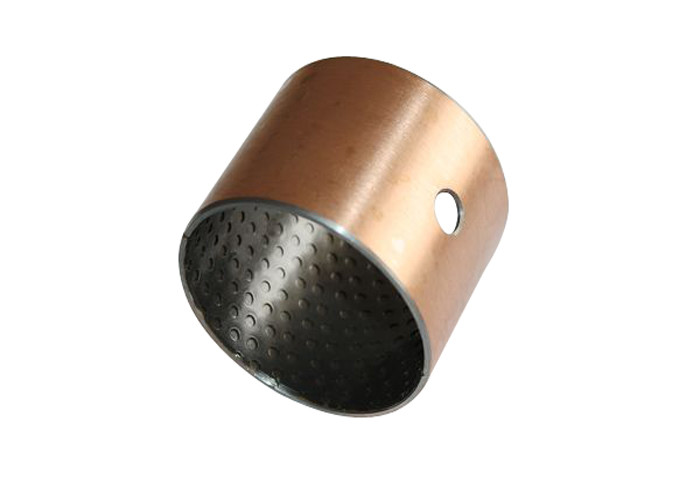

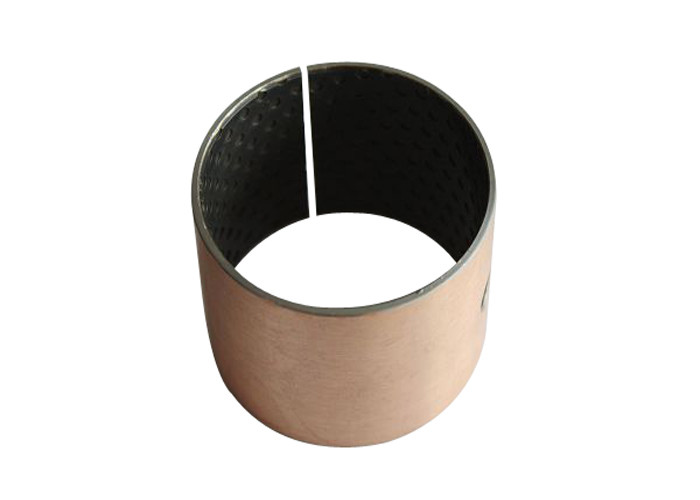

Picture Show
 |
