Automotive PTFE Powder Composite Du Sintered Bronze Bush 200T
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | SF-1B |
| Minimum Order Quantity | 500pcs |
| Price | negotiation |
| Packaging Details | export neutral carton outside packing |
| Delivery Time | Within 20-25days after order confirmation |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | Bushing | Bush Layer | PTFE, PTFE, POM Plastic, Tin, Zinc |
|---|---|---|---|
| Shape | Cylinder, Sleeve, Flanged, Thrust Pads | Press Machine | 3T~200T |
| Application | Automotive | Bush Type | SF-1X, 1T, 1P, 1W, SF-1B, 1S, 2, 2Y |
| Technical | Cast, Coat, Sintered, Powder, Wrap | Finishing | Bronze-plating Or Tin-plating |
| High Light | Powder Composite Du Sintered Bronze Bush,PTFE flanged bronze bushings,200T sintered bronze bush |
||
Product Description
Sintered bronze powder composite bush with PTFE used in high or low temperature
Specifications:
|
Full lines of slide bushings |
SF-1(du) oilless bearing bushing (PTFE Composite) |
|
SF-2 (DX) slide bearing bushing (POM Composite) |
|
|
FB090(FB090G) bronze bushing |
|
|
FB092 bronze bushing |
|
|
JDB,JFB solid graphite lubricating bushing |
|
|
JF bi-metal bushing |
|
|
FU sintered bronze or iron bushing |
|
|
FZ POM/Al/Cu ball cage retainer |
|
|
Ball Transfer Unit |
Description:
1).Good load capacity and anti-wear.
2).It is in high load capacities and low speed with rotational or frequent stop-start motion.
3).It can work for a long time without oil in the condition of boundary lubrication, under oil or grease
lubrication interval and the working-life will be longer.
4).It is machinable for the thicker of PTFE.
Product size:
All sizes of excabator bushing: DU8530, DU9530, DU10035, DU7530, DU6540, DU11035, DU12035,
DU11050, DU10550, DU10050, DU9550, DU11550, DU6530, DU8030, DU4530, DU4030, DU5530,
DU11030, DU12040, DU12035 etc.
Technical Date:
Max load Static: 250N/mm²
Lower Speed: 140N/mm²
Rotating oscillating: 60N/mm²
Max PV (dry running) Short-term operation: 3.6N/mm².m/s
Continuous operation: 1.8N/mm².m/s
Temperature Limit: -195°C~+280°C
Friction coefficient: 0.05~0.20
Max speed Dry running: 2m/s
Hydrodynamic operation > 2m/s
Thermal conductivity: 42w (m.k)-1
Coefficient of thermal expansion: 11x10-6.K-1
Applications:
automotive products line, water engineering, dam gate, plastic industries, successive casting machines,
steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and
injection molding machines
Competitive Advantage:
1. Rich experience for producing different kinds of bushes
2. Plenty machine can offer production capacity
3. Strict quality control plan for the whole production line
4. Testing for every step to assure the quality
5. Clean and tidy workshop

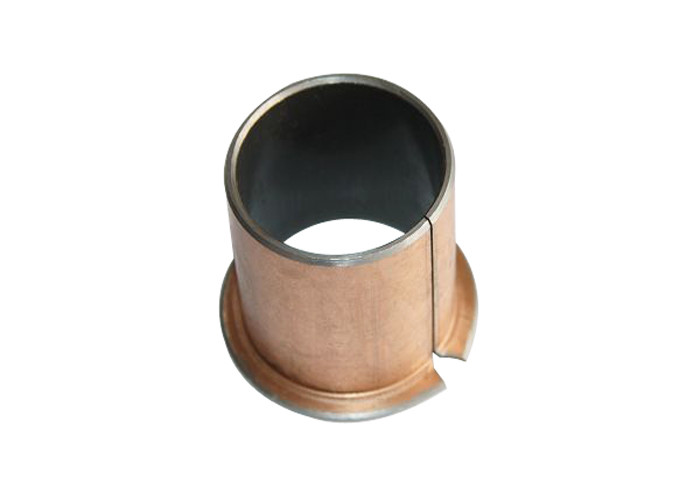

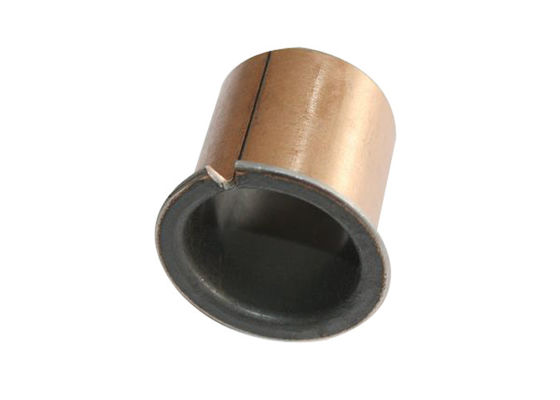

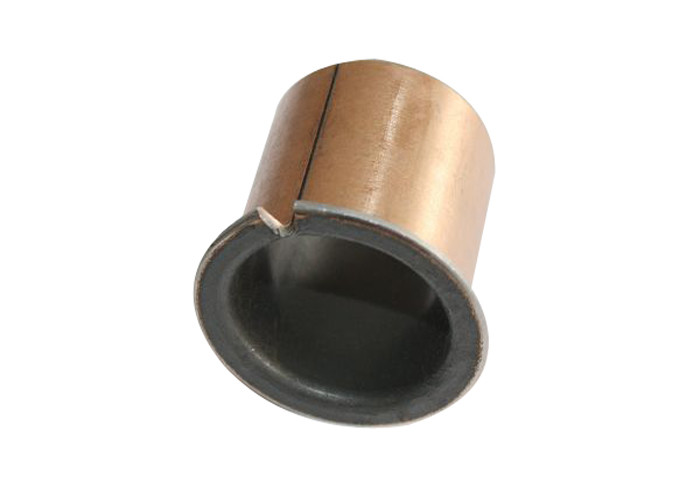

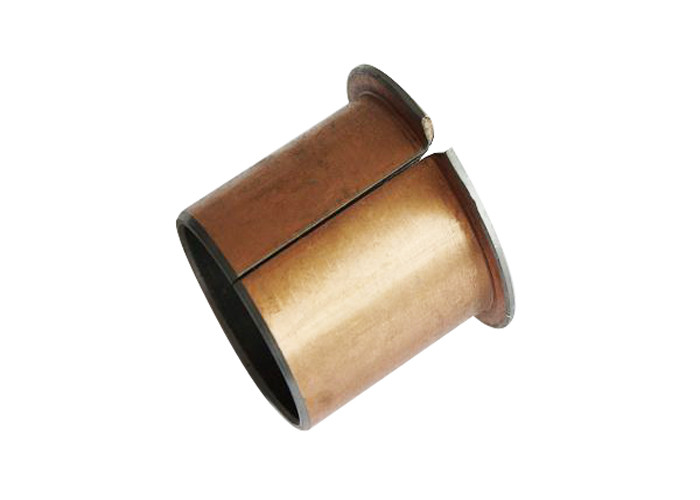

Picture Show
 |
