Ra0.8 Zinc Plating Sleeve Du Bush Bearing 0.003mm For Car Shock Absorber
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | SJ-3 |
| Minimum Order Quantity | 500pcs |
| Price | negotiation |
| Packaging Details | Standard export packing or as customer's requirement |
| Delivery Time | Sample Generally 10 Days And Mass Cargo According To Quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | Bushing | Inner Layer | PTFE |
|---|---|---|---|
| Application | Car Shock Absorber | Technical | Cast, Coat, Sintered, Powder, Wrap |
| Accuracy Of Grinding | +/-0.005mm | Backing Material | Carbon Steel, Stainless Steel |
| Concentricity | 0.003mm | Finish | Bronze-plating Or Tin-plating |
| High Light | Ra0.8 Sleeve Du Bush Bearing,Zinc Plating Sleeve Du Bush Bearing,Du Bush Bearing 0.003mm |
||
Product Description
Roughness Ra0.8 zinc plating Sleeve Du Bushing with ISO9001/TS16949 Quality System
Specifications:
|
Accuracy Of Machining |
+/-0.01mm |
|
Accuracy Of Grinding |
+/-0.005mm |
|
Surface Roughness |
Ra0.8 |
|
Parallelism |
+/-0.005mm |
|
Verticality |
+/-0.005mm |
|
Concentricity |
0.003mm |
Description:
Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics.
Transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement,
high chemical resistance, lower absorption of water and reduced swelling. Also performs well with
lubrication.
Structure
1. PTFE / Fibre mixture thickness 0.01~0.03MM, provides an excellent initial transfer film, which effectively
coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35MM, provides Max thermal conductivity away from the
bearing surface, also serves as a reservoir for the PTFE – fibre mixture.
3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness0.002mm, provides good corrosion resistance.
Tech. Data
Max load Static 250N/mm2
Friction coefficient 0.03~0.20
Very low speed 140N/mm2
Rotating oscillating 60N/mm2 Max
Speed Dry running 2m/s
Hydrodynamic operation >2m/s
Max. PV dry running Short-term
Operation 3.6N/mm2*m/3 Thermal conductivity 42W (m*K)-1
Continuous operation 1.8N/mm2*m/3
Temp. limit -195°C~+280°C
Coefficient of thermal expansion 11*10-6*K-1
Applications:
Mechanical system as auto, truck, tractor and so on which demand sleeve du bushing spare parts
Competitive Advantage:
|
Service |
Production drawing can be supplied within 1 day |
|
Small quantity accept |
|
|
3 hours reply on working time |
|
|
All email can be replied within 24 hours even on weekend |
|
|
Fast delivery |
|
|
Company strength |
Professional high quality OEM factory |
|
Many years experience in this field |
|
|
40% for export and get very good feedback |
|
|
High quality and reasonable price |

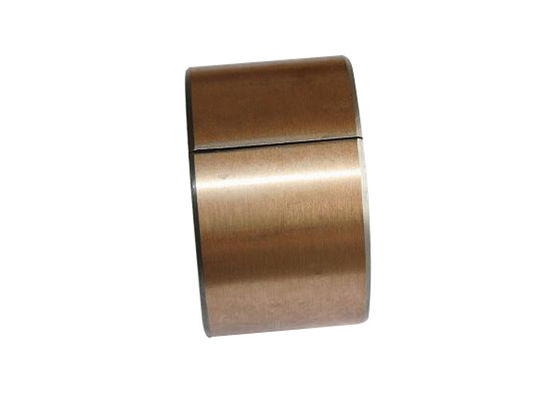

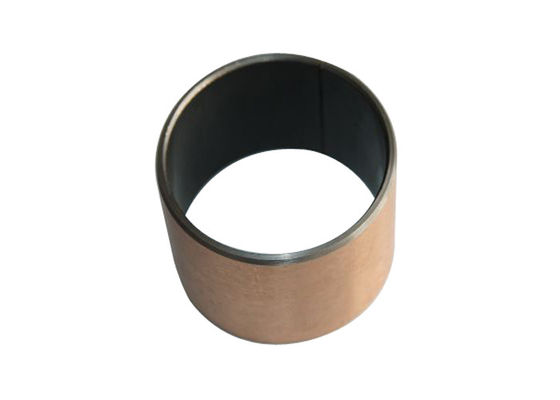

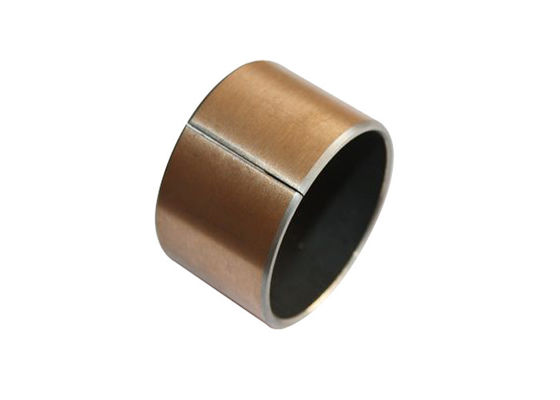

Picture Show
 |
