Copper Alloy Bronze Bearing Graphite Lubricating Oil Free Bushings Ra0.8

Place of Origin China
Brand Name WEIWO
Certification ISO9001:2008
Model Number WW-B0826-4
Minimum Order Quantity 1,023pcs
Price negotiation
Packaging Details Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Time Sample Generally 10 Days And Mass Cargo According To Quantity
Payment Terms T/T, Western Union, L/C
Supply Ability 50,000pcs per month
Product Details
Product Name Bushing Tin Plated Bright White Color
Surface Roughness Ra0.8 Material Of Bands Steel Backing +copper Alloy
Item Model U,DX,FB090,FB092,JDB,SF-1 Inner Layer Bronze CuPb10Sn10,CuSn6.5P
Lubricating Graphite, Carbon, Oilless, POM, PTFE Standard DIN1494,ISO3547,ISO2795
High Light

Ra0.8 Oil Free Bushings

,

Copper Alloy Oil Free Bushings

,

Graphite Lubricating Bronze Bearing

Leave a Message
Product Description

High quality precision Oilless Bushing all Oiles Bronze Bearing,Oil Free Bushings





Characteristics of copper bushing High load capacity Good anti-wearing
Low coefficients of friction
Good heat conductivity
High corrosion resistance
Long life and maintenance-free
No contaminant by oil or grease



Specifications:



SF-1(du) oilless bearing bushing (PTFE Composite)



SF-2 (dx) slide bearing bushing (POM Composite)



FB090 (FB090G) bronze bushing



FB092 bronze bushing



JDB, JFB solid graphite lubricating bushing



JF bi-metal bushing



FU sintered bronze or iron bushing



FZ POM/Al/Cu ball cage retainer



FR metal mesh + PTFE Soft strips



JGB Graphite bearings



Description:



DU bushing is a standard item of our company



DU bearing is also called PTFE bushing, SF-1 oilless bearing, PTFE lined bearing, plain dry bushes, DU bush.



Product Feature



Structure: Bronze Backing + Bronze Sinter + PTFE/PB



1. PTFE/PB mixture 0.01 - 0.03mm, provides an excellent initial transfer film, which effectively coats the mating surface of the bearing assembly, forming an oxide type solid lubricant film.



2. Sintered bronze powder 0.20 - 0.35mm, provides max. Thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE-lead mixture.



3. Bronze backing, gives exceptionally high load carrying capacity, excellent heat dissipation. Have very good corrosion resistance.



Technical data

Max load capacity

Static

250N/mm2

Temp. limit

-195℃~+280℃

dynamic

140N/mm2

Friction coefficient

0.03~0.20

Speed limit

dry

2m/s

Thermal conductivity

42W(m*K)-1

oil

<2m/s

PV limit(dry)

Short time

3.6N/mm2*m/s

Linear expansion

11*10-6*K-1







Availability:



Standard cylindrical bush, flanged bushing, thrust washers and strips are available.



Special designs can be made according to your requirement



Lead free bushing is also available



Applications:



DU bearing is widely Lifting equipment, Hydraulics and valves, pneumatic equipment, medical equipment,



textile machinery, agricultural equipment, construction equipment, material handing equipment, packaging



equipment, automotive field, scientific equipment, drying ovens, office equipment, etc.



Widely used in agricultural machine,construction machine, crane, underpan parts,



conveyor,elevator,winch,plane machine, truck, etc.



Competitive Advantage:



1. A complete set of testing equipment

2. Rich experience in bushing production

3. Good outsource factory

4. Have an audit for material supplier every year

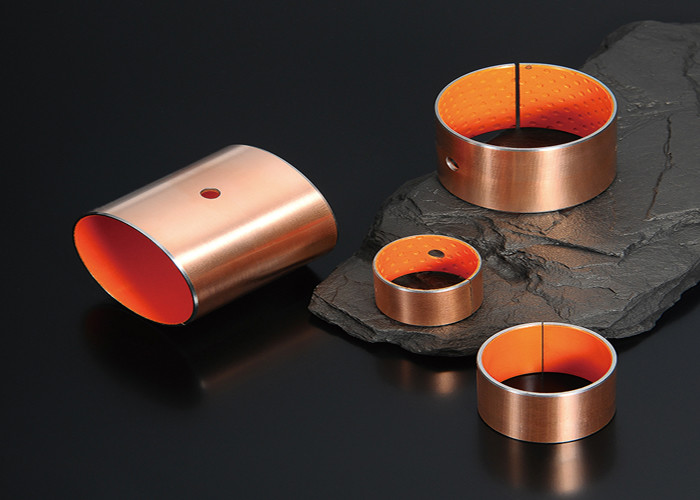

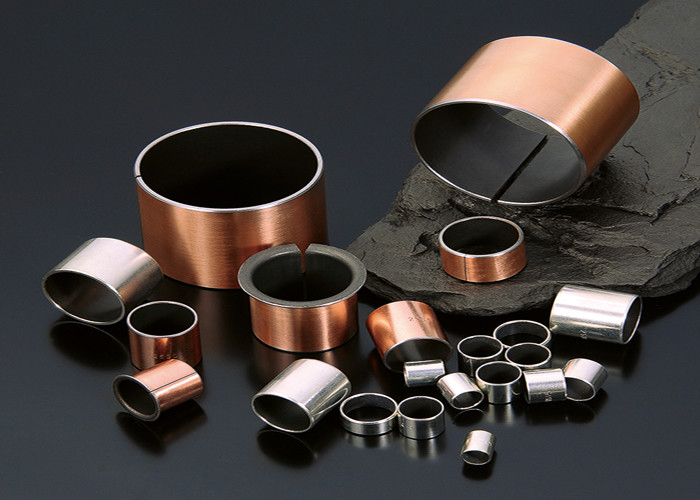

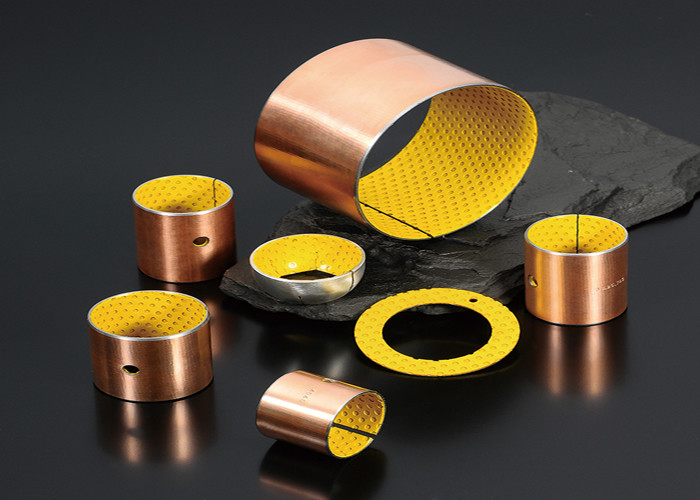

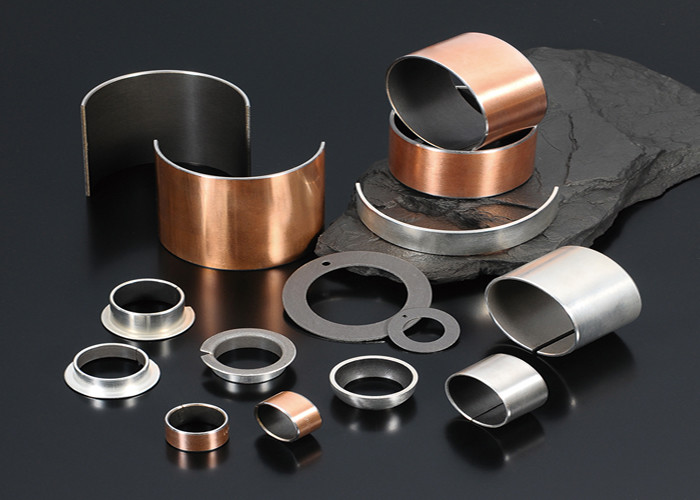

Picture Show
