Oil Free Washer Ptfe Seal Ring Mounted Shock Pistons With Grooves
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | PTFE-J0810-1 |
| Minimum Order Quantity | 2,001pcs |
| Price | negotiation |
| Packaging Details | 500pcs / opp,2,000pcs / carton |
| Delivery Time | one week for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 12,000pcs per day |
Product Details
| Product Name | PTFE Ring | Material | Filled PTFE |
|---|---|---|---|
| Process | CNC Machining | Application | Shock Absorber |
| Thickness | From 0.5 Mm To 10mm | Hardness | 57-61 |
| Elongation @ Break | 300% | Shape | O-Rings,serrated,grooved |
| High Light | oil free ptfe seal ring,shock pistons ptfe seal ring,grooved ptfe o rings |
||
Product Description
Oil-free PTFE Washer Seal Ring Mounted On Piston With Grooves For Shock Pistons
What is piston seal?
Piston seals, also known as piston packings, are mounted on a piston head which moves through the bore of a hydraulic or pneumatic cylinder tube. The inner diameter of the seal is fitted in a static housing/ groove within the piston head. Piston seals can either be single acting seals (designed for pressure from one side only), or double acting seals (designed for pressure from both sides) and are usually used in a sealing system with bearings, which are either incorporated into the seal or separately in additional housings. Sometimes single acting seals are mounted back-to-back on a piston head in separate grooves to provide a double acting arrangement.ect.
O-Ring Features:
1.Good sealing solution, long service life.
2.Easy installation reduces risk .
3.Working in various medium based on different elastomer material.
|
properties |
unit |
result |
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
Tensile strength(min) |
MPa |
15.0 |
|
Ultimate elongation(min) |
% |
150 |
|
Working Temp. |
℃ |
-180~260 |
|
Melting point |
℃ |
327 |
|
Produce Max Temp. |
℃ |
385 |
|
Size |
mm |
20mm~400mm |
Products Name: Custom PTFE ring
Material Comparison: PTFE, Filler PTFE
Application: Industry, Chemistry and so on
Design: By Customer
Processing Method: By CNC Machine
Description:
1) Good quality PTFE ring
2) Different sizes of PTFE washers
3) Different materials of PTFE washers, can add different fillers
4) There are standard and nonstandard products as you request.
5) High quality with low cost and short delivery time.
6) We can do custom order by drawing, sample or draft with your ideas
PTFE rings:
1) Apparent density: 2.10 - 2.30g/cm3
2) Tensile strength: >15.0Mpa
3) Ultimate elongation: >150%
Features of PTFE:
1. Good sealing effect in Dynamic and static sealing
2. Minimal start-up and movement friction, smooth movement even at low speeds, no creeping
phenomenon.
3. Good abrasion.
4. Excellent sliding performance.
5. Easy to install
6. PTFE is anticorrosive, non-toxic, tasteless, and food grade.
Applications:
widely used in mobile hydraulics as sealing solutions, injection molding machines,machine tools, in piston accumulator and also for standard equipment designing,especially a cylinder. ect
Competitive Advantage:
1.Professional spare parts service.
2.A lot of standard sizes in stock.
3.Custom spare parts srevice.
4.Free samples available.
5.Sealing system design.
6.Fast delivery

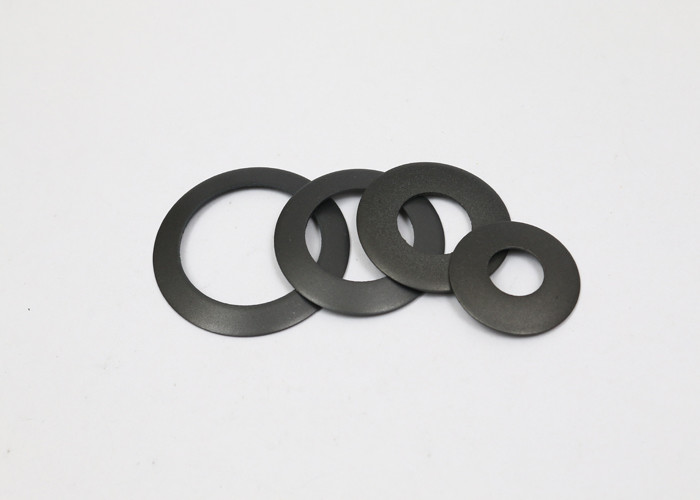

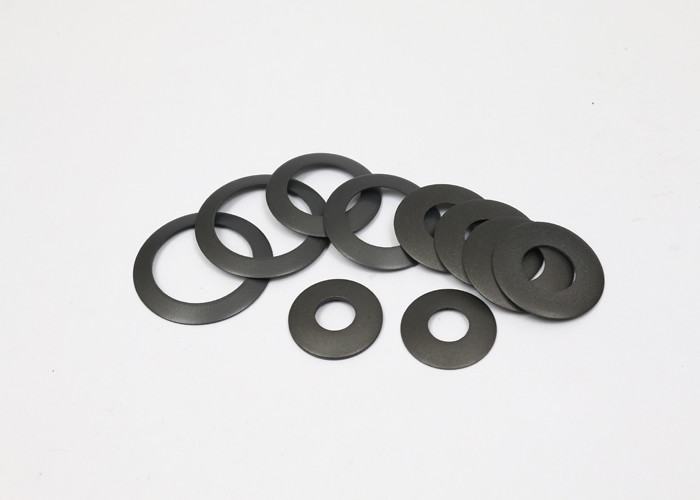

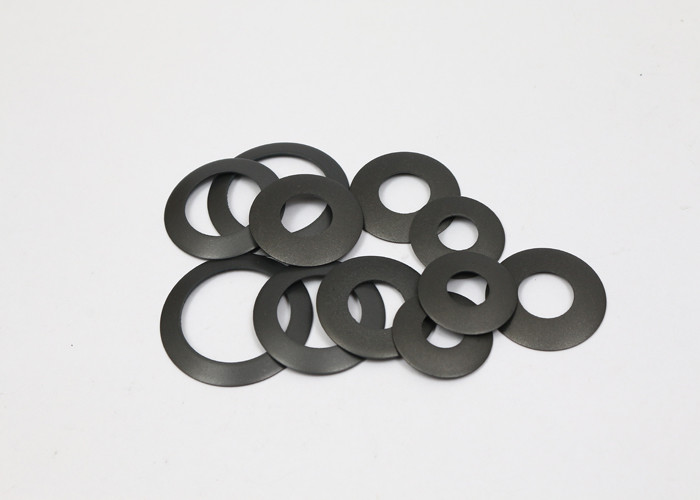

Picture show:
 |
