PTFE Lip Rotary Shaft NBR Oil Seal Shore A85 High Precision
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | IATF16949:2016 |
| Model Number | 12.5*36*5.4/10.5 |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | Standard exporting package |
| Delivery Time | Two weeks for new samples |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20,000pcs per month |
Product Details
| Product Name | Oil Seal | Material | NBR |
|---|---|---|---|
| Tensile Strength | 14.2MPa | Tear Strength | 59.56 |
| Elongation @ Break | 265% | Application | Industry |
| High Light | Rotary Shaft NBR Oil Seal,PTFE Lip NBR Oil Seal,High Precision NBR Oil Seal |
||
Product Description
High Precision PTFE Lip Rotary Shaft NBR Oil Seal Shore A85 With Long Working Life
We are supplying professional oil seals with various types and automotives/tractor /truck/ trailer oil seals. Custom oil seals can be made with customs' request. Oil seal consists of three parts: the seal body, strengthen the skeleton and the self-tightening spiral springs.The role of oil seal of the transmission components in general is in need lubrication components and parts output isolation, and typically used for rotating shaft is a rotary shaft lip seal. It can be divided in the seal, the outer seal, the inner and outer exposed skeleton oil seal.
Specifications:
| ITEM | SPEC | TEST METHOD | RESULT |
| MAIN LIP | ø11.1±0.30 | PROJECTOR | 11.052-11.088 |
| DUSTPROOF LIP | ø11.5±0.30 | PROJECTOR | 11.440-11.528 |
| OD | ø26+0.25/+0.15 | CALIPER | 26.18-26.23 |
| HEIGHT (1) | 8.5±0.20 | CALIPER | 8.37-8.43 |
| HEIGHT (2) | 11±0.30 | CALIPER | 10.83-10.94 |
Properties of Different Rubber Materials
| NBR |
|
| EPDM |
|
| PU |
|
Description:
Our company is specialized in producing shock absorber parts: oil seal, Piston, Rod Guide, base valve, piston rod, valve disc, stamping parts and
other sinter parts.
Equipment Advantages:
Automatic Hydraulic Machines
Automatic Mechanical Pressers
Vacuum Furnaces
Sintering furnace
CNC tooling machine
Properties:
| ITEM | SPEC | RESULT | STANDARD | |
| Shore A | 80±5 | 82 | GB/T531.1 | |
| Tensile strength | ≥10MPa | 16.92 | GB/T528.2 | |
| Elongation @ break | ≥125% | 198 | ||
| Compression deformation | Max+25 | 20 | GB/T7759 | |
| 100℃ * 70 h Sample B type | ||||
| air oven aging test | Hardness change point | 0～+10 | +3 | GB/T3512 |
| Tensile strength change rate | Max-20 | 5 | ||
| Elongation @ break change rate | Max-40 | -10 | ||
| oil resisitant 100℃ * 70 h (IRM901) | Hardness change point | -5～+10 | +3 | GB/T1690 |
| Volumn change rate | -10～+5 | -3 | ||
| oil resisitant 100℃ * 70 h (IRM903) | Hardness change point | -20～0 | -12 | GB/T1690 |
| Volumn change rate | 0～+35 | 20 | ||
| Brittleness Temperature | ≤-40℃ | -45℃ | GB/T1682 | |
| Rubber standard: HG/T2810-2008 WA8533 | ||||
We can also produce different valve seat with different dimensions.
Some dimensions of compression valve seat are below:
|
ØD |
ØD1 |
ØD2 |
Ød |
H |
H1 |
H2 |
h |
|
28 |
23.8 |
22.1 |
16 |
11 |
4.3 |
2.5 |
3 |
|
29.8 |
25.8 |
22.1 |
16 |
11.5 |
4.3 |
2.5 |
3.5 |
|
33 |
28.3 |
22.1 |
16 |
15 |
7.3 |
3 |
4 |
|
34 |
29.1 |
22.1 |
17 |
16 |
9.5 |
3.5 |
4 |
|
35 |
30.8 |
22.1 |
16 |
15 |
7.3 |
3 |
4 |
Sintered Parts
1. Professional Fe/Cu based powder metallurgy parts manufacturer
2. Process flow: Mixing--Compacting--Sintering--Re-sizing--ultra sonic cleaning--vacuum oiling--Packing
3. High precision, low noise, wear resistance, energy saving, environment protection, high efficiency and low cost.
4. High quality guarantee: electronic balance to ensure density, test equipments to ensure crushing
strength, QC and PQC to ensure close tolerance and accurate dimension.
5. Design ability: Developed different models of gear, bearing, bushing, structural parts etc.
can produce according to drawings or samples.
Applications:
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts
6. Tool Parts
Competitive Advantage:
1.we produce rubber products with best production capacity, best quality control and service.
2.we can design according to the requirements of the customer.
3.we can open our mold according to the requirements of our customers.
4. we can offer you a high quality and reliable price.
5. we can provide you with a good after sales service.
6. delivery in time. Small orders are welcome.

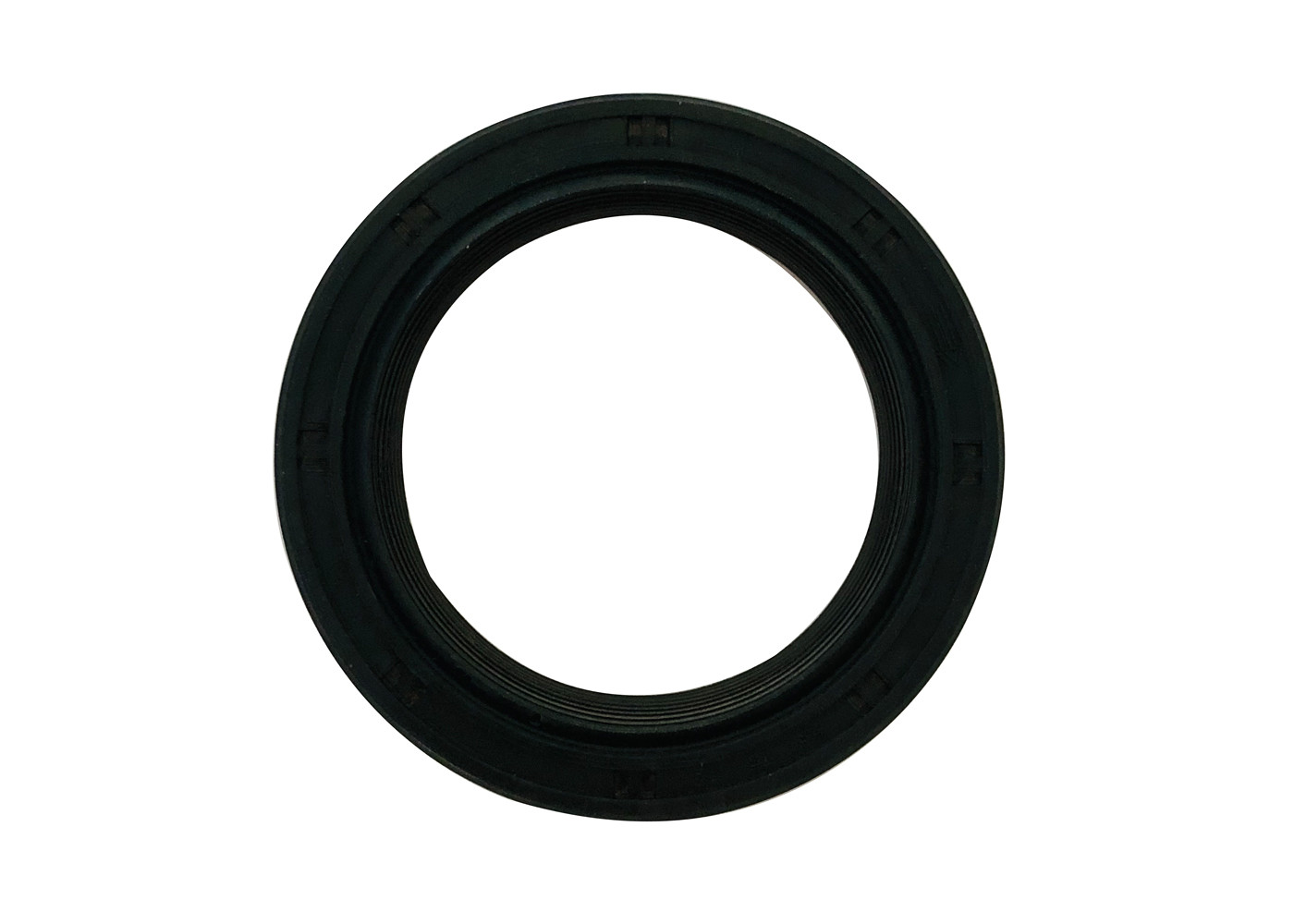

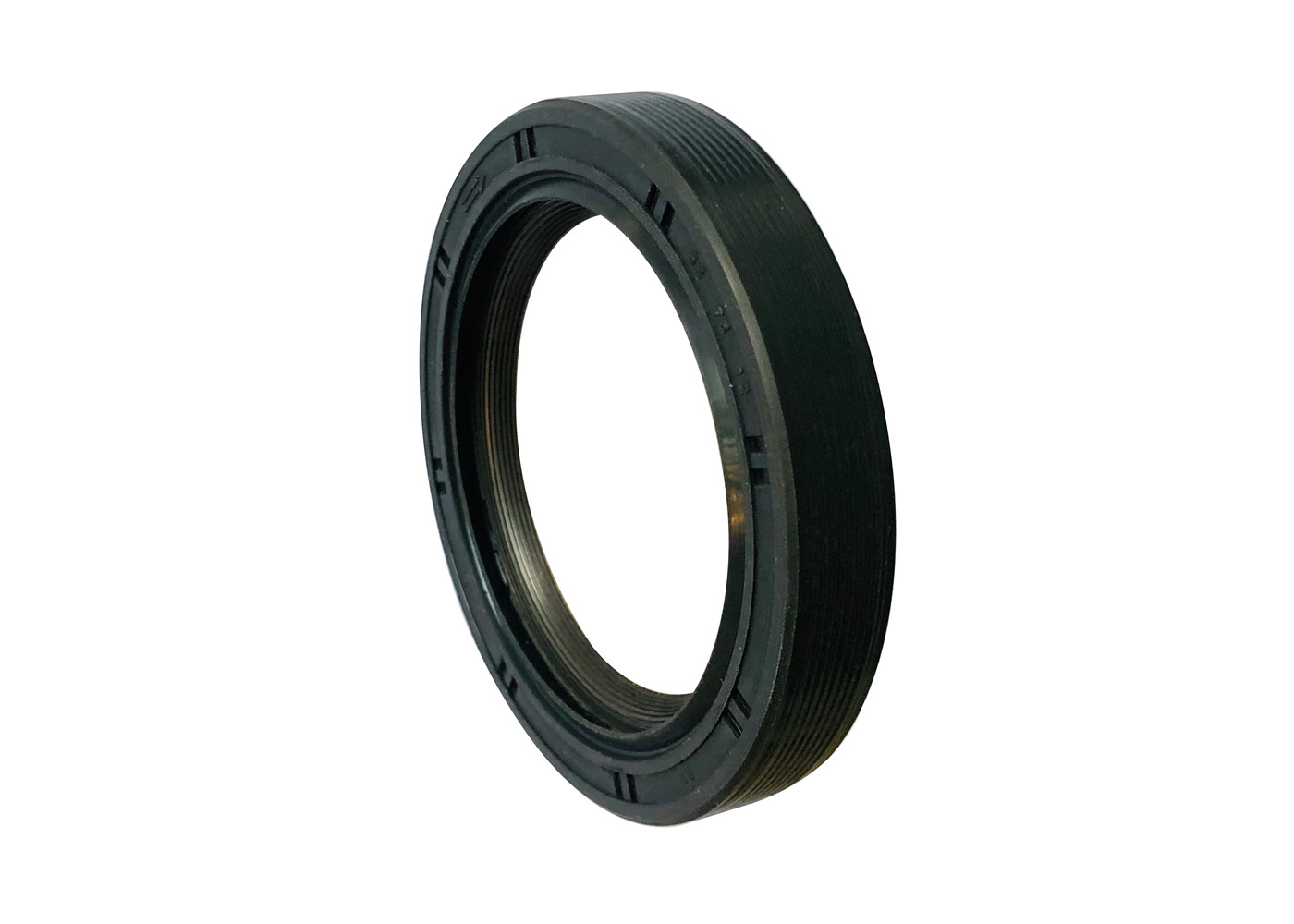

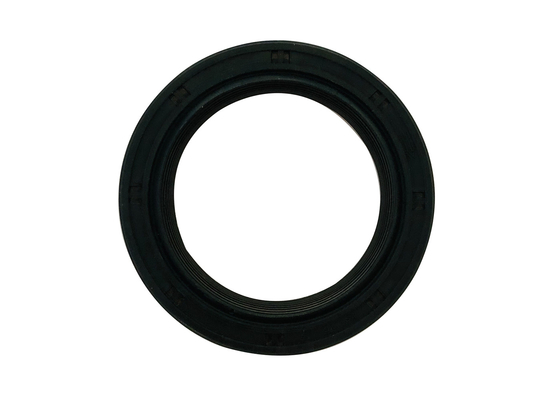

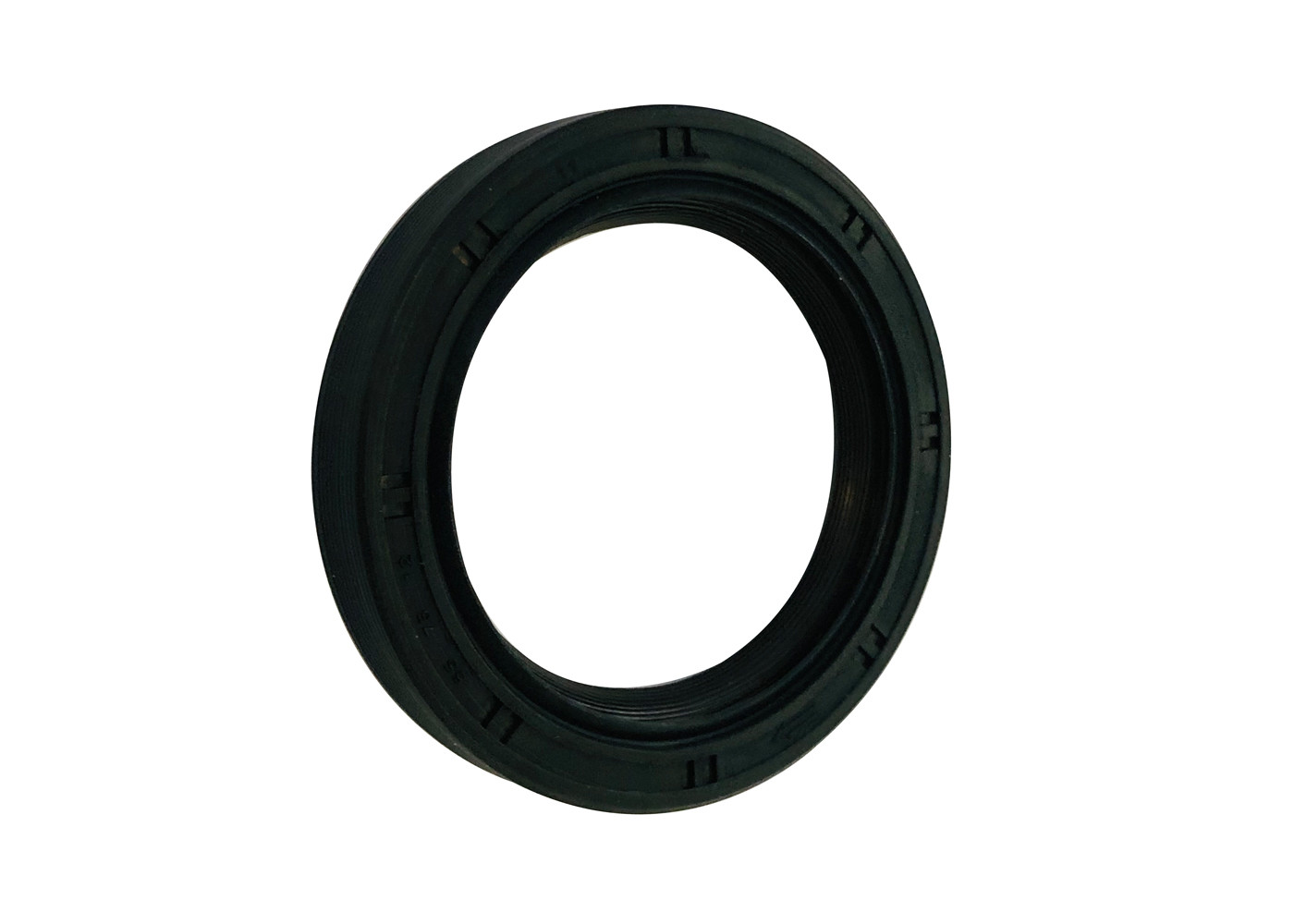

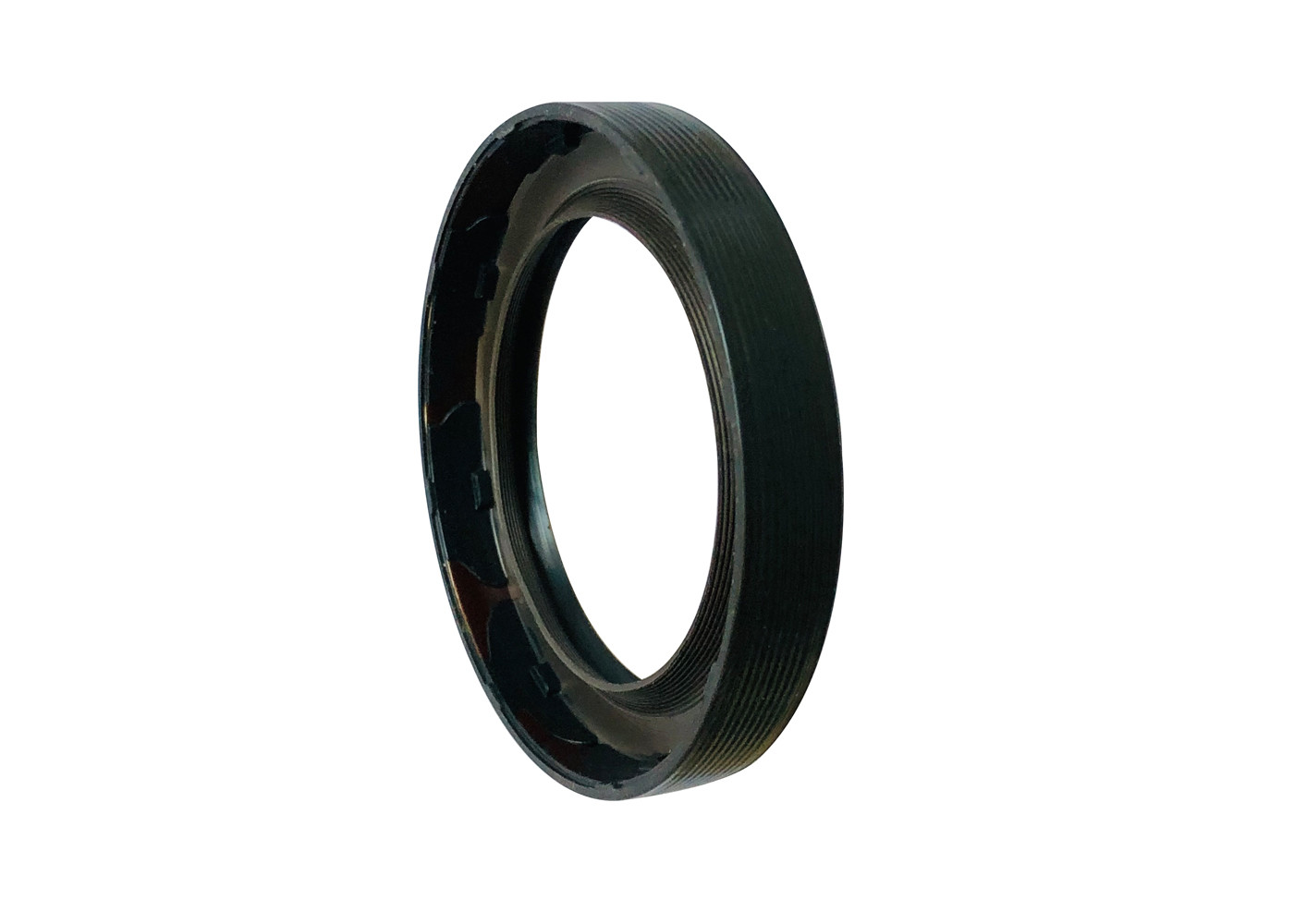

Picture show:
 |
|
