Punch Machine 15 MPa PTFE Sealing Strip For Shock Absorber Pistons

Place of Origin China
Brand Name WEIWO
Certification ISO9001:2008
Model Number Customized PTFE bands
Minimum Order Quantity 1,000pcs
Price negotiation
Packaging Details Packed in plastic bag, then in carton with standard export package
Delivery Time two weeks for new samples
Payment Terms T/T, Western Union, L/C
Supply Ability 150,000pcs per month
Product Details
Product Name PTFE Bands Material PTFE Plus Filler
Application Shock Absorber Compression Ratio 16.7%
Rebound Rate 47% Mold Time 10days
Length Customized Production Punch Machine
High Light

Punch machine PTFE bands

,

15 MPa Sealing strip

,

shock absorber PTFE Sealing strip

Leave a Message
Product Description

 Black PTFE Ring bands with carbon fiber of good lubrication and seal for shock absorber pistons


Specifications:

properties

unit

result

Apparent density

g/cm3

2.10-2.30

Tensile strength(min)

MPa

15.0

Ultimate elongation(min)

%

150

Working Temp.

-180~260

Melting point

327

Produce Max Temp.

385

Size

mm

20mm~400mm


Material: PTFE filled with carbon fiber

Size: 116*8*1.2

Color: black

Shape: can be customized

Package detail: poly bag + carton box

Delivery time: 10 days

Payment terms: T/T, LC and others

Description:

PTFE guide strip that cut into wear ring is to guide the piston and piston rod of a hydraulic cylinder,

absorbing transverse fore. At the same time, it prevents metal to metal contact, optimizing the

performance of the sealing system.

PTFE is a superior sealing material. It is clean and non-sticking. You can use it for food industry. It can

work up to 260 C. It can work at PH 0-14.

it can be processed into film, block or any shape. We make various PTFE products:

Gasket/Ring/Sheet/Rod/Tubing/PTFE thread seal tape and so on.

Advantages:

It has a low coefficient of friction. PTFE can work together with other materials like fiberglass or copper to

get a better mechanical property. When PTFE is expanded properly, the fiber changes from hair-like

structure to a web-like structure and become much stronger while it is much lighter.

1. Suitable for dry use (depending on the load).

2. Very good temperature resistance.

3. Compatible with most of the fluids in contact.

4. Easy assembly, low friction coefficient.

Applications:

1. Automotive Part

2. Motorcycle Part

3. Industrial parts

4. Hydraulic cylinders

5. Pneumatics, Presses

6. Injection molding machines

Competitive Advantage:

Professional manufacturer for many years

Quality control and cost control

Short delivery

Factory price

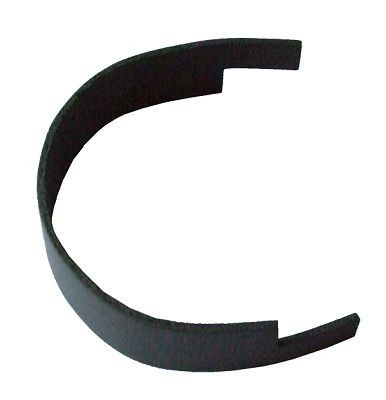

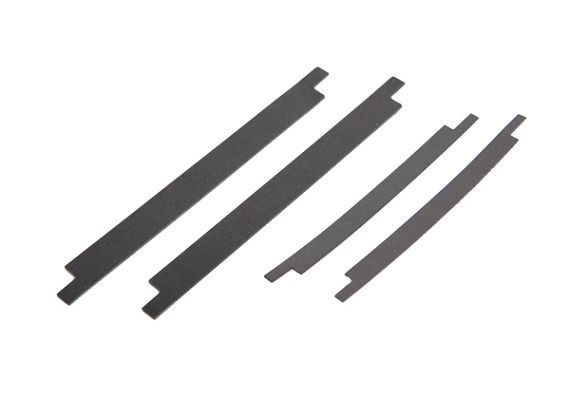

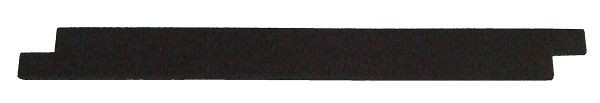

Picture Show


Punch Machine 15 MPa PTFE Sealing Strip For Shock Absorber Pistons 0
