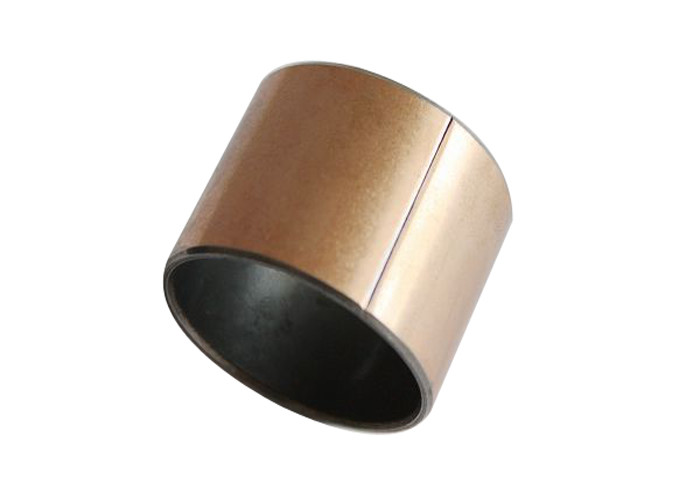

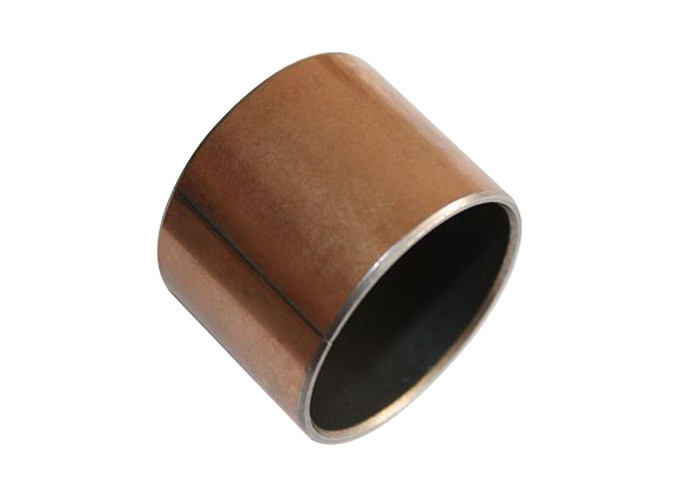

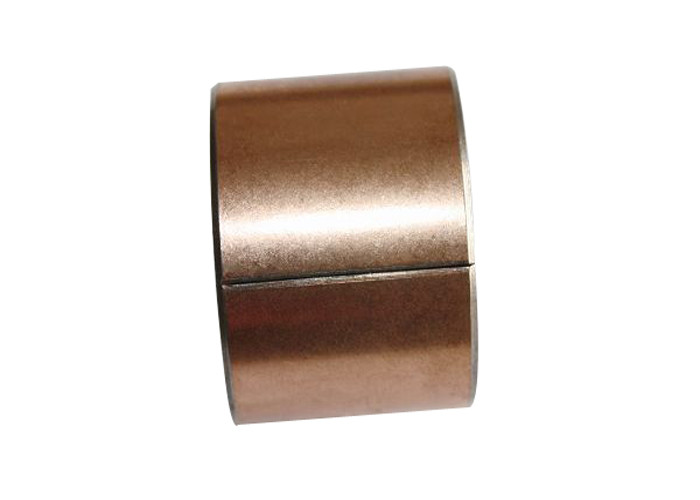

Industrial Equipment Sleeve DU Oilless Sliding Bushing PTFE 18W/MK
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | SF-1 series |
| Minimum Order Quantity | 1,000pcs |
| Price | negotiation |
| Packaging Details | 1. Print mark logo, Anti-rust oil 2. Plastic films, Plastic bag or paper box 3. Carton + Pallet |
| Delivery Time | Ten working days depend on order quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | BUSHING | Application | Industrial Equipment |
|---|---|---|---|
| Bush Type | Sleeve | Temperture Limit | -195~270 |
| Friction Coefficient | 0.05~0.25µ | Material | Steel And Bronze |
| Static Load | 250N/mm2 | Dry Lubrication | 2.8N/mm2.m/s |
| High Light | DU Oilless Sliding Bushing,18W/MK Sliding Bushing,Sleeve PTFE Oilless Bushing |
||
Product Description
DU oilless sliding bushing with PTFE and steel backing thermal conductivity 13-18 W/MK
Specifications:
|
Full lines of slide bushings |
SF-1(du) oilless bearing bushing (PTFE Composite) |
|
SF-2 (dx) slide bearing bushing (POM Composite) |
|
|
FB090(FB090G) bronze bushing |
|
|
FB092 bronze bushing |
|
|
JDB,JFB solid graphite lubricating bushing |
|
|
JF bi-metal bushing |
|
|
FU sintered bronze or iron bushing |
|
|
FZ POM/Al/Cu ball cage retainer |
|
|
Ball Transfer Unit |
|
Part name |
du bushing |
|
Material |
Steel backing + Sintered bronze + PTFE |
|
Appearance |
Tin or Copper plated |
Description:
Boundary Lubrication Bushing is composed of three layers: steel backing, sintered bronze layer and
modified POM layer. It fits well for low speed, high load, normally temperature occasions with rotational,
oscillating or frequent stop-start motion. It can work long time under boundary lubrication circumstances, if
oil or grease is add, its working life can be prolonged further.
Technical data
Max.Load:Static:250N/mm²,Dynamic:140N/mm²
Max.Speed:Dry:2m/s,Lubrication:>2m/s
Max. PV (Dry):Short-tem:3.6N/mm²*m/s, Continuous:1.8N/mm²*m/s
Temp.:-195~+280
Friction coefficient: 0.03~0.20
Thermal conductivity: 42W (m*K)-1
Coefficient of thermal expansion: 11*10-6*K-1
1. Recommended for applications involving intermittent operation or boundary lubrication...
2. Automotive: suspension joints, kingpin assemblies and stub axles of tucks, automobile driving joint
hinges, steering and other linkages, articulation joints, rear chassis hinges, fairleader rollers
3. Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in presses
4. Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front
axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters
5. Especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.
Applications:
Printing presses, textile machines, hydraulic carrier, tobacco machine, medical machinery, micro-motor,
automobiles and motorcycles
Competitive Advantage:
|
Our services |
Sample order is available |
|
Small order is acceptable |
|
|
Customized is available as per drawing or sample |
|
|
After-sale service |
Goods quality following |
|
Accept feedback and solve the problem |
|
|
Regular return visit |
Picture Show
 |
