Bronze Sliding Du Bush Bearing With PTFE Assembled On Pistons
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Customized lined piston |
| Minimum Order Quantity | 500pcs |
| Price | negotiation |
| Packaging Details | wrapped by paper each by each and put into standard carton |
| Delivery Time | two weeks for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | PTFE Bushing Ring | Bushing Layer | PTFE |
|---|---|---|---|
| Application | Car Shock Absorber | Style | Sealing Ring |
| Size | Customized | Outer Diameter | 25mm |
| Coefficient Of Friction | 0.05-0.10 | Material Of Bands | Bronze Steel |
| High Light | Bronze Sliding Du Bush Bearing,Bronze Sealing ring Du Bush Bearing,PTFE Assembled On Pistons Du Bearing |
||
Product Description
Good sliding du bearing with bronze and PTFE material assembled on pistons
Specifications:
1. DU bushing Bearing
2. Full range of size and customized
3. High quality OEM manufacturer with much experience
4. ISO 9001 certified
Description:
Dry Bushing Bearing PTFE, Sliding Bush Composite Bushing with PTFE, DU Bushing Sliding Plane Bushing
DU Bush is made of three layer composite material. This type of self lubricating bearing is also called DU
Bushes, DU Bearing, DU bushing bearing, DU sleeve bushing, PTFE bushing Bearing, PTFE coated
bearing bushing, PAP P10 Bushing bearing and etc
Material: Steel + Sintered bronze + PTFE
Other material can be made based on your requirement
Features of DU Bushes:
Maintenance-free
No lubrication required (PTFE composite)
Minimum wall thickness, minimum space requirements
Accommodation of heavy loads
Wide range of temperatures
Good sliding properties
High wear resistance
Packaging Detail:
1. Anti-rust oil or tin plating
2. Rolled by high quality plastic paper or put into plastic bag
3. Plastic bag outside rollers
4. Good quality cartons
5. Pallet or wood case for every 8ctns/12ctns/18ctns
6. Detail information label
Technic Properties:
| Load capacity |
140N/MM2 |
|
TEMPERATURE |
-200-280°c |
|
Speed Limit |
2m/s |
|
Friction coefficient |
0.08-0.20 |
|
PV limit (dry) |
3.8N/mm2 m/s |
Applications:
Car or motorbike shock absorber
Competitive Advantage:
We are professional company which produces different size and design bushing and bearings.
We have a complete set of testing equipment which can control the quality for the material.

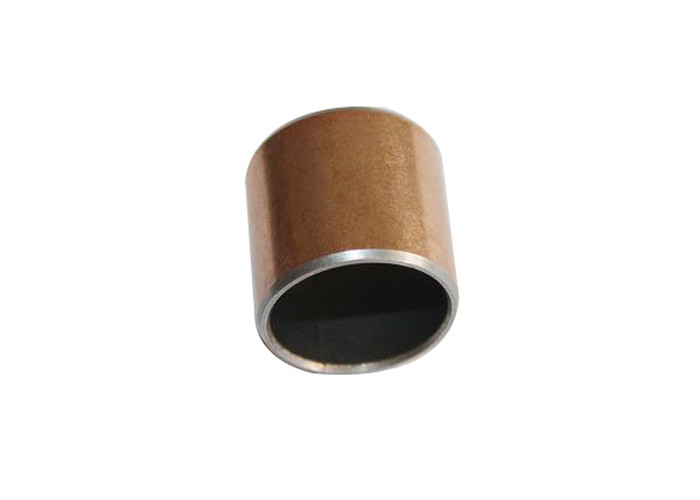

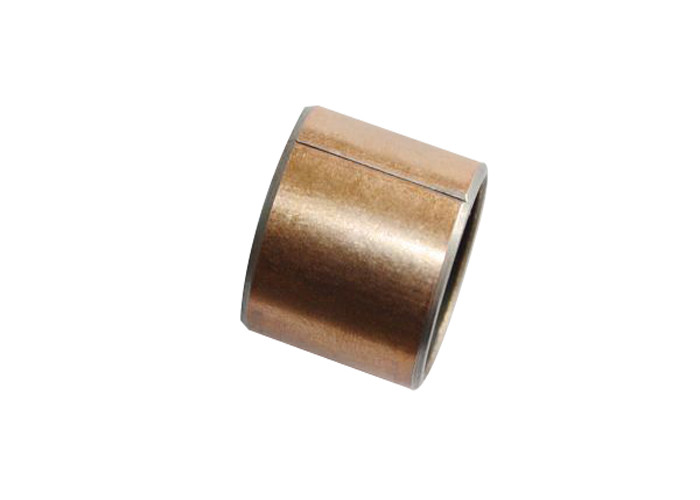

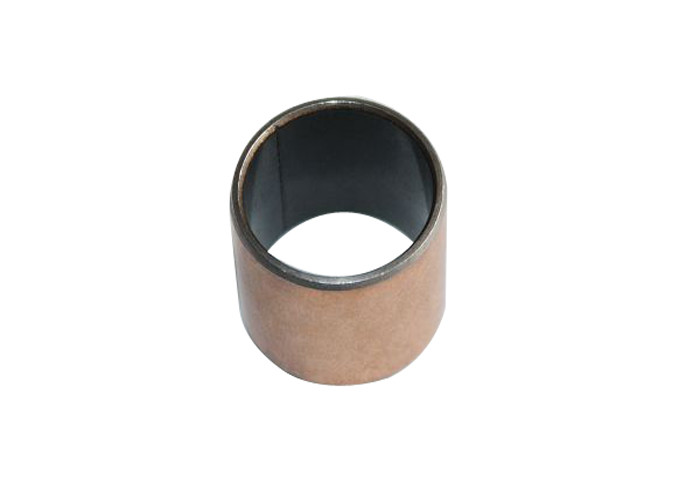

Picture Show
 |
