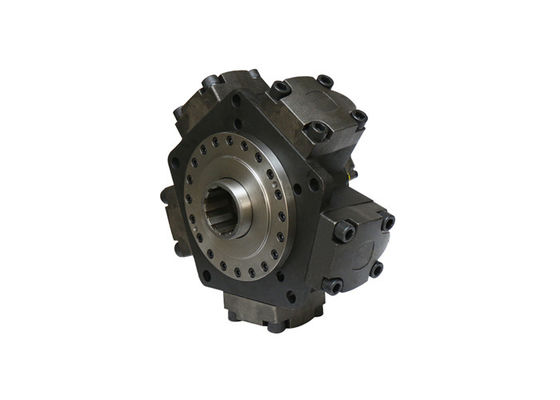

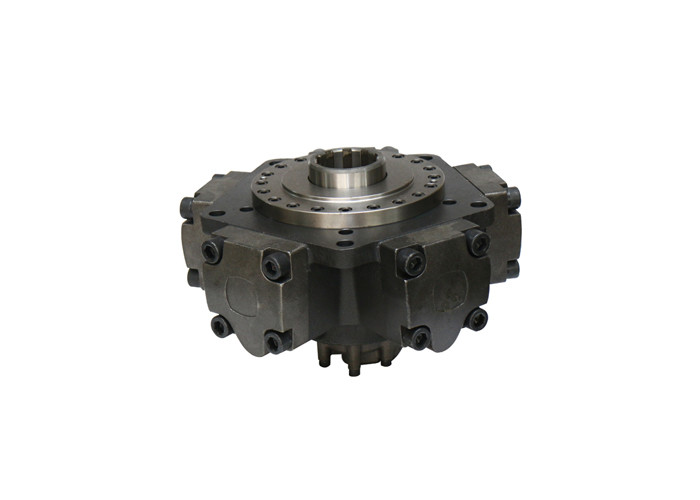

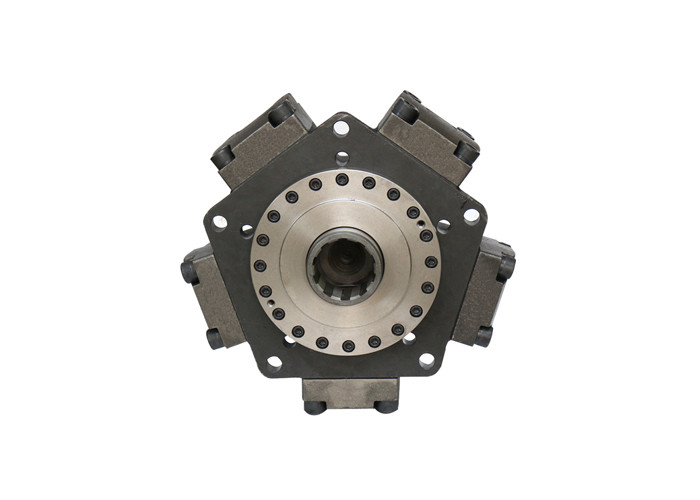

Aerial Work Platforms Hydraulic 630rpm Radial Piston Motor 25MPa

Place of Origin NINGBO,CHINA
Brand Name WEIWO
Certification ISO9001:2008
Model Number NIM6-450
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Standard Export Wooden Case
Delivery Time 7-15 working days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
TYPE PISTON MOTOR COLOR CUSTOMIZED
SPEED 5-630rpm TORQUE 1600-1700
RATED PRESSURE 25MPa MAX PRESSURE 32MPa
High Light

25MPa radial piston hydraulic motor

,

630rpm Radial Piston Motor

,

Aerial Work Platforms Radial Piston Motor

Leave a Message
Product Description

Part Name: Hydraulic Radial Piston motor



Applications:

Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.

Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,

Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,

Industry: process, paper, foundry, food.

Marines: fishing, harbor,

Transportation: material, heavy duty, on-highway.

Technical parameters:

Model

Displacement

mL/r

Pressure MPa                      Torque Speed range    rpm Weight
Kg
Rated pressure Max pressure Rated torque
N.m
Unit theoretic torque
N.m/MPa
NIM6-450 452 25 32 1672 67 5-630

57.5

Notes:

1. The recommended filtration accuracy is 25 microns.

2. The viscosity is 15-1000 cSt, can ensure good performance.

3. The leakage port shall be connected to the oil tank separately. maximum pressure of the housing is 0.1Mpa, improved housing can bear 3-5Mpa.

4. The highest horizontal position of the leaking pipe should be higher than that of the motor housing to prevent emptying the oil in the motor housing.

5. Motor housing must be filled with hydraulic oil to prevent damage for the first start.

6. Motor can be installed arbitrarily, installation bracket must have enough rigidity. During installation, you should ensure that the output shaft and the connection drive shaft are concentric. Keep the cleanliness of the connection oil port, do not allow any foreign matter to enter.

7. Reduce the radial, axial load for output shaft which can make the hydraulic motor life extension.

Dimension drawings:

Aerial Work Platforms Hydraulic 630rpm Radial Piston Motor 25MPa 0

Aerial Work Platforms Hydraulic 630rpm Radial Piston Motor 25MPa 1

Aerial Work Platforms Hydraulic 630rpm Radial Piston Motor 25MPa 2

Aerial Work Platforms Hydraulic 630rpm Radial Piston Motor 25MPa 3

Aerial Work Platforms Hydraulic 630rpm Radial Piston Motor 25MPa 4

Aerial Work Platforms Hydraulic 630rpm Radial Piston Motor 25MPa 5

Performance curve:

Aerial Work Platforms Hydraulic 630rpm Radial Piston Motor 25MPa 6
