Cast Steel 25MPa Crusher Slewing Drive Motor
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | D301PL1 series |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| TYPE | Rotary Reducer | COLOR | CUSTOMIZED |
|---|---|---|---|
| STRUCTURAL STYLE | Plunger Type | SUITABLE MEDIUM | HYDRAULIC OIL |
| WORKING PRESSURE | 25MPa | RATED TORQUE | 1750 N.m |
| High Light | Crusher slewing drive motor,25MPa Slewing Drive Motor,slewing drive Crusher motor |
||
Product Description

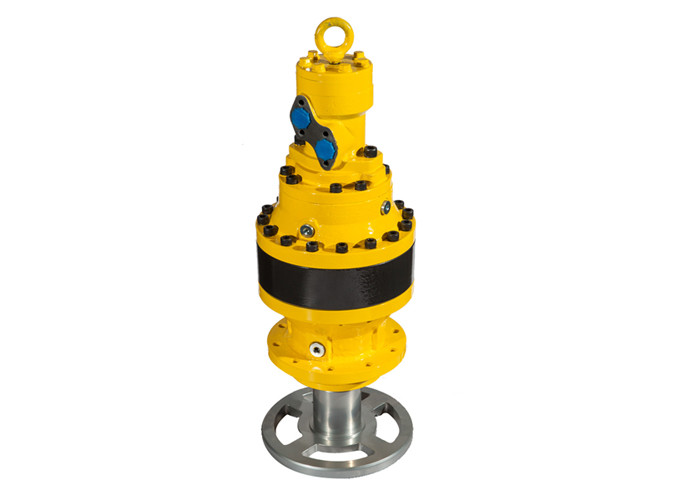

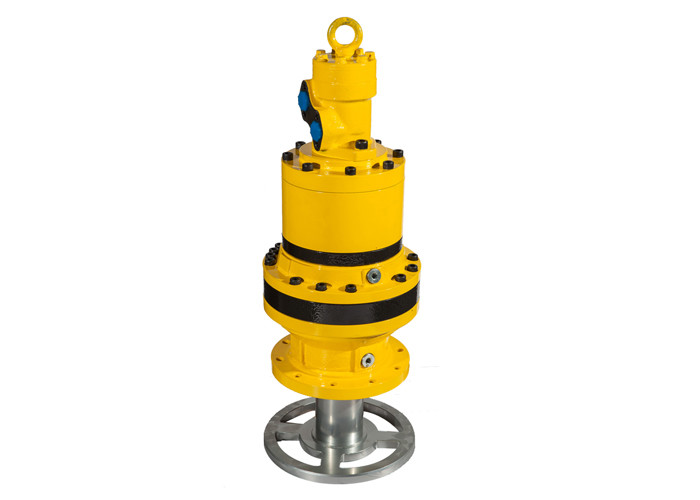

Part Name: Cast Steel Low Speed Slewing Drive Motor Used In Crusher
Part Model: D301PL1 series
Especially used in crusher
Applications:
Cement pump truck, marine machinery, crusher rotation, port, mining, agriculture, forestry, metallurgy and other machinery hydraulic transmission.
| Brand | WEIWO | Model | D301PL1 |
| Structural style | Plunger type | Load type | Radial motor |
| Transmission ratio | 3.5-3.8 | Working pressure | 25MPa |
| Speed type | Low speed | OEM | YES |
| Pump spindle position | Horizontal type | Drive mode | Mechanical engineering |
| Material | Cast steel | Rated torque | 1750 |
| Interval torque | 2100 | Speed range | 5-50 |
| Hydraulic motor | BMR series | Brake torque | 2300 |
| Recommend output gear | M=6 Z=14 X=0.5 | Weight | 45KG |
Features: hydraulic motor, brake, multistage reducer, output shaft and hydraulic control system design idea, with standard cargo ship compatibility, compact structure, large torque, small size, light weight, easy installation, high reliability.
Detail drawings without brake:
 |
Detail drawings with brake:
|
Output shaft form:
|
