Aircraft Loading Equipment High Torque Motor 500RPM Speed 25MPa

Place of Origin NINGBO,CHINA
Brand Name WEIWO
Certification ISO9001:2008
Model Number NIM8-600
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Standard Export Wooden Case
Delivery Time 7-15 working days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
SPEED 4-500rpm TORQUE 2100-2300
High Light

25mpa high torque electric motor


500rpm high torque motor


trenching high torque motor

Leave a Message
Product Description

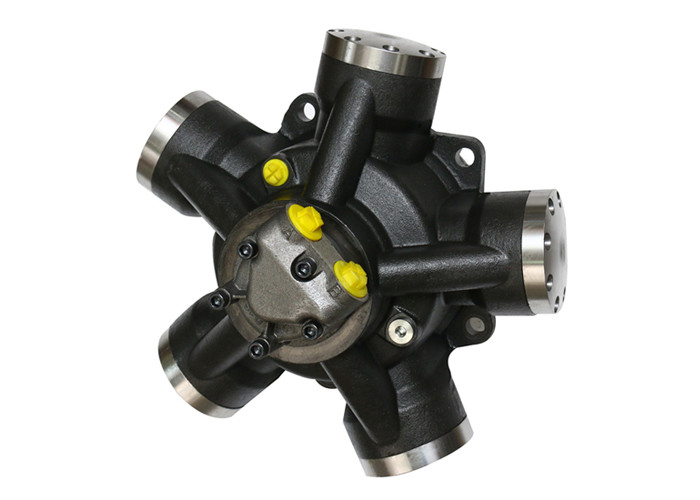

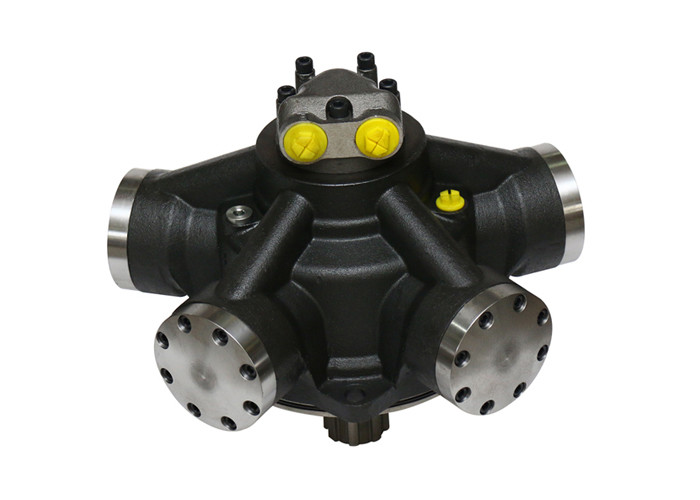

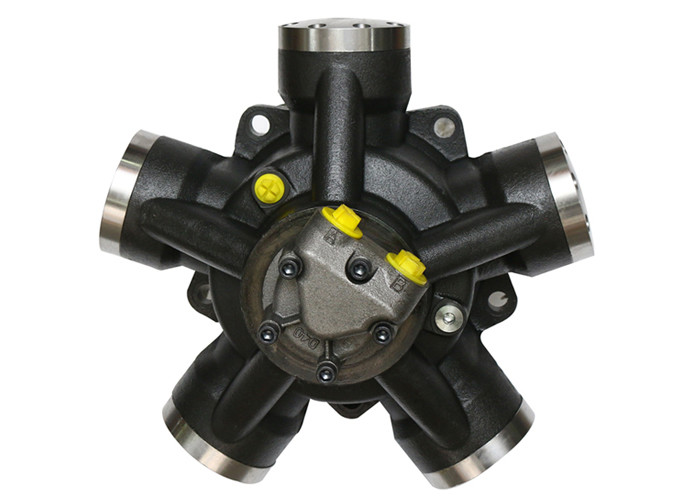

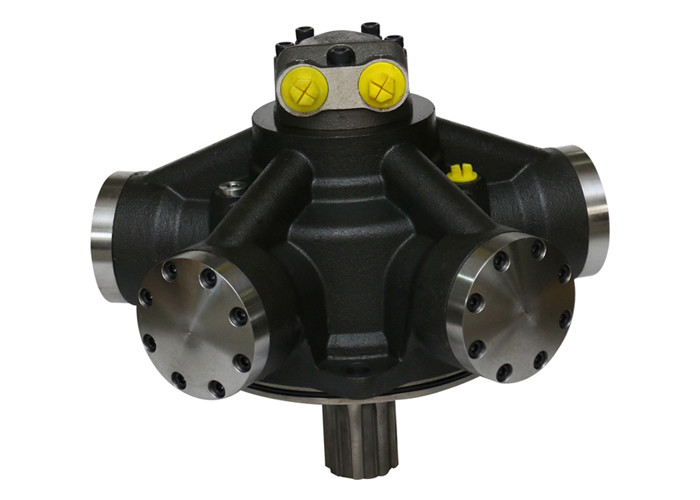

Aircraft Loading Equipment High Torque Motor 500RPM Speed 25MPa



1. High torque low speed fixed displacement radial piston hydraulic motors

2. Consists of 13 frame sizes ranging ,capacity ranges from 50 to 11,600cc/rev.

3. The rugged, well proven design incorporates high efficiency, combined with good breakout torque and smooth running capability.

4. We also produce dual and continuously variable displacement motors.


1. High torque at low speed.

2. High efficiency.

3. Smooth running.

4. Wide range of displacements to suit specific applications.

5. Displacements change with ease when the motor is running.

6. Electro-hydraulic or hydro-mechanical control methods available.

7. Various mounting options available


Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.

Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,

Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,

Industry: process, paper, foundry, food.

Marines: fishing, harbor,

Transportation: material, heavy duty, on-highway.

Technical parameters:

Model Displacement mL/r Pressure MPa Torque

Speed range




Rated pressure Max pressure Rated torque N.m Unit theoretic torque N.m/Mpa
NIM8-600 617 25 32 2282 91 4-500 72

Working characteristics of hydraulic motor:

(1) In general working conditions, inlet and outlet pressure of hydraulic motor is higher than atmospheric pressure, so there is no suction energy problem like hydraulic pump. However, if the hydraulic motor is operating under pump conditions, its oil inlet should have a minimum pressure limit to avoid cavitation.

(2) Motor should be able to run forward and backward. Therefore, hydraulic motors are required to have structural symmetry when designed.

(3) Actual working pressure difference of hydraulic motor depends on the magnitude of load torque, when the driven load has a large moment of inertia, high speed, and requires rapid braking or reversal will produce a higher hydraulic impact, for this reason, safety valve and buffer valve should be set in the system.

(4) As internal leakage is inevitable, there will still be a slow skid when braking by closing the oil discharge port of the motor. Therefore, when precise braking is needed for a long time, a brake to prevent skid should be set separately.

(5) Some forms of hydraulic motors must have enough back pressure at the oil return port to ensure normal operation, and the higher the speed, the greater the back pressure is required, the higher the back pressure means the low utilization rate of oil source pressure, and the large loss of the system.

Our service:

1. We offer 24 hour online technical support to help our customer choose the pump they need and solve any techincal problem occured when using the pump.

2. We offer 18 month warranty time for our hydraulic pump. Should any quality problem occurs during warranty time, we will provide spare parts to our customers for charge free.

Our package:

1. We use wooden case that can endure long time sea shipment. Our package can prevent products from damaged during shipment at maximum extent.

2. We also have professional forwarder who not only offer competitive price in freight but also provide fast custom clearance service to our customers.

Dimension drawings:

Aircraft Loading Equipment High Torque Motor 500RPM Speed 25MPa 0

Aircraft Loading Equipment High Torque Motor 500RPM Speed 25MPa 1

Aircraft Loading Equipment High Torque Motor 500RPM Speed 25MPa 2

Properties curve:
