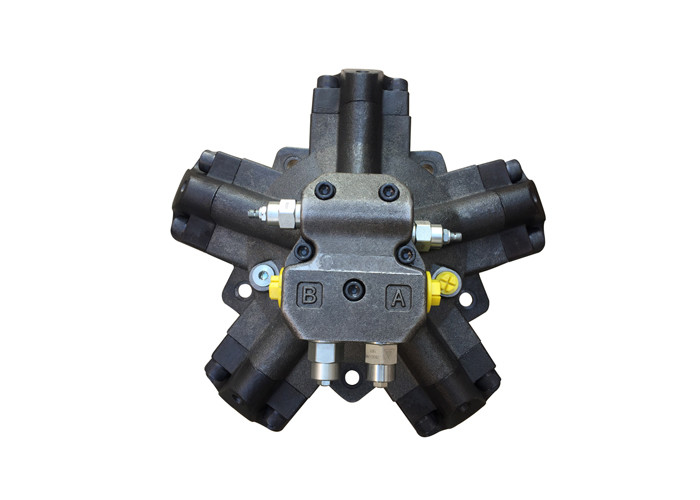

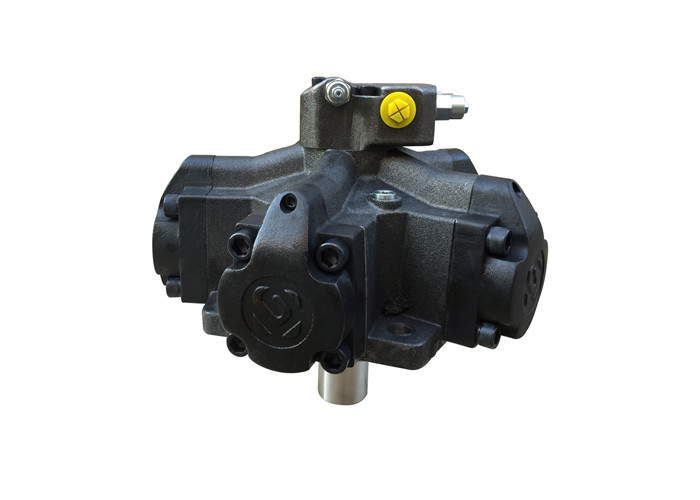

7098 N.M Piston Five Star Motors With Standard Spline
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | NIM24-3150 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| TYPE | PISTON MOTOR | COLOR | CUSTOMIZED |
|---|---|---|---|
| SPEED | 1-200RPM | RATED TORQUE | 7098 N.m |
| RATED PRESSURE | 16MPa | WEIGHT | 200 KG |
| High Light | 200RPM small piston motor,16MPa Five Star Motors,Standard Spline Five Star Motors |
||
Product Description
Part Name: High Accuracy And Low Noise Five Star Motors with Standard Spline
Especially used in petroleum coal mine, plastic machinery
Scope of application:
Mining, construction, engineering machinery, lifting transport equipment, metallurgy, marine machinery, geological drilling and all kinds of mechanical hydraulic transmission.
Technical Parameters:
|
Model |
Displacement mL/r |
Pressure MPa |
Torque
|
Speed r/min |
Weight Kg |
||
| Rated pressure | Max pressure |
Rated torque N.m |
Unit theoretical torque N.m/MPa |
||||
| NIM24-3150 | 3137 | 16 | 20 | 7098 | 443 | 1-200 | 200 |
Product features and advantages:
• good reliability, long service life, up to 96% mechanical efficiency and 95% theoretical starting torque
• highly customizable
• outstanding volume efficiency: up to 99%
• very low working noise
• smooth rotation at very low RPM (minimum speed: 0.5-1rpm)
• high accuracy of position control
• good resistance to temperature shock
• wide operating temperature range
• wide range of working fluids
• operating mode reversible
• full range of parking brakes available
Product precautions
(1) filtration: normal industrial filtration accuracy is recommended to be 25μm, and 75μm is allowed for low pressure, low speed or clearance conditions.
(2) before the first start, housing of motor must be filled with hydraulic oil to prevent damage.
(3) strictly ensure the cleanliness of the connection oil port, and do not allow any solid foreign matter to enter.
(4) reduce the radial and axial loads on the output shaft of the hydraulic motor, which can prolong the life of the hydraulic motor.
(5) the motor should avoid running under pump condition.
Detail installation drawings and performance curves:
|
|
 |
|
|
