Density 2.14 PTFE Ring Gasket Produced By Automatic Machine For Seal Components

Place of Origin China
Brand Name WEIWO
Certification ISO9001:2008
Model Number WW-PTFE1011K
Minimum Order Quantity 1,000pcs
Price negotiation
Packaging Details strapping with a plastic bands, 200pcs per string
Delivery Time one week for new samples
Payment Terms T/T, Western Union, L/C
Supply Ability 100,000pcs per month
Product Details
Product Name PTFE Gasket Material Filled PTFE
Production Machine Automatic Pressing Application Shock Absorber
Color Black Net Weight 1.08g
Molding 7 Days Out Diameter 34mm
High Light

ptfe piston rings

,

teflon backup rings

Leave a Message
Product Description

Density 2.14 PTFE ring gasket produced by automatic machine for seal components



PTFE that is PTFE, chemical structural formula is as follows, widely used as self-lubricating material with



low friction coefficient and good wear resistance.



Physical properties smooth surface, waxy, ivory and opacity,average density is 2.2
Mechanical properties tensile strength is 20.0~30.0MPa,elongation at break is 300%~400%,modulus of elasticity is 400 MPA, surface hardness is 55-70HS,friction coefficient between PTFE is 0.1-0.2
Chemical properties can resist most strong corrosive material, no solvent can’t dissolve it under 300℃,strong weather ability, can store more than ten years



Different Filler’s influence:

Density 2.14 PTFE Ring Gasket Produced By Automatic Machine For Seal Components 0



Specifications:

Material

Filled PTFE

Color

Black

High and low temperature resistance

-200 - 260°C

Processing

Machine by mold

Dynamic friction coefficient

0.2-0.3



1. Low water absorption



2. Corrosion resistance



3. Temperature resistance



4. High diaphaneity



5. Voltage resistance



Description:



1. Good tensile strength



2. High insulation



3. Best corrosion-resistant



4. Low friction



5. Abrasion resistance



PTFE has a wide range of practicable temperature from -180 ~ 260°C and a wax-like surface to which



anything hardly sticks. PTFE has the lowest coefficient of friction of all known solid materials. It has the



best electrical properties of all plastics.



Industry Application:



Pipe coupling fittings



Valve disc/plate/bushing/sleeve



Insulators/electric components



Pipe connectors/impeller/gasket



Medical device parts



Code No.

Additive

%

Modification

Application

WWGF-15

WWGF-20

WWGF-25

Glass fiber powder

15

20

25

Anti-abrasion, low friction, electrical environment and creep-resistant

Bearing, gasket, valve seat, liner and other mechanical and electronic use

WWG-15

Graphite

15

Anti-corrosion, low friction and creep-resistant

Mechanical and chemical anti-corrosion

WWB-60

Bronze powder

60

Creep-resistant, low friction and heat conductivity

Plunger ring, supporting gasket and other bearing mechanical use

WWC-20

WWC-20(S)

Hard carbon

Soft carbon

20

Creep-resistant, low friction, other application in water and liquid media

Sealing ring, filler and bearing, etc.



Applications:



Molded PTFE PTFE rod can be used as lining, seal components, wire isolation, slide block, gasket, seal, dielectric material, etc.



Competitive Advantage:



1. Good service: We treat clients as friends



2. Good quality: We have strict quality control system. Good reputation in the market



3. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008



4. Fast and cheap delivery: We have big discount from forwarder(Long Contract)

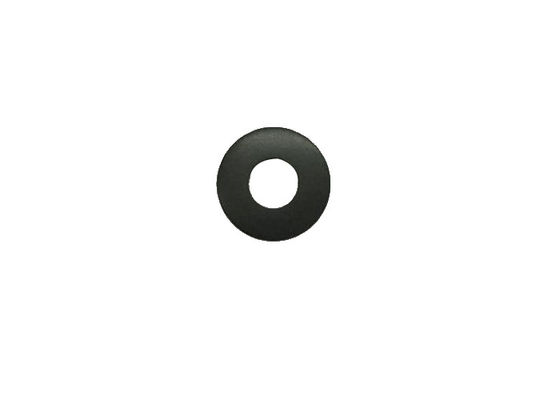

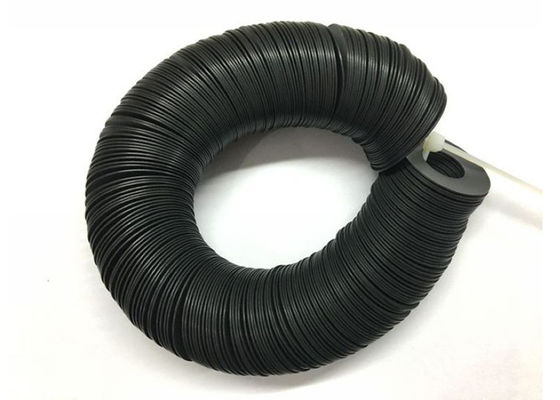

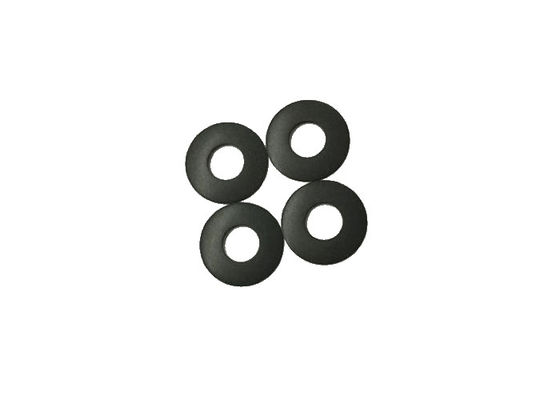

Picture show:

Density 2.14 PTFE Ring Gasket Produced By Automatic Machine For Seal Components 1



Density 2.14 PTFE Ring Gasket Produced By Automatic Machine For Seal Components 2
