MoS2 Filled PTFE Ring Gasket With Good Lubrication And 13 Hours Sintering
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Customized PTFE ring |
| Minimum Order Quantity | 1,000pcs |
| Price | negotiation |
| Packaging Details | Packed in plastic bag, then in carton with standard export package |
| Delivery Time | one week for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 100,000pcs per month |
Product Details
| Product Name | PTFE Gasket | Material | Pure Or Filled PTFE |
|---|---|---|---|
| Production Machine | Automatic Pressing | Application | Shock Absorber |
| Density | 2.17g/cm3 | Hardness | 57-61 |
| Color | White Or Black | Out Diameter | Customized |
| High Light | ptfe piston rings,teflon backup rings |
||
Product Description
MoS2 filled PTFE ring gasket with good lubrication and 13 hours sintering
Specifications:
|
properties |
unit |
result |
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
Tensile strength(min) |
MPa |
15.0 |
|
Ultimate elongation(min) |
% |
150 |
|
Working Temp. |
℃ |
-180~260 |
|
Melting point |
℃ |
327 |
|
Produce Max Temp. |
℃ |
385 |
|
Size |
mm |
20mm~400mm |
1. Low water absorption
2. Corrosion resistance
3. Temperature resistance
Description:
Filled PTFE gasket used in shock piston, precision tolerance on OD and ID
Material: PTFE filled with carbon fiber
Size: D32XD15X0.60
Style: seal gasket
Shape: can be customized
Package detail: poly bag + carton box
Delivery time: 10 days
Payment terms: T/T, LC and others
Use temperature: -100~250 °C
Use pressure: 5Mpa
Application data:
|
inspection item |
Unit |
Data |
|
Bulk density |
g/cm3 |
1.90(±0.10)-for sheet; 2.30(±0.20) for PTFE seal |
|
Pressure Limit |
Bar |
40 |
|
Temperature Limit |
|
260 |
|
PH Range |
|
0-14 |
|
PTFE Seal thickness |
MM |
0.5(±0.10)/side |
|
Gasket Thickness |
MM |
2(±0.10) or as customers' request |
Applications:
It is widely used as flange sealing to joint where strong acid or alkaline or other corrosive media exist or
high purity is required.
Competitive Advantage:
1. Good quality: We have strict quality control system. Good reputation in the market
2. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008
3. Fast and cheap delivery: We have big discount from forwarder(Long Contract)
4. Can produce according to customers’ drawings
5. Advanced production equipment
6. Complete set of inspection equipment

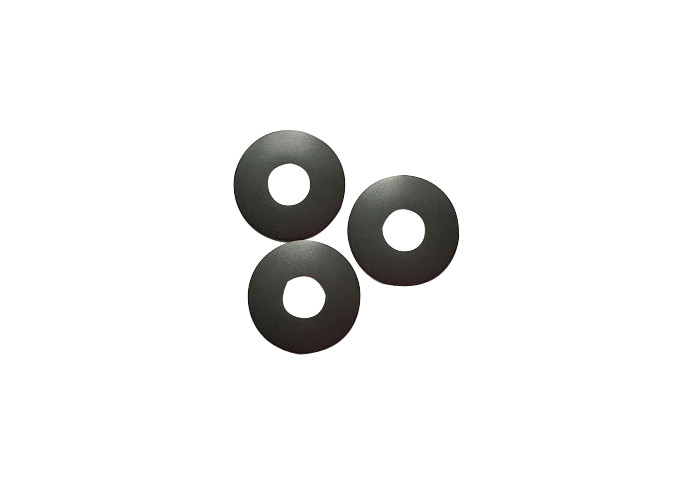

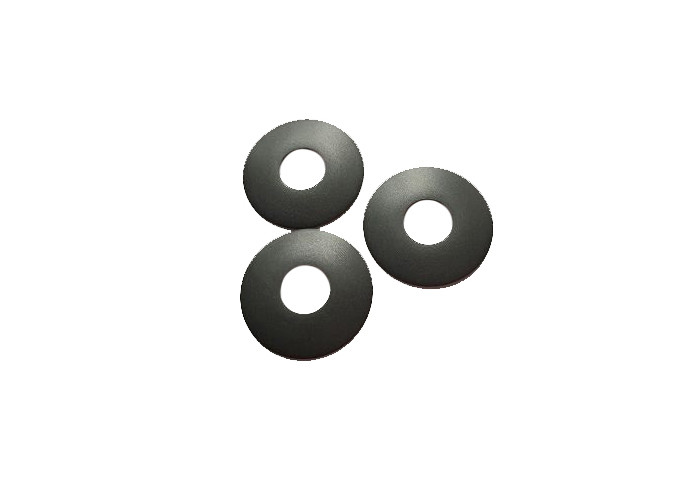

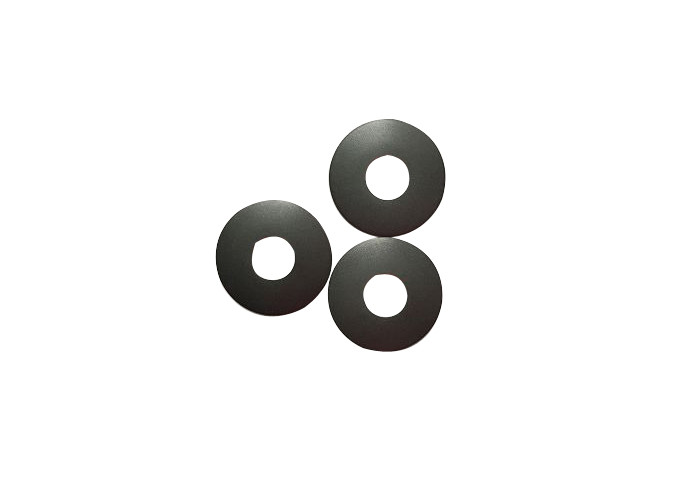

Picture show
