Carbon filled PTFE gasket sheet ring disc can band sinter piston for shock absorbers
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Filled PTFE ring |
| Minimum Order Quantity | 1,000pcs |
| Price | negotiation |
| Packaging Details | strapping with a plastic bands, 200pcs per string |
| Delivery Time | one week for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 100,000pcs per month |
Product Details
| Product Name | PTFE Gasket | Material | Filled PTFE |
|---|---|---|---|
| Production Machine | Automatic Pressing | Application | Sinter Piston |
| Density | 2.17g/cm3 | Net Weight | 1.05g |
| Molding | 7 Days | ||
| High Light | teflon ring seal,teflon backup rings |
||
Product Description
Carbon filled PTFE ring disc can band sinter piston used in shock absorbers
Specifications:
|
properties |
unit |
result |
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
Tensile strength(min) |
MPa |
15.0 |
|
Ultimate elongation(min) |
% |
150 |
|
Working Temp. |
℃ |
-180~260 |
|
Melting point |
℃ |
327 |
|
Produce Max Temp. |
℃ |
385 |
|
Size |
mm |
20mm~400mm |
1. Low water absorption
2. Corrosion resistance
3. Temperature resistance
Description:
PTFE Oil Seal
Various size available
Performance: high and low temperature-resistant
Corrosion-resistant
High insulation
PTFE (PTFE) oil seal includes internal and external frame steel, main and auxiliary PTFE lip, sealant,
gaskets and cover rubber.
Excellent performance:
High and low temperature-resistant, corrosion-resistant, high-lubricating, high insulation
PTFE can work together with other materials like fiberglass or copper to get a better mechanical property.
When PTFE is expanded properly, the fiber changes from hair-like structure to a web-like structure and
become much stronger while it is much lighter.
Application:
It is used for seal of engine crankshaft, detection machine, gear-box and oil resistant seal for other
machine. It can be also used to seal water, alkali, acid, corrosion according to the client's special
requirement.
Our PTFE range includes:
Gaskets/Piston Seals/Rod Seals/Wipers/Bearing Strips/Spring Activated Seals/Rod
Back up Rings & Strips/Ropes
Applications:
Automotive, Transportation, Filling Machinery, Food Machinery, Oil exploitation, Sanitary plumbing,
Medical Machinery, Textile machinery, Mining machinery, Exercise equipment etc.
Competitive Advantage:
1. Good quality: We have strict quality control system. Good reputation in the market
2. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008
3. Fast and cheap delivery: We have big discount from forwarder(Long Contract)

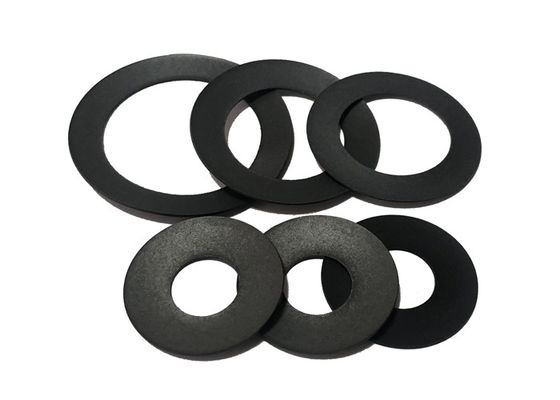

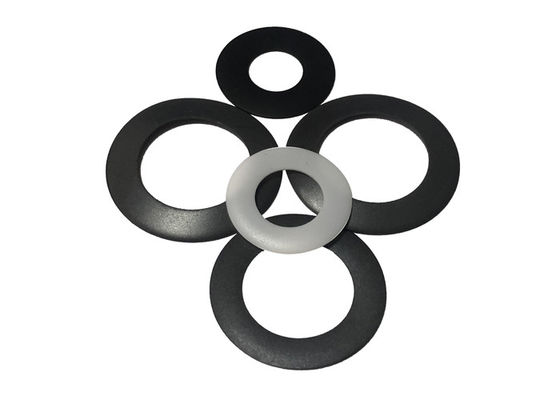

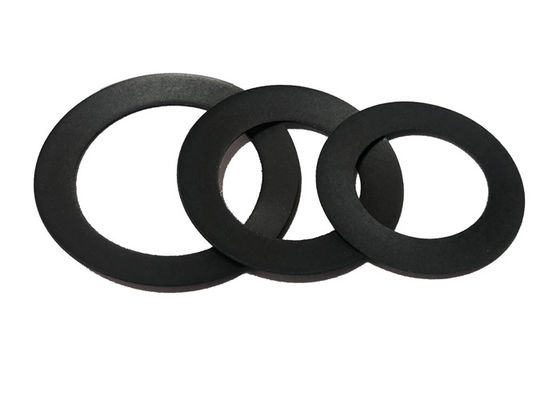

Picture show:
