Punch Machine Sealing Element 2.16g/Cm3 PTFE Band For Shock Absorber
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Customized PTFE bands |
| Minimum Order Quantity | 1,000pcs |
| Price | negotiation |
| Packaging Details | Packed in plastic bag, then in carton with standard export package |
| Delivery Time | two weeks for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 150,000pcs per month |
Product Details
| Product Name | PTFE Bands | Material | PTFE Plus Filler |
|---|---|---|---|
| Application | Shock Absorber | Color | Black |
| Hardness | 57-61 | Tensile Strength | More Than 14MPa |
| Length | 116mm | Production | Punch Machine |
| High Light | Shock Absorber PTFE Band,ISO Punch Machine Sealing Element,carbon fiber filled PTFE Band |
||
Product Description

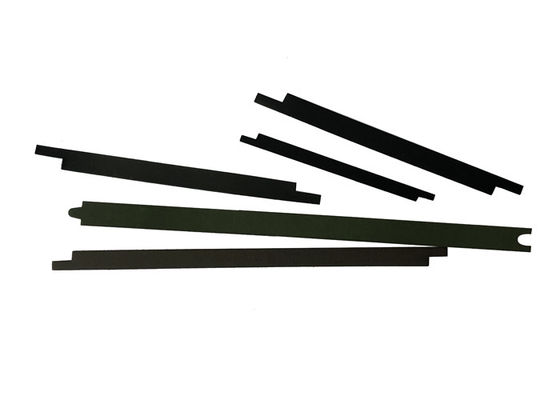

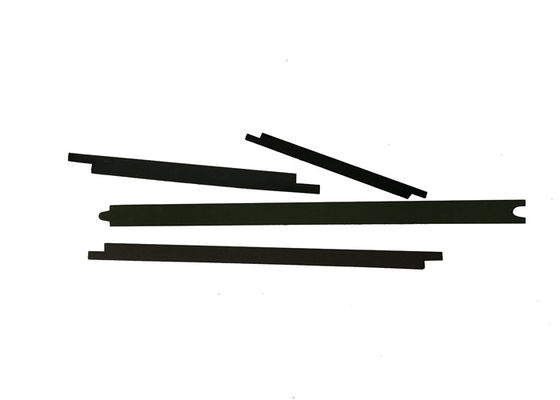

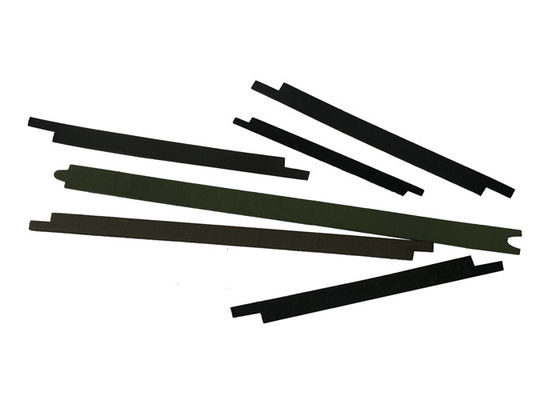

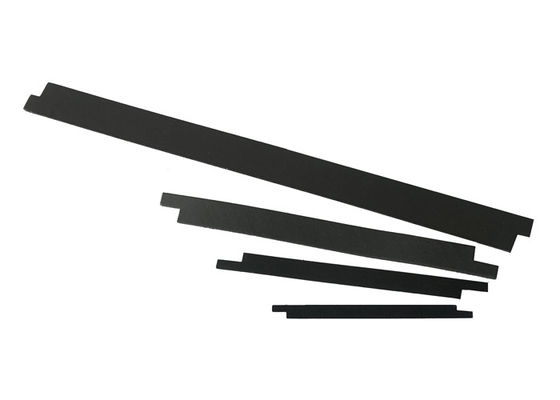

Black Density 2.16g / cm3 PTFE Bands with various filler assembled on piston outside
Specifications:
properties | unit | result |
Apparent density | g/cm3 | 2.10-2.30 |
Tensile strength(min) | MPa | 15.0 |
Ultimate elongation(min) | % | 150 |
Working Temp. | ℃ | -180~260 |
Melting point | ℃ | 327 |
Produce Max Temp. | ℃ | 385 |
Size | mm | 20mm~400mm |
1. Good sealing effect in Dynamic and static sealing
2. Minimal start-up and movement friction, smooth movement even at low speeds, no creeping phenomenon.
3. Good abrasion.
Description:
Carbon fiber filled PTFE piston ring
Material: PTFE filled with carbon fiber
Size: 116*8*1
Style: PTFE piston ring
Shape: can be customized
Package detail: poly bag + carton box
Delivery time: 15 days
Payment terms: T/T, LC and others
Filled PTFE Product
1. Carbon, graphite and glass fiber can be filled
2. Size can be made based on customers' requirements
Features:
PTFE has excellent all-round properties performing well at both high and low temperatures, being
corrosion-resistant, non-stick, self-lubricating and insulating. In addition, it has a low friction coefficient.
Specifications:
All sizes will be produced according to customers' requirement
Different materials can be added, such as glass fiber, graphite, carbon and son on
Improve compression strength, thermal conductivity and abrasion resistance.
Applications:
1. Automotive Part
2. Motorcycle Part
3. Industrial parts
Competitive Advantage:
Professional manufacturer for many years
Quality control and cost control
Short delivery
Factory price
Picture Show
 |
