40% Bronze PTFE Guide Strip
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Customized PTFE bands |
| Minimum Order Quantity | 1,000pcs |
| Price | negotiation |
| Packaging Details | plastic PP bag inside and carton outside |
| Delivery Time | two weeks for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 150,000pcs per month |
Product Details
| Product Name | PTFE Guide Strip | Material | PTFE + Bronze Compound |
|---|---|---|---|
| Application | Hydraulic Cylinder | Style | Sealing Strip |
| Size | Customized | Production | Punch Machine |
| Yield Strength | 23MPA | Coefficient Of Friction | 0.05-0.10 |
| High Light | 122mm PTFE guide strip,122mm ptfe bearing strip,ISO9001 PTFE guide strip |
||
Product Description
High temperature resistance PTFE piston rings banded with 40% bronze
Specifications:
1. Unusually high wear resistance.
2. High resistance against extrusion.
3. Perfect sealing performance.
4. Easy installation.
5. Good temperature tolerance.
6. Double lips prevent dust pollution.
Description:
Dimension: 122mmX6.25mmX1.60mm
Material: PTFE+40% bronze
Piston ring can band together with sinter piston, used in different kinds of shock absorbers.
Good seal piston ring used together with sinter piston, filler can be carbon, glass fiber and others, apply
in shocks
Different size and tolerance is available.
Different filler is available
Can supply our stock samples for free
Parts are exported to foreign market.
Can offer ROHS and SGS report if needed
Features:
All sizes will be produced according to customers' requirement
Different materials can be added, such as glass fiber, graphite, carbon and so on
Improve compression strength, thermal conductivity and abrasion resistance.
Application data
|
Inspection item |
Unit |
Data |
|
Bulk density |
G/CM3 |
1.90(±0.10)-for sheet; 2.30(±0.20) for PTFE seal |
|
Color |
|
Green, Blue, White, Black |
|
Pressure Limit |
Bar |
40 |
|
Temperature Limit |
℃ |
260 |
|
PH Range |
|
0-14 |
|
PTFE Seal thickness |
MM |
0.5(±0.10)/side |
|
Gasket Thickness |
MM |
2(±0.10) or as customers' request |
Advantages:
It has a low coefficient of friction and lubrication is not always necessary.
PTFE can work together with other materials like fiberglass or copper to get a better mechanical property.
When PTFE is expanded properly, the fiber changes from hair-like structure to a web-like structure and
become much more stronger while it is much lighter.
Applications:
It is widely used as flange sealing to joint where strong acid or alkaline or other corrosive.
Competitive Advantage:
Prevents metal to metal scoring and prolongs equipment life
Reduces radial movement on both rams and pistons to extend seal life
PTFE lubricant allows for lower coefficient of friction between mating surfaces
Retrofits existing bearing groves and eliminates unnecessary modifications
Available in common groove width dimensions, minimizing inventory costs
Strips can be cut to size from the coil

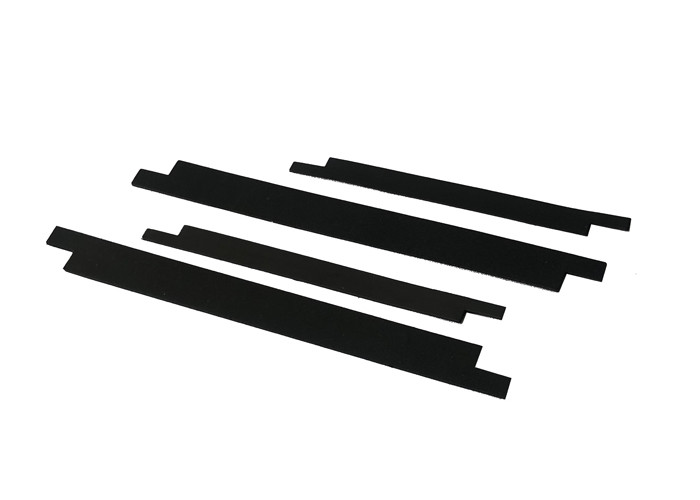

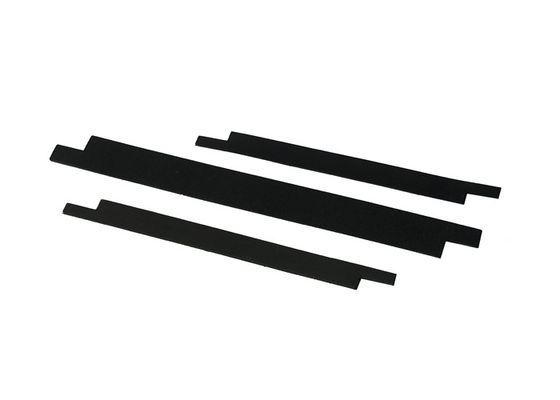

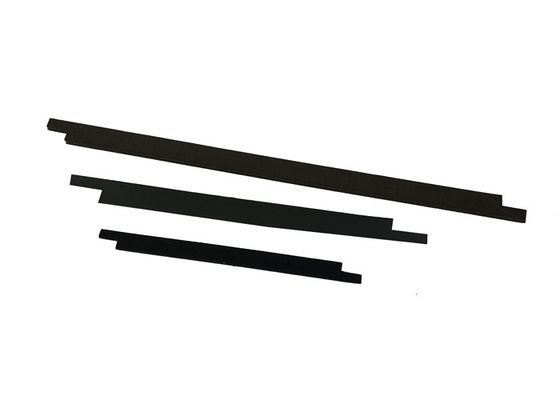

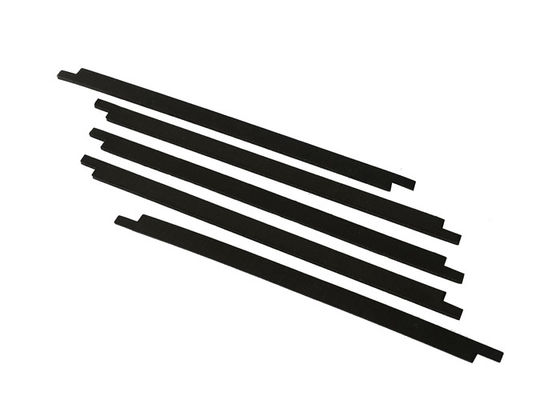

Pictures show:
 |
