Shock Absorber Sealing Element 120mm PTFE Band For Engine Crankshaft Seal
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Customized PTFE bands |
| Minimum Order Quantity | 1,000pcs |
| Price | negotiation |
| Packaging Details | Packed in plastic bag, then in carton with standard export package |
| Delivery Time | two weeks for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 150,000pcs per month |
Product Details
| Product Name | PTFE Bands | Material | PTFE + Bronze Compound |
|---|---|---|---|
| Application | Shock Absorber | Compression Ratio | 16.7% |
| Length | 120mm | Production | Punch Machine |
| Molding Time | 7 Days | Working Temp. | -180~+250℃ |
| High Light | 120mm PTFE Band,Crankshaft Seal PTFE Band,PTFE Punch machine Sealing Element |
||
Product Description
Filled PTFE Ring bands of elongation @ break ≥180% PTFE bands
Specifications:
|
properties |
unit |
result |
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
Tensile strength(min) |
MPa |
15.0 |
|
Ultimate elongation(min) |
% |
150 |
|
Working Temp. |
℃ |
-180~260 |
|
Melting point |
℃ |
327 |
|
Produce Max Temp. |
℃ |
385 |
|
Size |
mm |
20mm~400mm |
Type of filler -Graphite
*Extremely low coefficient of friction
*Chemically inert
*Usually incorporated with other fillers such as glass or carbon
*Increases wear resistance especially against soft metal
Description:
PTFE is a superior sealing material. It is clean and non-sticking, you can use it for food industry.
It can work up to 260 C. It can work at PH 0-14.
it can be processed into film, block or any shape.
we make various PTFE products:
braided sealing packing, Gasket Ring, Sheet, Rod, Tubing, PTFE thread seal tape, PTFE expanded joint
sealant and so on
Advantages:
It has a low coefficient of friction and lubrication is not always necessary.
PTFE can work together with other materials like fiberglass or copper to get a better mechanical property.
When PTFE is expanded properly, the fiber changes from hair-like structure to a web-like structure and
become much more stronger while it is much lighter.
Applications:
It is used for seal of engine crankshaft, detection machine, gear-box and oil resistant seal for other
machine. It can be also used to seal water, alkali, acid, corrosion according to the client's special
requirement.
Competitive Advantage:
Extremely low co-efficient of friction
Excellent chemical and weather resistance
Great electrical insulator
Great thermal stability and operating temperature range
Resistant to chemicals and moisture

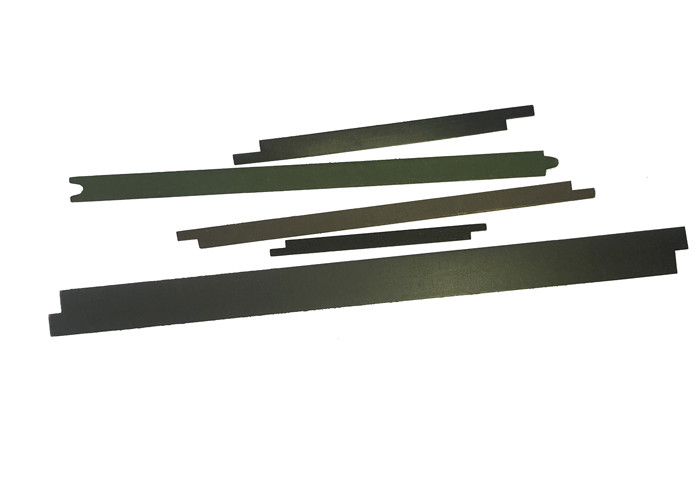

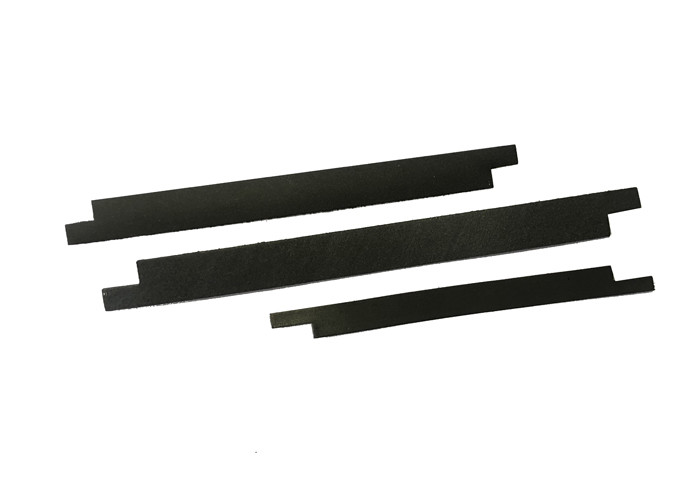

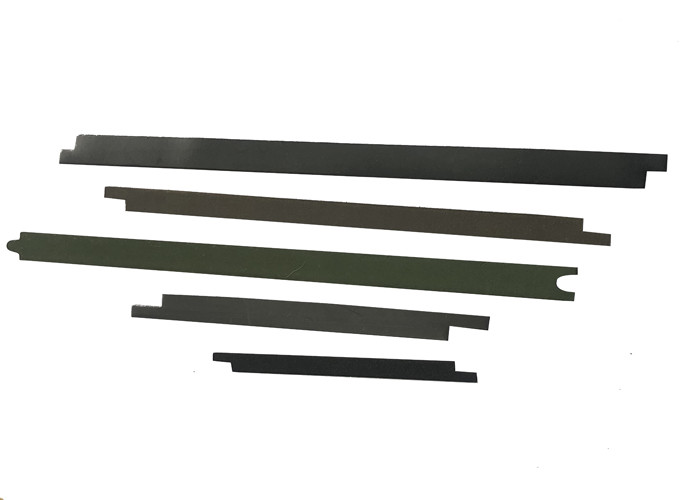

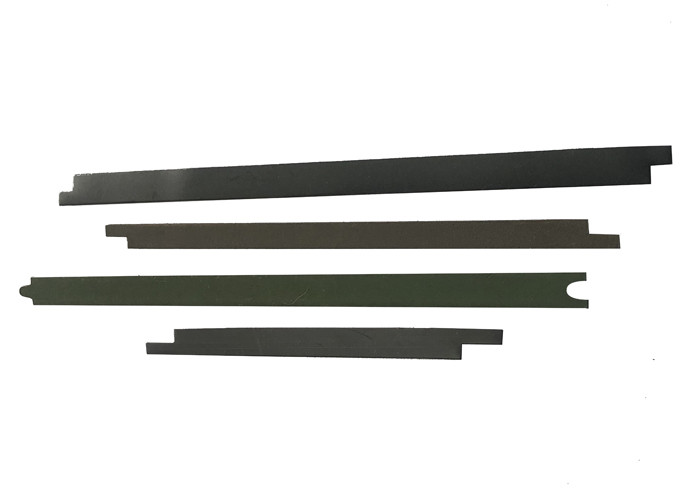

Picture Show
 |
