Punch Machine Hardness 60 Filled PTFE Sealing Element 15 MPa Teflon Slide Strips
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | WW-PTFE0919 |
| Minimum Order Quantity | 1,000pcs |
| Price | negotiation |
| Packaging Details | Packed in plastic bag, then in carton with standard export package |
| Delivery Time | two weeks for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 150,000pcs per month |
Product Details
| Product Name | PTFE Bands | Material | PTFE Plus Filler |
|---|---|---|---|
| Application | Shock Absorber | Net Weight | 12g |
| Hardness | 57-61 | Mold Time | 10days |
| Length | 81.10mm | Production | Punch Machine |
| High Light | PTFE filler teflon slide strips,15 MPa teflon slide strips,2.1 gcm3 Sealing Element |
||
Product Description
Various filler PTFE bands with shore hardness 60, can test properties at home
Specifications:
|
properties |
unit |
result |
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
Tensile strength(min) |
MPa |
15.0 |
|
Ultimate elongation(min) |
% |
150 |
|
Working Temp. |
℃ |
-180~260 |
|
Melting point |
℃ |
327 |
|
Produce Max Temp. |
℃ |
385 |
|
Size |
mm |
20mm~400mm |
Apparent Density: 2.1 ~ 2.3 g/cm3
Tensile Strength: ≥ 14.0 Mpa
Ultimate Elongation: ≥ 140%
Temperature: -20° F to 500° F (-180°C to 260°C)
Description:
Black filled PTFE piston ring, elongation @ break ≥180% filled PTFE material
Material: PTFE filled with carbon fiber
Size: 81.1*7*0.7
Color: black
Shape: can be customized
Package detail: poly bag + carton box
Delivery time: 15 days
Payment terms: T/T, LC and others
PTFE is a superior sealing material. It is clean and non-sticking, can be used in food industry.
It can work up to 260 C. It can work at PH 0-14.
It can be processed into film, block or any shape.
We make various PTFE products:
Braided sealing packing, Gasket Ring, Sheet, Rod, Tubing, PTFE thread seal tape, PTFE expanded joint
sealant and so on
Advantages:
It has a low coefficient of friction and lubrication is not always necessary.
PTFE can work together with other materials like fiberglass or copper to get a better mechanical property.
When PTFE is expanded properly, the fiber changes from hair-like structure to a web-like structure and
become much more stronger while it is much lighter.
Applications:
1. Automotive Part
2. Motorcycle Part
3. Industrial parts
Competitive Advantage:
Professional manufacturer for many years
Quality control and cost control
Short delivery
Factory price

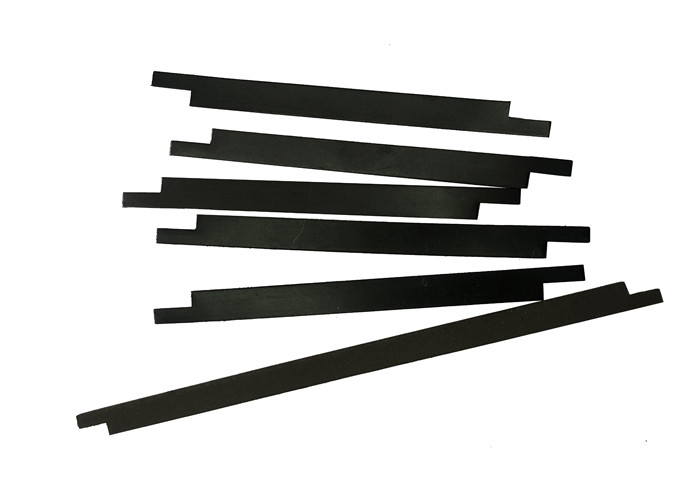

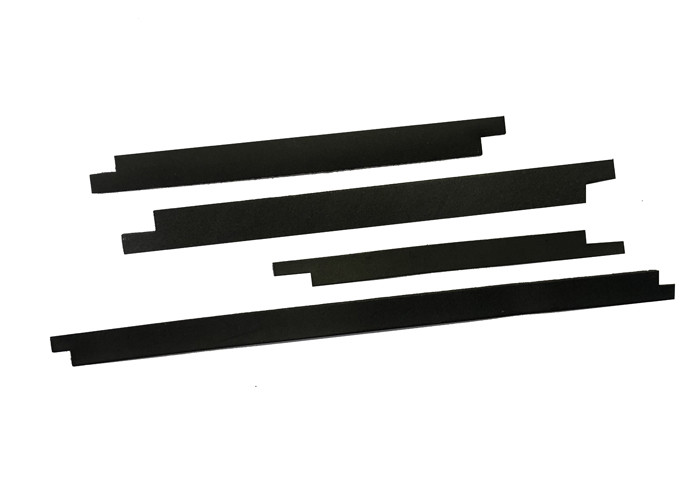

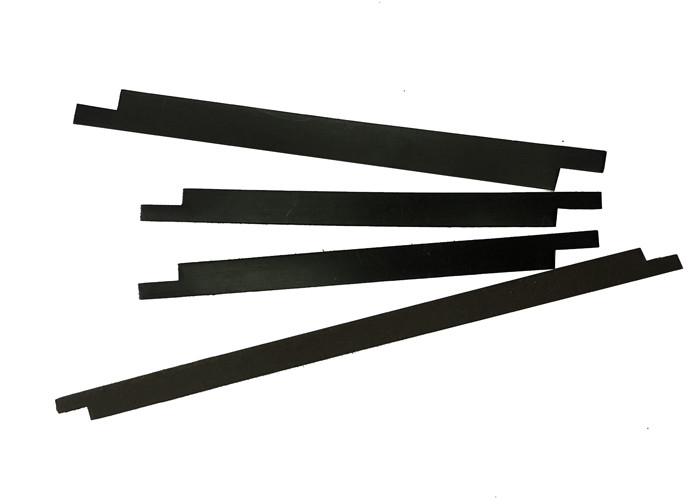

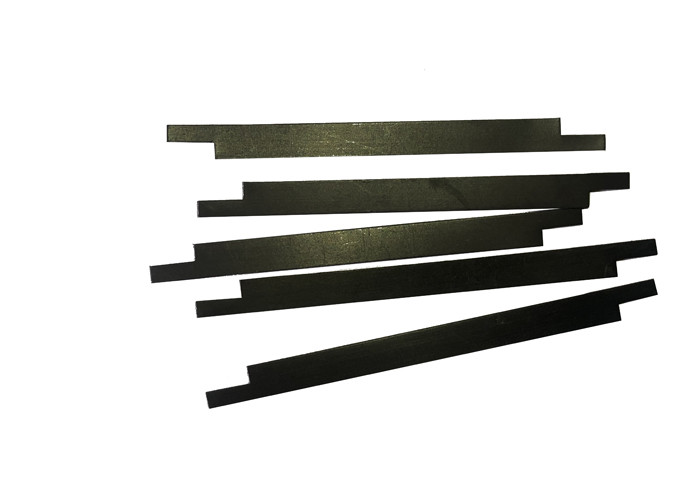

Picture Show
 |
