Bronze Steel Du Bush Bearing 60HB Dry Oilless Bearings 10m/S

Machining Of Sleeve Du Bushing with rust-proof oil plated used in gear pump

Specifications:

SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2 (dx) slide bearing bushing (POM Composite)

FB090 (FB090G) bronze bushing

JDB, JFB solid graphite lubricating bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

DU bushing Bearing

Full range of size and customized

High quality OEM manufacturer with much experience

Description:

Cylindrical bushes, flange bushes, thrust washers and strips. non-standard parts.

STEEL PLATE SELF-LUBRICATING BUSHING (WITHOUT PB)

It's made of high quality low-carbon steel plate, sintered porous bronze as its interlayer and the

compound of PTFE material and Pb as its surface. As it is no lead, which makes the bearing lubricating

condition cleaner and in accordance with environmental request. It's based on bronze alloy of a particular

formulation with high density with sintered bronze layer as its interlayer, with the compound of mostly

PTFE and other factors. As it is no lead, which makes the bearing lubricating condition cleaner, and in

accordance with environmental request.

Specifications

1, Reliable quality & Reasonable price

2, Soon of delivery time

3, Professional factory in china

4, wide range production

1. PTFE / Fibre mixture thickness 0.01 ~ 0.03 MM, provides an excellent initial transfer film, which

effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.

2. Sintered bronze powder thickness 0.20-0.35MM, provides Max. thermal conductivity away from the

bearing surface, also serves as a reservoir for the PTFE- Fibre mixture.

3. Low carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.

4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance

Typical application:

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other

chemical environments when no oil can be introduced. Now is widely be used in automotive products line,

water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy

industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines..

Applications:

Car or motorbike shock absorber

Equipment Advantage:

Bronze-steel sintering line

Automatic tooling line

Grinding machine

Rolling mill machine

CNC machine

Punching machine

Gage lathe machine

Hydraulic machine

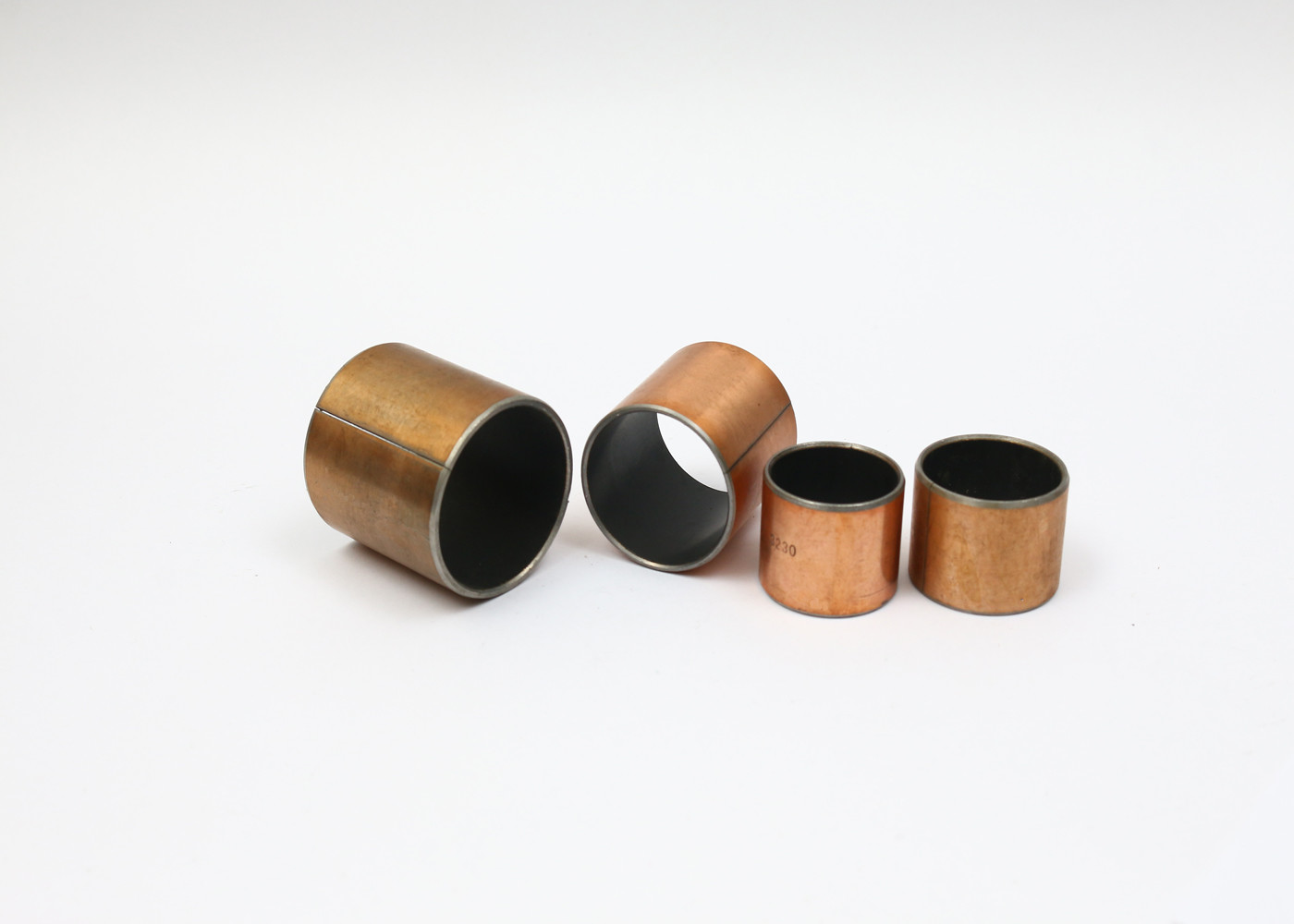

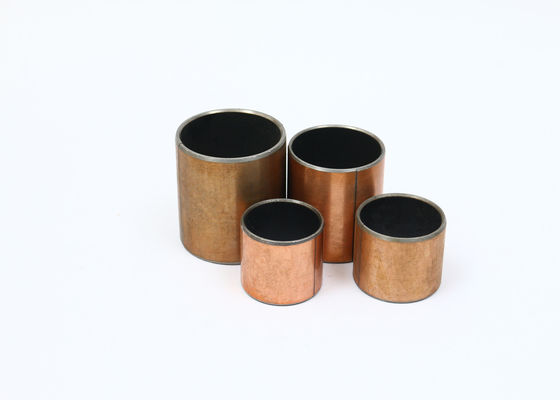

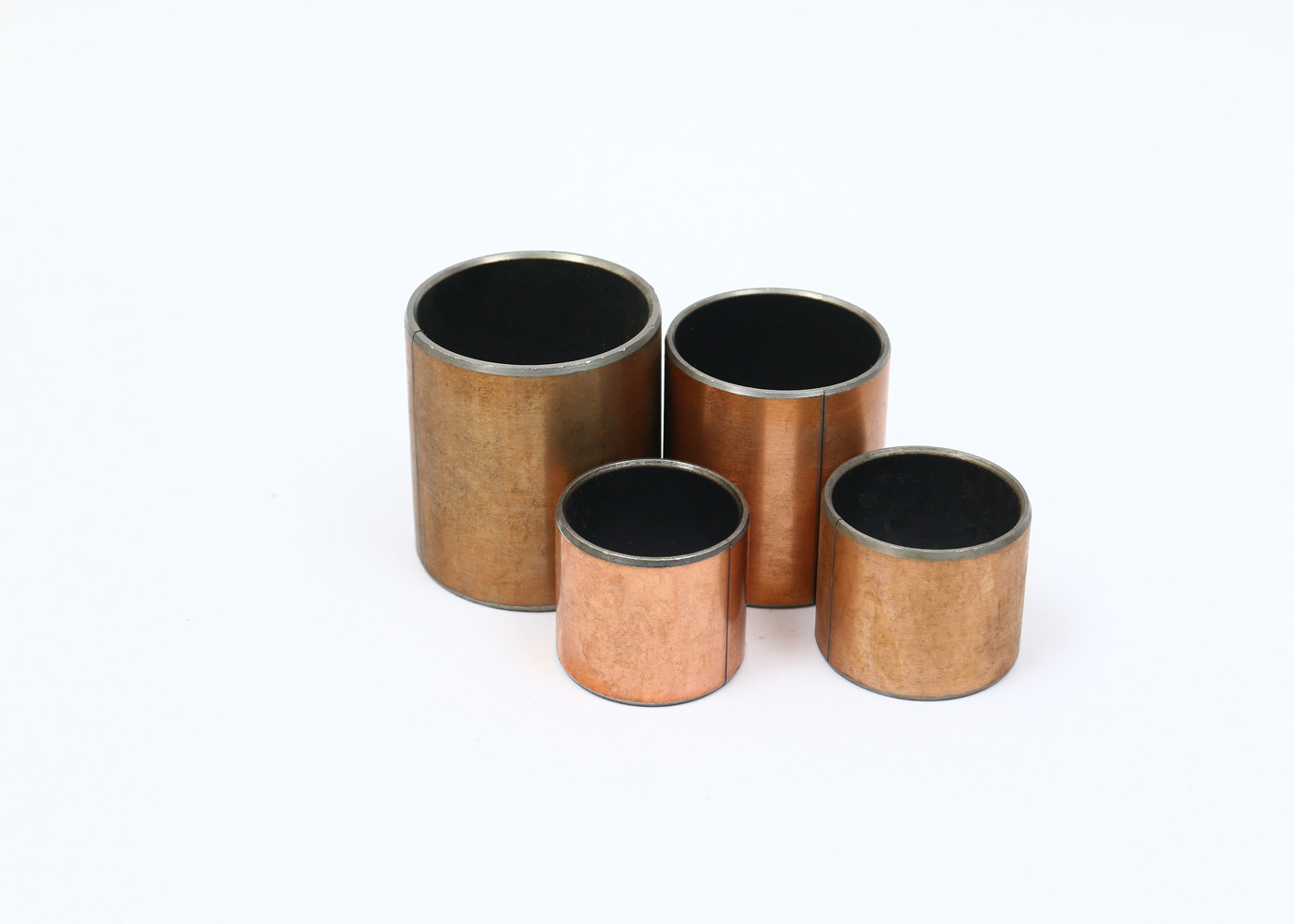

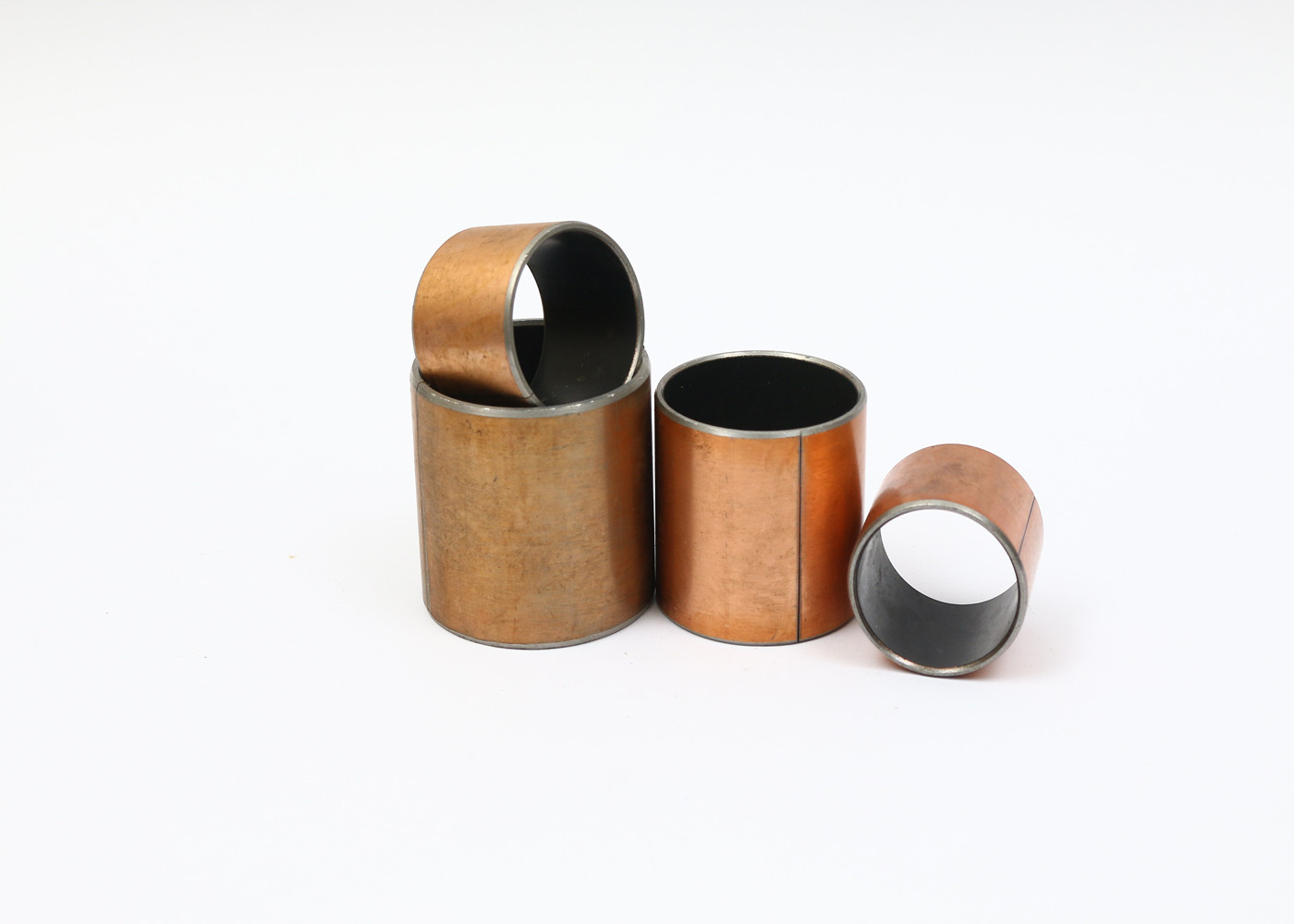

Picture Show
