Max Output Torque Hydraulic Piston Motor
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | walking reducer |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| Model | DLW013 | COLOR | CUSTOMIZED |
|---|---|---|---|
| SPEED | 2000RPM | BRAKE TORQUE | 450-900N.M |
| SPEED TYPE | HIGH SPEED | PRESSURE | 25MPa |
| High Light | ISO9001 Hydraulic Piston Motor,2000RPM Hydraulic Piston Motor,ISO9001 Hydraulic Drive Motor |
||
Product Description
Part Name: Travel Motor Walking Reducer Hydraulic Piston Motor With Max Output Torque
Applications:
Suitable for low speed, wheeled or tracked vehicles and other walking equipment, such as rotary drill, trenchless drill, agriculture and forestry industrial machinery, paver, heading machine and so on, with torque range from 2000N. M to 450000N. M.
Technical parameters:
| Max output torque(N . m) | 13000 |
|
Max transmission ratio(i) |
16.3 22.6 32.1 37.6 |
| Max input speed(r/min) | 2000 |
| Max operating pressure(MPa) | 25 |
| Model for hydraulic motor | A2FE |
| Brake torque(N.m) | 450-900 |
| Working pressure for brake(MPa) | 2-5 |
| Weight(KG) | 85 |
DLW series compact reducer is an ideal reducer in the transmission mechanism.
Because of its extremely compact form of mechanism, this reducer can be used in difficult installation environments. The product adopts advanced design technology and processing methods, it effectively guarantees high bearing capacity and operation reliability. DLW reducer not only conforms to the series standards from some famous brand, but also can meet specific needs for different customers and add our unique design and get the perfect parts.

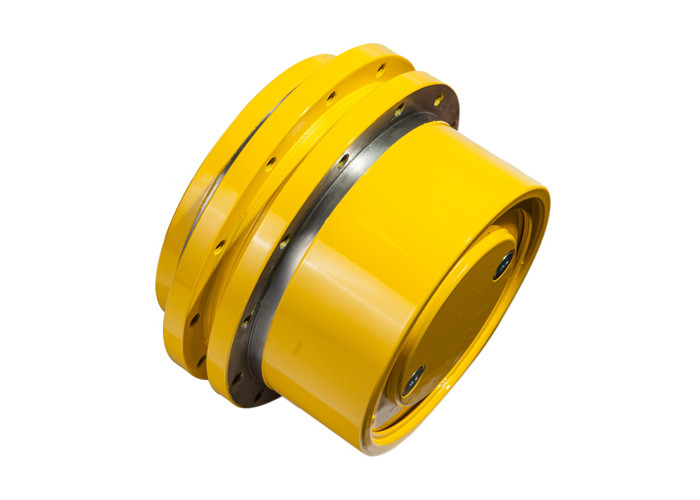

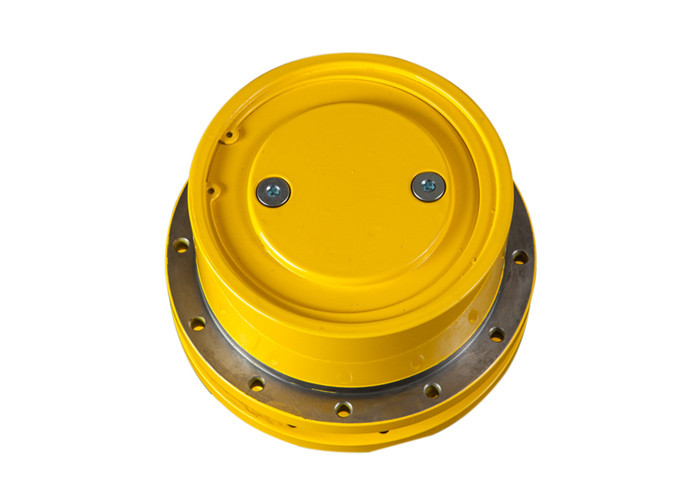

Detail drawings:
 |
Other drawings:
|
