Plunger And Inclined Shaft 25MPa Hydraulic Rotary Motor

Place of Origin NINGBO,CHINA
Brand Name WEIWO
Certification ISO9001:2008
Model Number rotary motor
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Standard Export Wooden Case
Delivery Time 7-15 working days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
High Light

Inclined Shaft Hydraulic Rotary Motor


25MPa Hydraulic Rotary Motor

Leave a Message
Product Description

Part Name: Plunger Type And Inclined Shaft Hydraulic Rotary Motor


Especially used in furnace dismantling machine



hydraulic transmission of mining, construction, engineering machinery, hoisting and transportation equipment, metallurgy, petroleum and coal mine, marine machinery, plastic machinery, geological drilling and other machinery.


Technical parameters:

Brand WEIWO Custom-made YES
Structural style Plunger type Load type Inclined shaft motor
Speed type High speed Rated power 12.3 KW
Rated speed 5000 r/min Rated pressure 25MPa
Rated torque 28 N.m Weight 75KG


This series of quantitative plunger hydraulic motor

1.) the axis of the cylinder body and the axis of the spindle form a constant angle, namely the axial plunger element of the curved shaft structure, with fixed displacement. Hydraulic transmission works in open or closed hydraulic system as pump or motor working condition.


2.) when pump as a working condition, flow and drive speed and displacement have proportional relation.


3.) when motor is operating, output speed is proportional to the input flow. And it is inversely proportional to the displacement. The output torque is proportional to the high pressure side and the low pressure side.


4. The structure of spherical valve plate has good centering characteristics for rotating components, stable rotation speed and low noise.


5.) with radial thrust bearing, it can bear certain radial load.


6.) installation flange conforming to ISO standard, with strong universality.


7.) system adopts reasonable and clean anti-combustion hydraulic oil medium, which can extend the service life and increase the application occasions. The hydraulic oil should be replaced every six months.


Output shaft: flat key, spline can be freely selected!


Detail drawings:

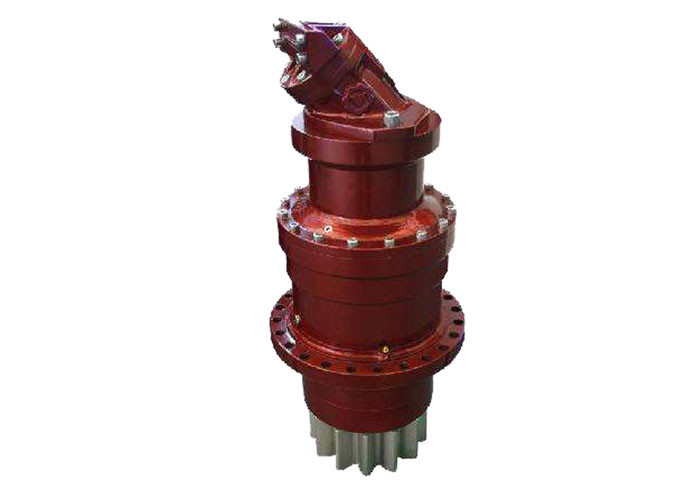

Plunger And Inclined Shaft 25MPa Hydraulic Rotary Motor 0

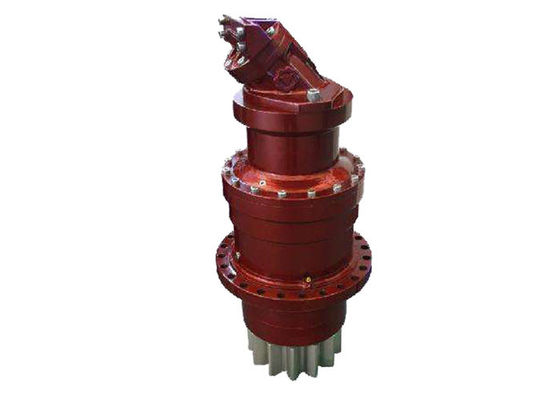

Plunger And Inclined Shaft 25MPa Hydraulic Rotary Motor 1


Other pictures:

Plunger And Inclined Shaft 25MPa Hydraulic Rotary Motor 2
