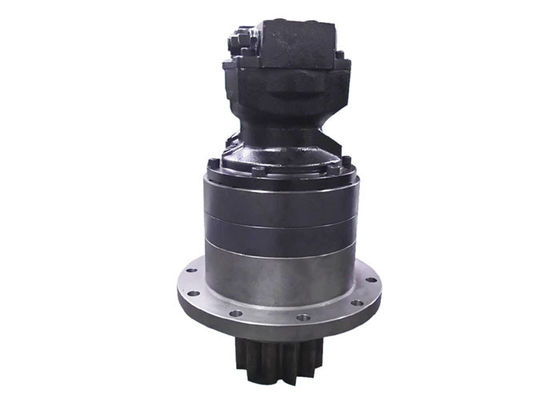

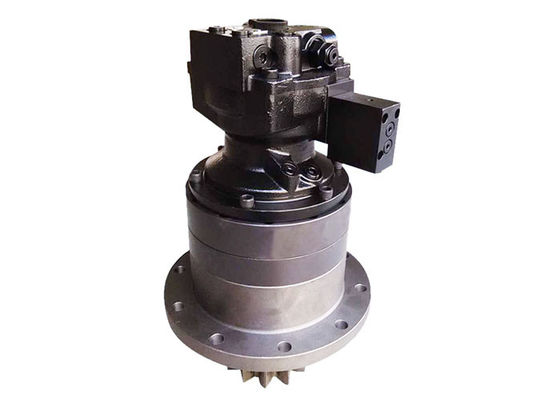

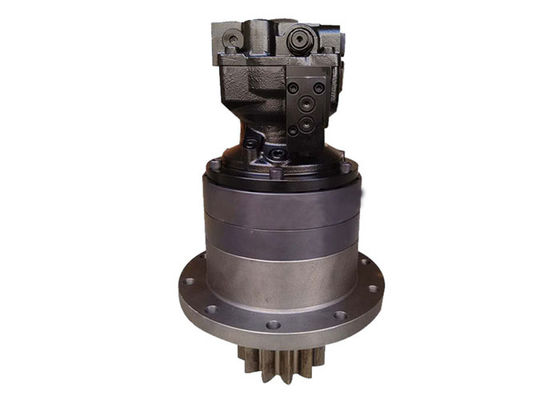

80rpm Hydraulic Drive Motor Z13 Gear Speed Reducer For Crane Slewing System
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | DYP series |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| TYPE | ROTARY REDUCER | COLOR | CUSTOMIZED |
|---|---|---|---|
| SPEED | 1-80 RPM | RATED TORQUE | 3000-4000N.m |
| MOTOR TYPE | GM1-250 | BRAKE TYPE | Z13 |
| High Light | 80rpm Hydraulic Drive Motor,Z13 Gear Speed Reducer,4000N.m Gear Speed Reducer |
||
Product Description
Part Name: Speed Range 1 - 80 rpm Gear Speed Reducer used in crane slewing system
Part Model: DYP series
Especially used in crane slewing system
Applications:
Hydraulic transmission of cement pump truck, marine machinery, rotary reducer, port, mining, agriculture, forestry, metallurgy and other machinery.
Performance parameters:
| Model |
Total Displacement ml/r |
Rated Torque N.m |
Speed Range r/min |
Motor Type | Rotation Reducer Type | Brake Type |
| DYP3-1250 | 1215 | 3382 | 1-80 | GM1-250 | C3-5 | Z13 |
| DYP3-1450 | 1450 | 4022 | 1-80 | GM1-300 | C3-5 | Z13 |
| DYP3-1600 | 1570 | 4361 | 1-80 | GM1-320 | C3-5 | Z13 |
DYP series rotary reducer can be equipped with the corresponding valve body, consisting of hydraulic motor, planetary reducer, disc brake and various function valve distributor. It has small radial size, light weight, large torque, output shaft can withstand large radial and axial external forces, high starting efficiency, superior low speed stability, high transmission efficiency, low noise, good economy and other advantages.
Detail drawings without brake:
 |
Detail drawings with brake built-out:
|
Detail drawings with brake built-in:
|
Output shaft form:
|
