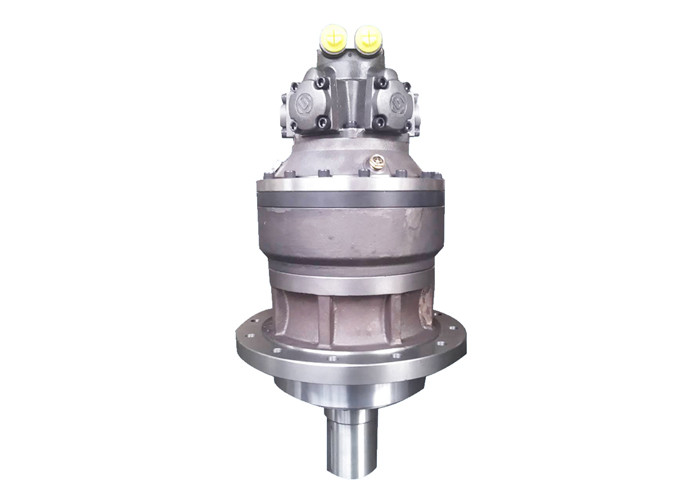

ISO9001 Hydraulic Drive Motor Concentrator Rotary Reducer 400rpm
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | DIP010069（99）AI |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| TYPE | ROTARY REDUCER | COLOR | CUSTOMIZED |
|---|---|---|---|
| SPEED | 400 RPM | MAX PRESSURE | 12 MPa |
| MOTOR TYPE | NIM2-1001 | WEIGHT | 320 KG |
| High Light | 400rpm Hydraulic Drive Motor,400rpm rotary reducer,12 MPa rotary reducer |
||
Product Description
Part Name: Max Input Speed 400 RPM Rotary Reducer Box Series Used In Concentrator
Part Model: DIP010069(99)AI
Especially used in concentrator
Applications:
Especially suitable for the center and peripheral transmission of the concentrator, coal washing, can also be used in the port crane, construction tower crane.
| Mechanical type | concentrator |
| OD of concentrator(m) | 6 |
| Depth of concentrator(m) | 3 |
| Sedimentation area of concentration tank(m2) | 28.3 |
| Height of rake(m) | 0.2 |
| Time of raking frame(min/turn) | 3.7 |
| Handling capacity(ton/hour) | 62 |
| Total weight(ton/set) | 8.8 |
Technical parameters
|
Max Torque N.m |
Reduction Ratio i |
Max Input Speed rpm |
Max Pressure MPa |
Brake Torque N.m |
Min Start Pressure MPa |
Motor Model
|
Weight Kg |
| 10000 | 69(99) | 400 | 12 | ---- | ---- | NIM2-1001 | 320 |
The DIP series rotary reducer a series of new products specially designed for the coal washing and concentration equipment with relatively large speed ratio. The load starting performance is much better than the original scheme of adding cycloidal pinwheel reducer to the motor. The gear box is not hot after long running, and the noise is very low. It can replace the same type of rotary reducer abroad. In order to meet the requirements of customers, various types of output flanges can be designed to meet the requirements of different working conditions. Thus widely used in construction engineering, railway, highway, shipping, oil, coal, metallurgy and other machinery. According to different needs, users can choose the brake and integrated with various functions of the distributor, which can get good reliability.
Detail drawings:
 |

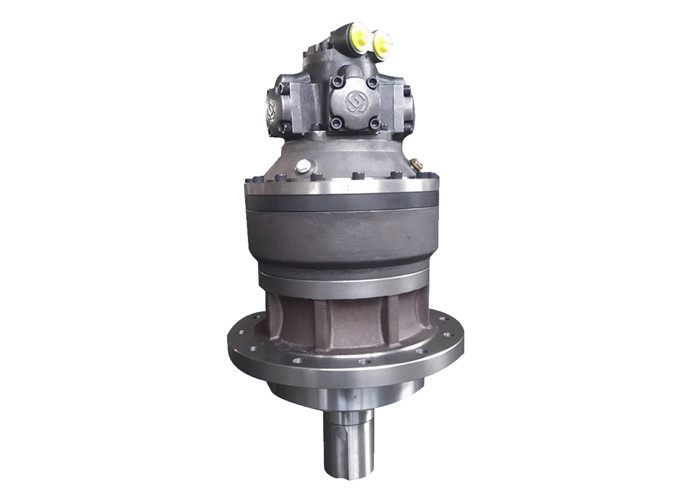

Other pictures:
|
|
|
|
