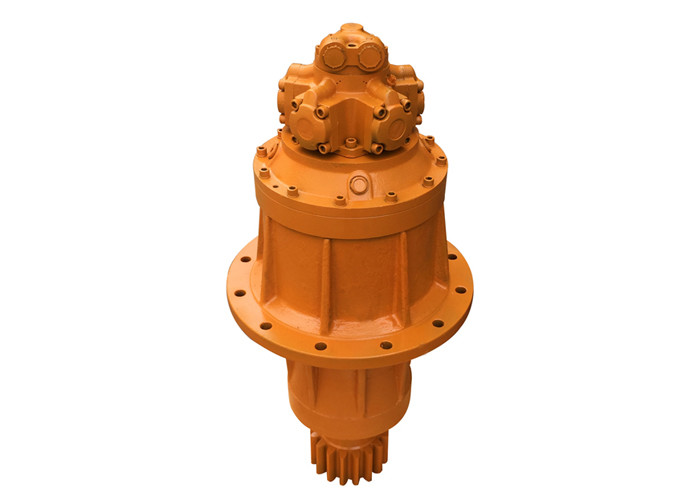

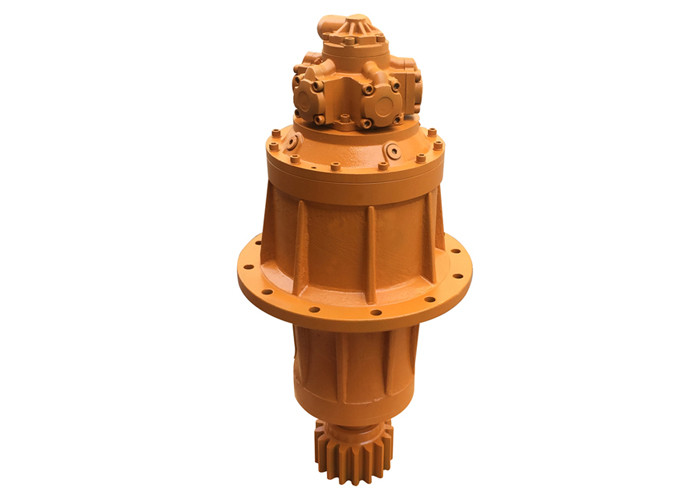

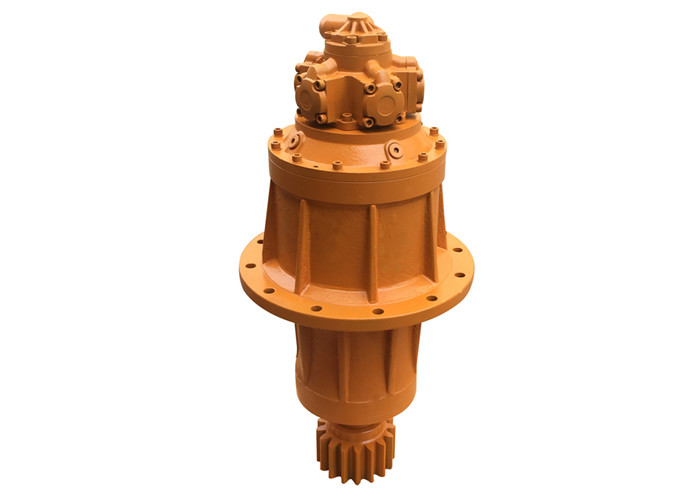

Petroleum Hydraulic Drive Motor Evenly Distributed Hydraulic Swing Motor
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | DIP010069(99)BI |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| TYPE | Rotary Reducer | COLOR | CUSTOMIZED |
|---|---|---|---|
| MAX SPEED | 400RPM | MAX TORQUE | 10000N.m |
| MOTOR TYPE | NIM2-100I | WEIGHT | 350 KG |
| High Light | 400RPM DIP Hydraulic Drive Motor,400RPM hydraulic swing motor,10000N.m hydraulic swing motor |
||
Product Description
Part Name: 12 Installation Holes Evenly Distributed Hydraulic Swing Motor
Part model: DIP010069(99)BI
Special application: petroleum and coal machinery
Scope of use:
DIP rotary reducer can be widely used in all kinds of mechanical transmission, mining, construction, engineering machinery, lifting transportation equipment, metallurgy, petroleum coal mine, marine machinery, geological drilling and other machinery hydraulic transmission.
Technical parameters are shown in the following table:
|
Max torque (N.m) |
Reduction ratio (i) |
Max input speed (rpm) |
Max operation presure(Mpa) |
Brake torque (N.m) |
Min start pressure(Mpa) | Hydraulic motor type |
Weight (kg) |
| 10000 | 69(99) | 400 | 9 | - | - | NIM2-100I | 350 |
DIP series rotary reducer is a series of new products specially designed for coal washing and concentration equipment with large speed
ratio motors. It has high torque, low speed, especially suitable for use in port crane, construction tower crane.This motor can be substituted
for the same type of foreign rotary reducer.This motor has been mass production in Gerne company, welcome customers from all over the
world to consult and purchase.
This motor has 12 installation holes with φ22, are evenly distributed, the distance from the center of the installation hole is φ450mm, the installation surface to the top of the output shaft, the distance is 508mm, the distance of the tooth mouth is 400mm, the diameter of the output shaft is φ95mm, the flat key is 160*25*14, the total dimension is 945mm (including hydraulic motor).
Detail drawing:
 |
