32rpm Final Drive Travel Motor For Coal Washing Equipment
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | DYP-14800 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| TYPE | ROTARY REDUCER | COLOR | CUSTOMIZED |
|---|---|---|---|
| SPEED | 0.5~32RPM | RATED TORQUE | 28648 N.m |
| MOTOR TYPE | NIM16-2000 | DISPLACEMENT | 15000ML/r |
| High Light | 32rpm hydraulic travel motor,0.5rpm final drive travel motor,15000ML/r final drive travel motor |
||
Product Description

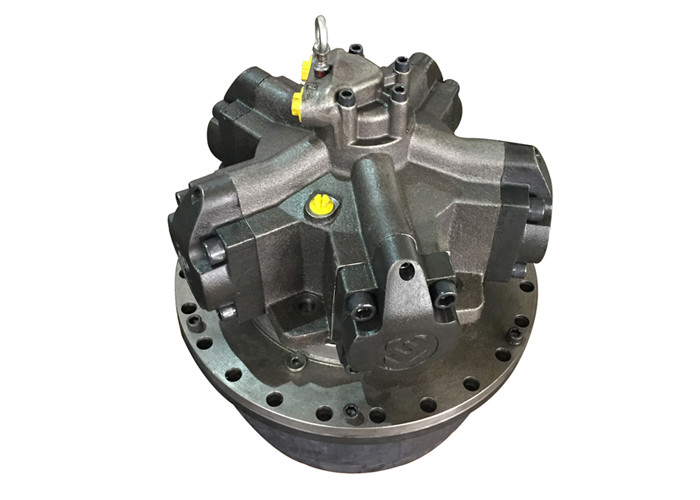

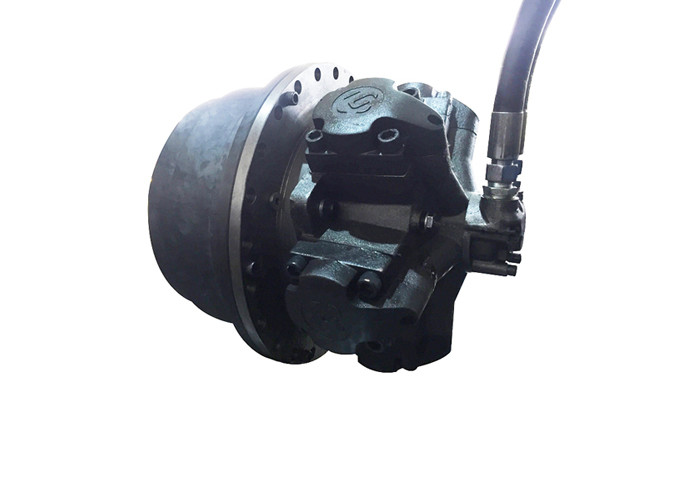

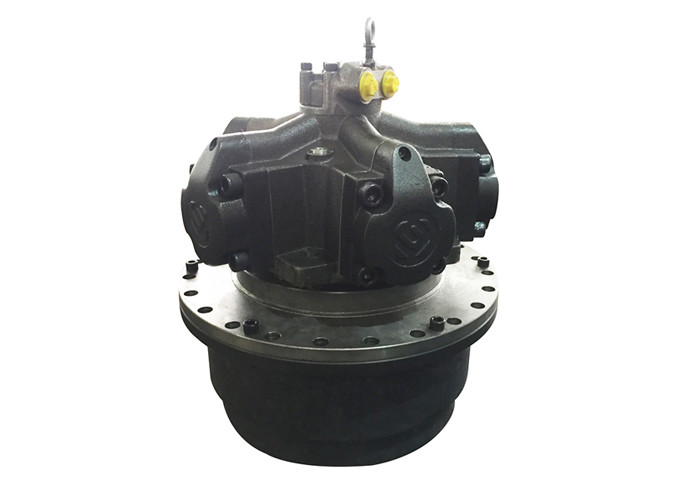

Part Name: High Transmission Efficiency Final Drive Travel Motor For Coal Washing Equipment
Part model:DYP6 (C6)
Especially suitable for: metallurgical machinery and coal mining machinery
Scope of use:
DYP series rotary reducer can be widely used in all kinds of mechanical transmission, mining, construction, engineering machinery, lifting transportation equipment, metallurgy, petroleum coal mine, marine machinery, geological drilling and other machinery hydraulic transmission.
Technical parameters are shown in the following table:
| Model | Total displacement(ML/r) |
Rated torque (N.m) |
Speed range (r/min) |
Min start pressure(Mpa) |
Hydraulic motor type | Optional distributor | |
| DYP-14800 | 14889 | 28648 | 36832 | 0.5~32 | - | NIM16-2000 | D90,D480101 |
DYP series rotary reducer is a series of new products specially designed for coal washing and concentration equipment with relatively large speed ratio, this reducer contain draulic motor, planet reducer and disc brake.Output shaft can stand large external forcethe from radial and axial direction, high starting efficiency (0.87~0.9). This product can replace the same type of foreign rotary reducer, superior low speed and stability qualitative, high transmission efficiency, low noise, good economy and other advantages. And the parts have been in mass production, welcome customers from all over the world to choose and buy.
This product mainly has 3 models, DYP-14800, DYP-17600, DYP-21300 3 models, related spare parts can be customized produce according to customer special requirements.
