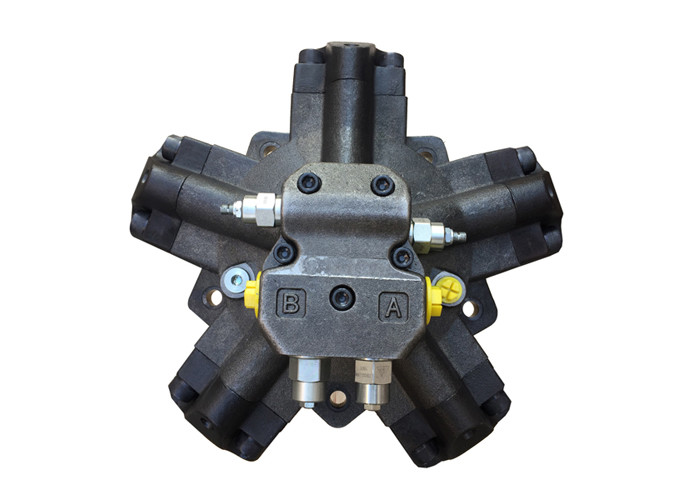

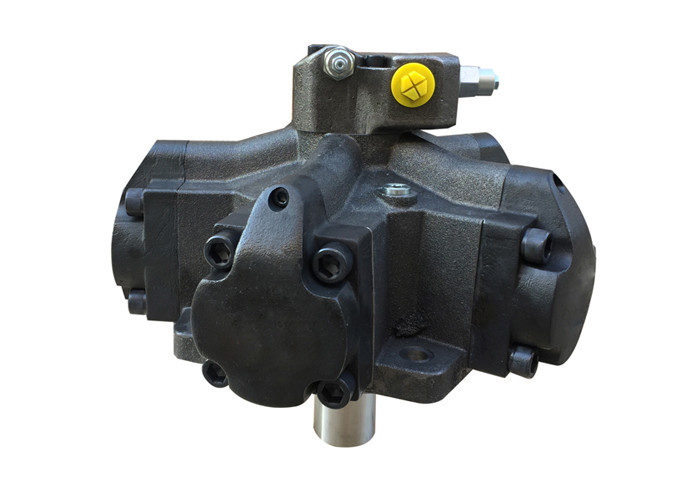

250RPM Hydraulic Drive Motor 16MPa High Torque Radial Piston Motor
TYPE | PISTON MOTOR | COLOR | CUSTOMIZED |
---|---|---|---|
SPEED | 2-250RPM | RATED TORQUE | 5364 N.m |
RATED PRESSURE | 16MPa | WEIGHT | 170KG |
High Light | High Torque radial piston motor,16MPa radial piston motor,5364 N.m Hydraulic Drive Motor |
Part Name: Good Reliability And Long Life High Torque Radial Piston Motors
Especially used in petroleum and coal mine, plastic machinery
Other applications:
hydraulic transmission of mining, construction, engineering machinery, lifting and transportation equipment, metallurgy, marine machinery, geological drilling and other machinery.
NIM series hydraulic motor is manufactured according to Italian standard, the main parts are produced by the processing center and CNC machine processing, all seals and high strength hexagon screws are imported from Germany, Italy and Taiwan, casting parts are made of ductile cast iron with polyester sand, so as to ensure that the performance and appearance quality of the products are better than those produced in China Product level.
NIM series hydraulic motor has so many advantages such as good reliability, high efficiency, long life, wide range speed and low noise. Motors are widely used in plastic injection machine, ships, mines, building metallurgy, petroleum, coal mines, geological drilling, plastic industry and other machinery hydraulic pressure transmission system.
Relevant calculation formulas for reference:
Hydraulic motor output power:
In the formula:
N=Hydraulic motor speed (r/min)
Q=Input flow rate (m/min)
ηV=Hydraulic motor volumetric efficiency(%)
Hydraulic motor speed:
Quality guarantee period:
If the quality problem is caused by the product itself within one year from the date of leaving GERNE, three guarantees shall be applied, but no joint and several liability shall be assumed.
Technical Parameters:
Model |
Displacement mL/r |
Pressure MPa |
Torque
|
Speed r/min |
Weight Kg |
||
Rated pressure | Max pressure |
Rated torque N.m |
Unit theoretical torque N.m/MPa |
||||
NIM16-2400 | 2267 | 16 | 20 | 5364 | 335 | 2-250 | 170 |
Detail installation drawings and performance curves:
|
