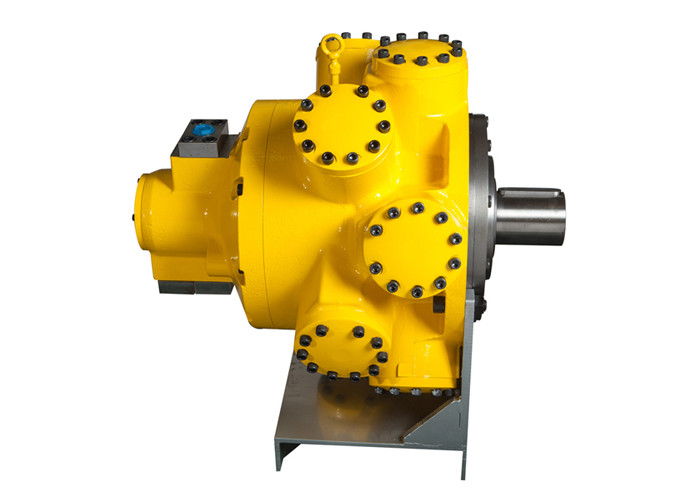

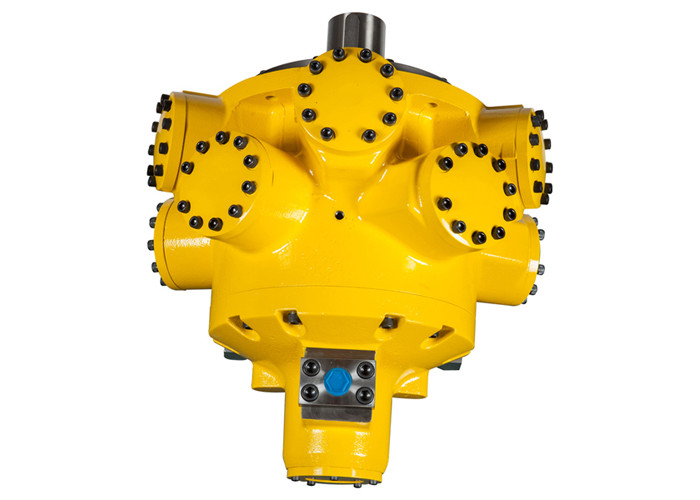

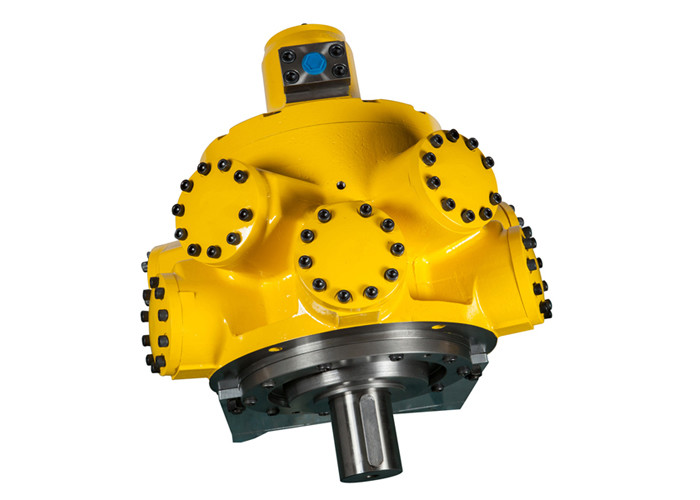

Marine Machinery Hydraulic Drive Motor 100KW Radial Piston Motor 260 RPM
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | DHMB100-1400 / 1600 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| TYPE | PISTON MOTOR | COLOR | YELLOW |
|---|---|---|---|
| SPEED | 260 RPM | TORQUE | 4600-4750 |
| RATED PRESSURE | 23 MPa | RATED POWER | 100 KW |
| High Light | 100kw Hydraulic Drive Motor,260 RPM radial piston motor,100KW radial piston motor |
||
Product Description
Part Name: Rated Power 100KW Radial Piston Hydraulic Motor
Marine Machinery Hydraulic Drive Motor 100KW Radial Piston Motor 260 RPM
Especially for Marine Machinery
Apply to injection molding machinery, marine, engineering machinery, construction machinery, coal mine machinery, mining machinery, metallurgical machinery, petrochemical engineering, harbour machinery and so on.
Features: Low speed, output torque is large
Technical specifications (DHMB100-1400 & DHMB100-1600)
| Theoretical displacement (mL/r) | 1385,1630 |
| Rated pressure(MPa) | 23,23 |
| Max pressure(MPa) | 29,29 |
| Rated torque(N.m) | 4660,5484 |
| Unit theoretical torque (N.m/MPa) | 203,238 |
| Max speed(r/min) | 260,240 |
| Rated power(KW) | 100,100 |
| Weight(kg) | 144 |
Low speed large torque Hydraulic Motors include radial piston hydraulic motor, crankshaft connecting rod hydraulic motor, swing-cylinder type hydraulic motor and cycloidal hydraulic motor.
Properties:
1. Large start torque, mechanical efficiency will be more than 0.9 when start, good stability with low speed, can equilibrium running with low speed.
2. Roller support between bent axle and connecting rod, has high mechanical efficiency.
3. Higher power quality ratio, small volume and light weight.
4. Five piston struction with eccentric shaft and low vibration frequency, has advantage of low noise.
5. Good reliability of planar compensation distributor, almost no leakage, plastic piston ring seals between piston and cylinder hole to assure high volume efficiency.
6. Direction of rotation is reversible. Shaft can bear radial and axial force.
Mounting dimensions
Characteristic curve:
Working medium: Anti-wear hydraulic oil
Viscosity: 46cSt
Oil Temperature: 50℃
Other drawings:
|
|
|
|
