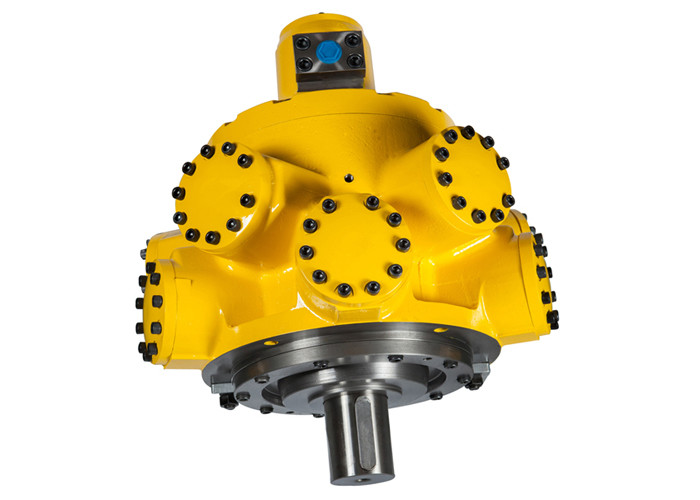

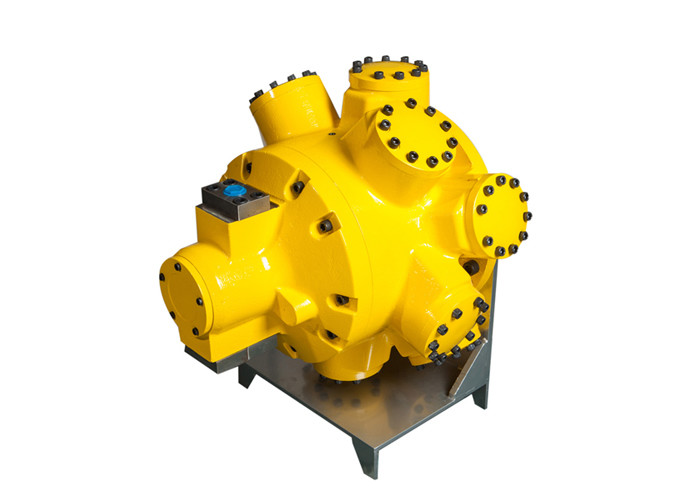

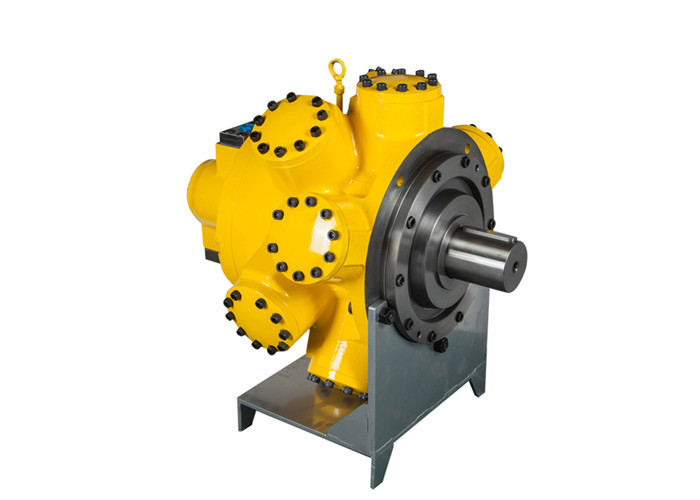

Drilling Machine Marine Hydraulic Drive Motor 250rpm 23MPa
| Place of Origin | NINGBO,CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | DHMB080-1100 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard Export Wooden Case |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 units per month |
Product Details
| TYPE | PISTON MOTOR | COLOR | YELLOW |
|---|---|---|---|
| SPEED | 250-350rpm | TORQUE | 3500-3660 |
| RATED PRESSURE | 23MPa | RATED POWER | 90KW |
| High Light | 250rpm drilling machine motor,23MPa Hydraulic Drive Motor,90KW Hydraulic Drive Motor |
||
Product Description
Part Name: DHMB 080-1100 New Design Marine Hydraulic Motor
Especially for marine machinery
Other applications: Apply to injection molding machinery, ship deck machinery, mining construction machinery, lifting and transportation equipment, heavy metallurgical machinery, petroleum coal mine machinery, light industry equipment, drilling machine and other various of mechanical hydraulic transmission system. Can also be used in screw drive of injection molding machine, promoting winches and other Rotary mechanical drive.
DHMB series Hydraulic Motors are our company new design parts after research and development for long time. On basis of leaning static balance advantages of crankshaft connecting rod hydraulic motors from home and abroad, after testing, failure and improving, finally succeeded. The housing of this hydraulic motors has higher strength. Carrying capacity of internal dynamics component is very large. Because of adopting static balance, reducing internal force of friction, can effectively reduce heat generation and other negative effects.
Function: hydraulic motor is a kind of actuating element for hydraulic system. It will change pressure energy provided by hydraulic pump into mechanical energy of output shaft.
Model:DHMB080-1100
Technical Parameters:
| Theoretical displacement (mL/r) | 1088 |
| Rated pressure (MPa) | 23 |
| Peak pressure (MPa) | 29 |
| Rated torque (N.m) | 3661 |
| Unit torque (N.m/MPa) | 159 |
| Max speed (r/min) | 300 |
| Rated power (KW) | 90 |
| Weight (Kg) | 144 |
Appearance and mounting dimensions
Characteristic curve:
Working medium: Anti-wear hydraulic oil
Viscosity:46cSt
Oil Temperature: 50℃
