Coal Mines Roadheader Hydraulic Piston Motor 630rpm 32mpa

Place of Origin NINGBO,CHINA
Brand Name WEIWO
Certification ISO9001:2008
Model Number NIM6-450
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Standard Export Wooden Case
Delivery Time 7-15 working days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
TYPE PISTON MOTOR COLOR CUSTOMIZED
SPEED 5-630rpm TORQUE 1500-1650
RATED PRESSURE 25MPa MAX PRESSURE 32MPa
High Light

630rpm piston pump motor

,

32mpa Hydraulic Piston Motor

,

Roadheader Hydraulic Piston Motor

Leave a Message
Product Description

Part Name: China Customized Roadheader Hydraulic Motor



We produce standard hydraulic motors, and also we can design and manufacture transmission according to customer's application. We have a professional technical team and can give your reply at the earlist moment.

Applications:

Mining, engineering machinery, lifting transport equipment, metallurgy, petroleum and coal mines, marine machinery, plastic machinery, geological drilling and other hydraulic transmission of machinery.

NIM series hydraulic motor is manufactured according to Italian standard, the main parts are produced by the processing center and CNC machine processing, all seals and high strength hexagon screws are imported from Germany, Italy and Taiwan, casting parts are made of ductile cast iron with polyester sand, so as to ensure that the performance and appearance quality of the products are better than those produced in China Product level.

NIM series hydraulic motor has so many advantages such as good reliability, high efficiency, long life, wide range speed and low noise. Motors are widely used in plastic injection machine, ships, mines, building metallurgy, petroleum, coal mines, geological drilling, plastic industry and other machinery hydraulic pressure transmission system.

Technical parameters:

​Model

Displacement
mL/r

Pressure MPa

Torque

Speed range rpm

Weight
Kg

Rated pressure

Max pressure

Rated torque
N.m

Unit theoretic torque
N.m/MPa

NIM6-450

452

25

32

1672

67

5-630

57.5



Notes:

1. The recommended filtration accuracy is 25 microns.

2. The viscosity is 15-1000 cSt, can ensure good performance.

3. The leakage port shall be connected to the oil tank separately. maximum pressure of the housing is 0.1Mpa, improved housing can bear 3-5Mpa.

4. The highest horizontal position of the leaking pipe should be higher than that of the motor housing to prevent emptying the oil in the motor housing.

5. Motor housing must be filled with hydraulic oil to prevent damage for the first start.

6. Motor can be installed arbitrarily, installation bracket must have enough rigidity. During installation, you should ensure that the output shaft and the connection drive shaft are concentric. Keep the cleanliness of the connection oil port, do not allow any foreign matter to enter.

7. Reduce the radial, axial load for output shaft which can make the hydraulic motor life extension.

We use the spare parts with excellent quality, essure all the elements work in a good condition and form a good operation. Check some of the pictures below:

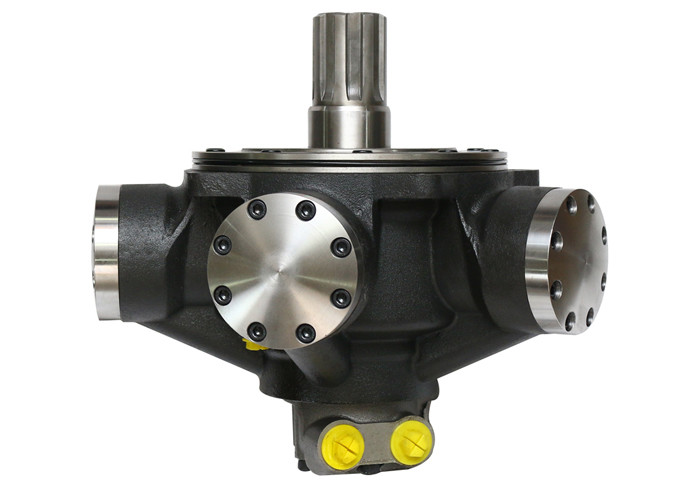

Coal Mines Roadheader Hydraulic Piston Motor 630rpm 32mpa 0

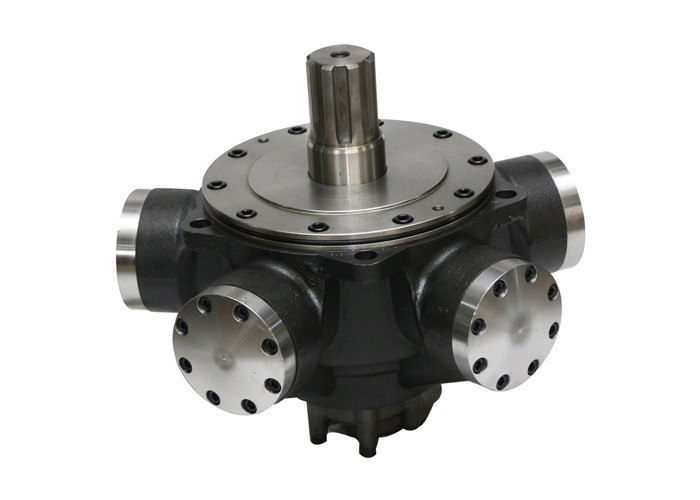

Coal Mines Roadheader Hydraulic Piston Motor 630rpm 32mpa 1

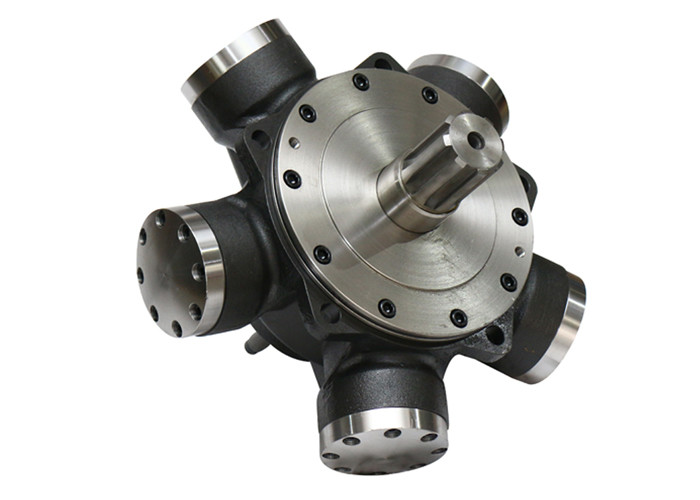

Coal Mines Roadheader Hydraulic Piston Motor 630rpm 32mpa 2
