25mm Lithium Battery Electric Pruning Shears With Brushless Motor

Place of Origin Zhejiang, China
Brand Name WEIWO
Certification ISO9001:2008
Model Number 25mm
Minimum Order Quantity 20 Sets
Price Price can be negotiable
Packaging Details All spare parts are put into tool cabinet. Tool carbinets are put into standard wooden box.
Delivery Time Two weeks after PO confirmed
Payment Terms T/T, L/C
Supply Ability 1000 sets per month
Product Details
Blade Material SK5 Lithium Battery 16.8V 2Ah
Battery Charging Time 1-1.5h Working Time 3-4h
Rated Power 100W Max Power 500W
Max Shear Diameter 25mm Scissor Weight 900g
High Light

16.8V electric garden shears


25mm Electric Pruning Shears


SK5 Electric Pruning Shears

Leave a Message
Product Description

25mm Lithium Battery Electric Pruning Shears With Brushless Motor and 16.8V power



WEIWO Company is specilized in producing electric pruning shears with different shear diameters and types. Shear diameter can be from 20mm to 50mm. We can also improve and customize according to customer's requirements.


Technical parameter:

Working voltage 16.8V
Lithium battery 16.8V2AH
Charger input voltage 100-240V AC,50-60Hz
Battery charge time 1-1.5h
Battery working time 3-4h
Rated power 100W
Max power 500W
Weight 0.9Kg
Max shear diameter 25mm
Working temp. -10℃~60℃


Product descriptions:

Sharp & Durable Blades The professional cordless electric pruning Shears blade is forged from SK5 high carbon steel. This material is sharp, durable and will easily cut branches of 0.98 inches / 25mm.
Electric More Powerful Choosing electric pruning shears instead of cutting the branches with hands power. Just pull the trigger gently to cut the branches automatically. Friendly to arthritis patients and older persons.
More Efficient & Saving Time The shears weigh 980g. Adopt brushless motor and 16.8V power which made that work efficiency are 3-5 times and improve produce. Shockproof and anti-slip, ergonomic design, you will not easily feel tired after longtime using.
Large Battery Capacity for Longer Use Comes with 2pcs 2Ah Battery, which could provide more power when you use this pruning shear. Support more time to use it.
Wide Application

Electric pruner has a wide range of uses, all kinds of gardens, parks, farms, large pastures, orchards, greenhouses,you can cut grape, cherry tree, apple tree,etc.


Product advantages:

1. Higher efficiency: 2-3 times the efficiency of traditional manual pruning. It is highly efficient in two-way trimming and is suitable for trimming or styling.


2. Good durability and low failure rate: the operation is stable, the complete supporting structure is simple, the cutting ability and life of the blade are high, the fault is small, and the adjustment and maintenance are also convenient.


3. Work performance is stable: the trim quality can meet the horticultural requirements. The flatness of the surface is better than that of manual trimming, and there is basically no leakage.


4. Strong safety protection function, personal / mechanical safety protection: the blade follows the wrench, when the card is dead, the circuit self-test program will start the motor monitoring, the protection motor will not burn.

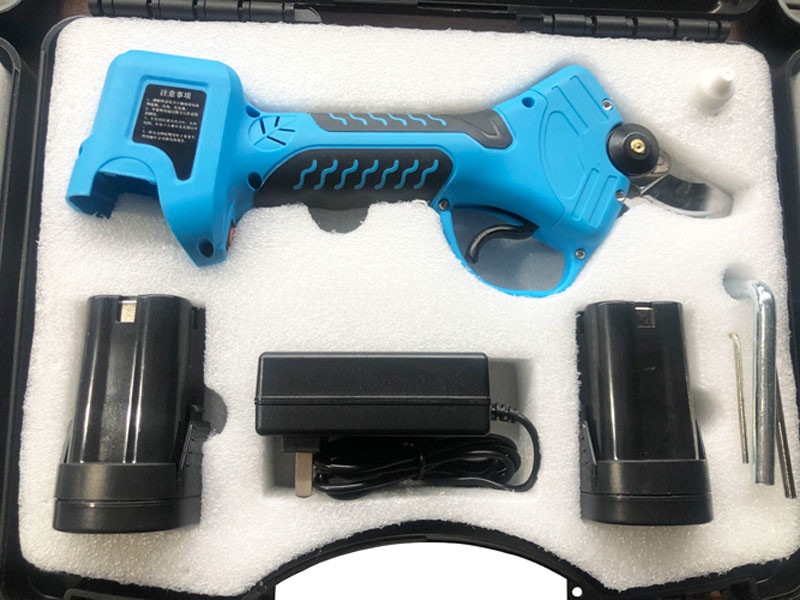

Spare parts in the tool carbinet:

①Electric pruning shear

②Lithium:two pcs


④Tools:socket spanner one pcs, internal hexagonal wrench two pcs

⑤lubricating oil


25mm Lithium Battery Electric Pruning Shears With Brushless Motor 0


Component list and schematic diagram

①Cutting blade

②Fixed blade

③Blade fixing mechanism



⑥Power switch and indicator light

⑦Lithium battery


25mm Lithium Battery Electric Pruning Shears With Brushless Motor 1


Troubleshooting tips

The number of consecutive buzzers fault solution
1 Abnormal battery level Check if the battery is too low
2 Abnormal communication Check whether the cable connection ends of each part are loose
3 Abnormal openings Add oil onto blade
4 Phase Loss Deliver to dealers for maintenance
5 Motor phase line short circuit Check whether there is a short circuit in the cable or connector
Continuous ring Satfy warning Check the body for contact with the blade

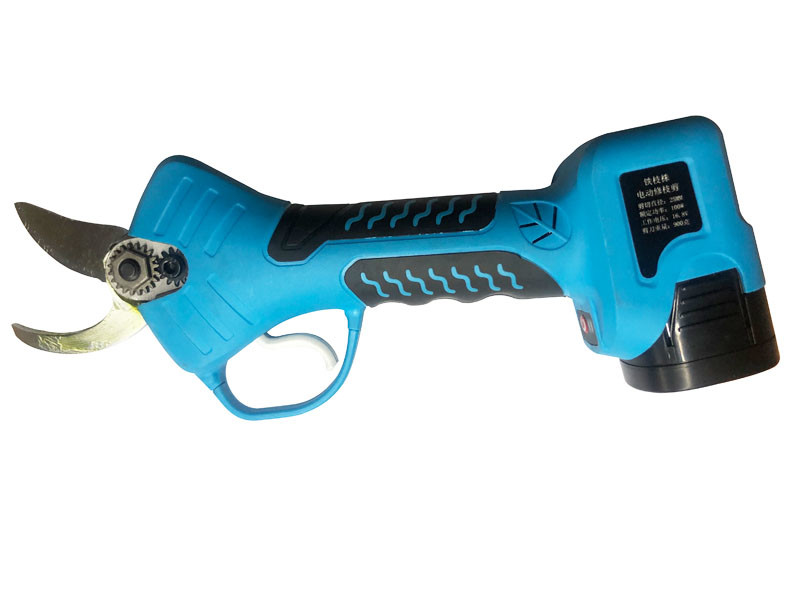

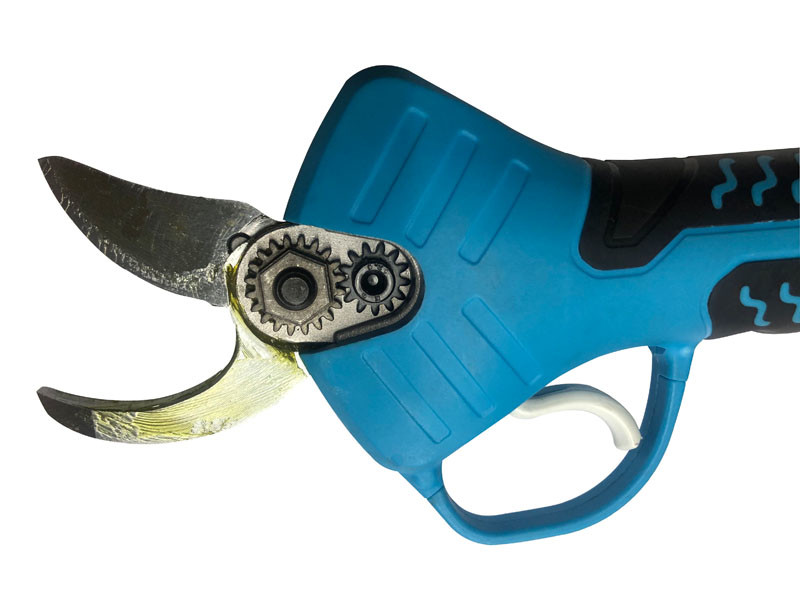

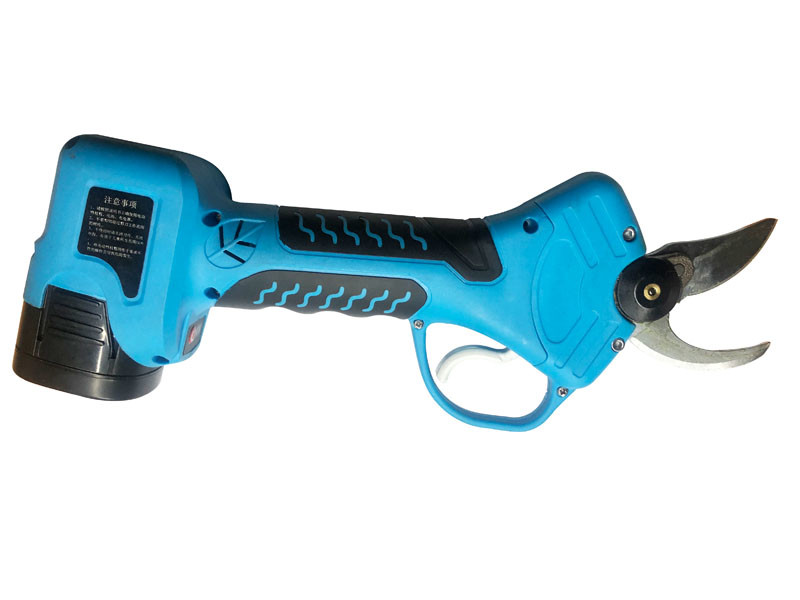

Other pictures:

25mm Lithium Battery Electric Pruning Shears With Brushless Motor 2


25mm Lithium Battery Electric Pruning Shears With Brushless Motor 3
