21V Cordless Agriculture Tools And Equipment Garden Pruner Grape Pruning Scissors
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | 30mm |
| Minimum Order Quantity | 20 Sets |
| Price | Price can be negotiable |
| Packaging Details | All spare parts are put into tool cabinet. Tool carbinets are put into standard wooden box. |
| Delivery Time | Two weeks after PO confirmed |
| Payment Terms | T/T, L/C |
| Supply Ability | 1000 sets per month |
Product Details
| Blade Material | SK5 | Lithium Battery | 21V 2Ah |
|---|---|---|---|
| Battery Charging Time | 1-1.5h | Working Time | 4-6h |
| Rated Power | 100W | Max Power | 500W |
| Max Shear Diameter | 30mm | Scissor Weight | 1000g |
| High Light | 21V Agriculture Tools And Equipment,30mm grape pruning scissors,SK5 grape pruning scissors |
||
Product Description

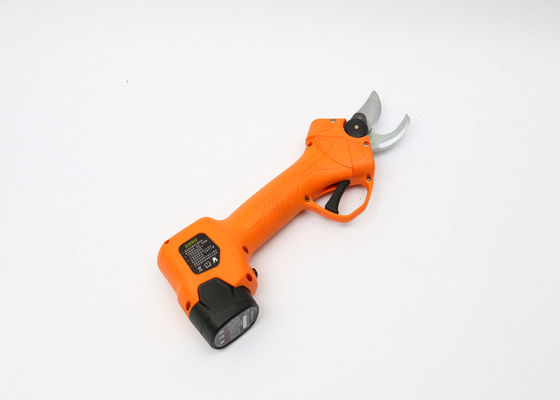

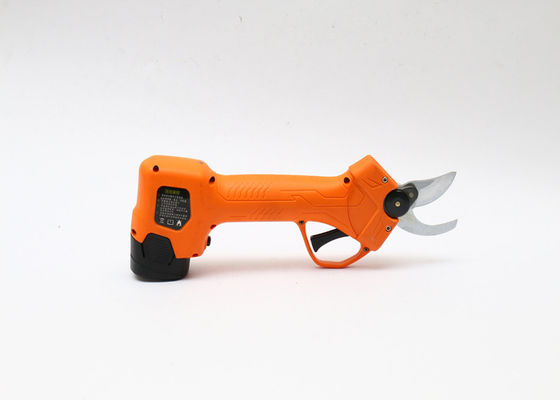

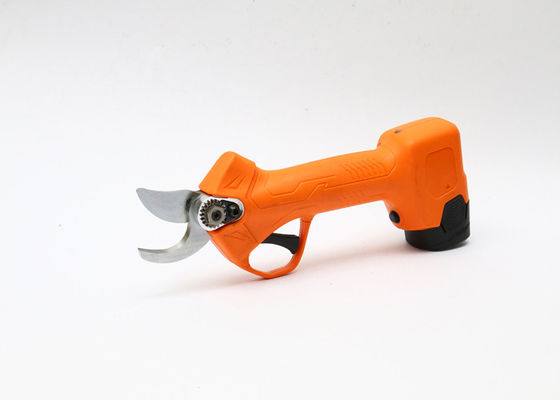

21V Cordless Portable Electric Grape Pruning Shear For Garden Pruner
WEIWO Company is specilized in producing electric pruning shears with different shear diameters and types. Shear diameter can be from 20mm to 50mm. We can also improve and customize according to customer's requirements.
Technical parameter:
| Grade | Industrial |
| Customized support | OEM |
| Power Source | Electric Hedge Trimmers |
| Work Voltage | 21V/16.8V |
| Capacity | 2AH |
| Voltage | AC1 10V~240V |
| Charging period | 2-2.5Hours |
| Operate time | 4-6Hours |
| Power rating | 150W |
| Utimate output | 600W |
| Weight | 1000g |
Product descriptions:
| Sharp & Durable Blades | The professional cordless electric pruning Shears blade is forged from SK5 high carbon steel. This material is sharp, durable and will easily cut branches of 0.98 inches / 25mm. |
| Electric More Powerful | Choosing electric pruning shears instead of cutting the branches with hands power. Just pull the trigger gently to cut the branches automatically. Friendly to arthritis patients and older persons. |
| More Efficient & Saving Time | The shears weigh 980g. Adopt brushless motor and 16.8V power which made that work efficiency are 3-5 times and improve produce. Shockproof and anti-slip, ergonomic design, you will not easily feel tired after longtime using. |
| Large Battery Capacity for Longer Use | Comes with 2pcs 2Ah Battery, which could provide more power when you use this pruning shear. Support more time to use it. |
| Wide Application |
Electric pruner has a wide range of uses, all kinds of gardens, parks, farms, large pastures, orchards, greenhouses,you can cut grape, cherry tree, apple tree,etc. |
Product advantages:
1. Higher efficiency: 2-3 times the efficiency of traditional manual pruning. It is highly efficient in two-way trimming and is suitable for trimming or styling.
2. Good durability and low failure rate: the operation is stable, the complete supporting structure is simple, the cutting ability and life of the blade are high, the fault is small, and the adjustment and maintenance are also convenient.
3. Work performance is stable: the trim quality can meet the horticultural requirements. The flatness of the surface is better than that of manual trimming, and there is basically no leakage.
4. Strong safety protection function, personal / mechanical safety protection: the blade follows the wrench, when the card is dead, the circuit self-test program will start the motor monitoring, the protection motor will not burn.
5. Margin size conversion
Press the trigger for a long time, and when you hear the sound of “DiDi” twice, release the trigger immediately, and the size of the margin will be automatically converted.
Spare parts in the tool carbinet:
①Electric pruning shear
②Lithium:two pcs
③Charger
④Tools:socket spanner one pcs, internal hexagonal wrench two pcs
⑤lubricating oil
Component list and schematic diagram
①Cutting blade
②Fixed blade
③Blade fixing mechanism
④Trigger
⑤Knob
⑥Power switch and indicator light
⑦Lithium battery
Troubleshooting tips
| The number of consecutive buzzers | fault | solution |
| 1 | Abnormal battery level | Check if the battery is too low |
| 2 | Abnormal communication | Check whether the cable connection ends of each part are loose |
| 3 | Abnormal openings | Add oil onto blade |
| 4 | Phase Loss | Deliver to dealers for maintenance |
| 5 | Motor phase line short circuit | Check whether there is a short circuit in the cable or connector |
| Continuous ring | Satfy warning | Check the body for contact with the blade |
Other pictures:
 |
