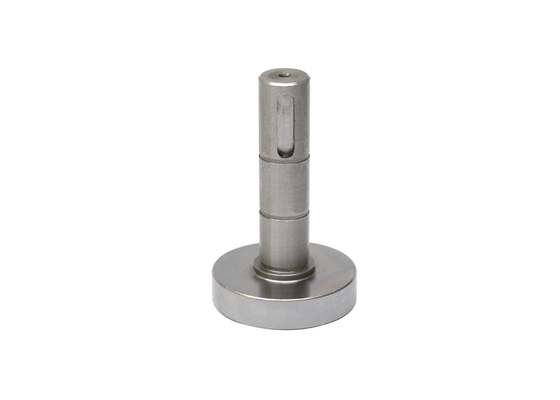

Spindle Motor Chrome Platin Machining Shaft Core Parts OEM
Place of Origin | NINGBO |
---|---|
Brand Name | WEIWO |
Certification | IATF16949 |
Model Number | SK-0218Y |
Minimum Order Quantity | 150 sets |
Price | USD0.30-0.50 /set |
Packaging Details | 10-50 PCS in one carton or plastic blister tray, outside wooden pallet or wooden box. |
Delivery Time | 15-25days after PO confirmed |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 500 sets per day |
Structure | Flexible | Total Length | 160MM |
---|---|---|---|
Type | CNC Shaft Machining | Shape | Regula Or Irregular |
Material | Steel, Metal | Core Components | Motor |
High Light | Chrome Plating Mechanical Core Shafts,CNC Machining Mechanical Core Shafts,OEM Mechanical Core Shafts |
OEM Customized Precision Processing Spindle Motor Machining Shaft Core Parts
Material can be:
45# steel, 35# steel, stainless steel, 40Cr, 42Cr, etc.
Size:
size of the inner hole can be customized according to the demand
Performance process:
surface quenching, quenching and tempering heat treatment
surface process:
chromium plating, nitride and other processes, according to the drawings can be detailed
Place Of Origin | Ningbo,China |
Product Type | Shaft parts,motor shaft parts,roller shaft parts |
Material | steel,carbon steel,stainless steel |
Surface Treatment | heat treatment |
Processing Technology | CNC turning,CNC milling,external grinding |
Size | customized |
Tolerance | customized |
Drawing Format | PDF,DWG,step |
Application | Automotive, Automation, Test systems, Sensors, Medical, Sports, Consumer, Home appliance,Electronic, Pumps, Computers, Power and energy, Architecture, Printing, Food, Textile machinery, Optical, Lighting, Security and safety, AOI, SMT equipment, etc. |
Package | protective packing |
sample | 7—10 days |
Certificate | ISO,SGS |
MOQ | 500pcs |
Production Capacity | 30,000 pieces per month |
Delivery time | 25-30 days after receive the pre-payments |
Payment Terms | T/T,Paypal,Western Union,L/C or Trade Assurance 30% deposit & balance before shipping. |
Our Service | CNC Machining,Plastic Injection,Stamping,Die Casting,Silicone And Rubber,Aluminum Extrusion,Mould Making,etc |
Descriptions of Chrome Plating Mechanical Core Shafts
Outer Diameter | Ø20(-0.01/-0.04) |
Total Length | 310mm |
Steel Material | 45# DIN CK45/JIS 45C and 35# DIN CK35/JIS 35C |
Chrome Hardness | 950 HV Min |
Roughness | Rz 0.2 Micron Max |
Straightness | 0.2/1000mm |
Supply condition |
1. Hard Chrome Plated |
2. Induction Hardened | |
3. Dehydrogenation & Tempered |
Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
Description:
Surface treatment | Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding… |
Quality Assurance | IATF16949:2016 certified/SGS/TUV |
Drawing formats | Solid works, Pro/Engineer, AutoCAD, UG, PDF |
Equipment used |
Japan 5-axis TSUGAMI-B-038T CNC turing machine |
Japan 4-axis GAMA DMN-650 machining center | |
Cylindrical Bore Grinders | |
Wire EDM | |
Magnetic grinding machine/ grinding Vibration machining | |
Oven | |
Ultrasonic cleaning machine | |
Vacuum packing machine | |
Inspection device |
VMS2.5d measuring machine |
Japan Mitutoyo tool microscope | |
Japan Mitutoyo digimatic micrometer | |
Japan Mitutoyo hardness tester | |
Japan Mitutoyo calipers | |
Japan Mitutoyo dial indicator | |
Japan Mitutoyo height measuring tool | |
Japan Mitutoyo tubular inside micrometer | |
Japan Marble platform | |
Go No Go gauge | |
Electronic digital display caliper Ring gauges | |
Industry used |
Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication… |
Advantages:
1. Always being Reliable, Professional and Proactive.
2. More than 15 years in the CNC precision machining industry.
3. Japan Tsugami CNC machines, with cutting edge CNC solution.
4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.
Other questions:
Q1. Dispatch seaport?
A1: Guangzhou, Ningbo, Shanghai or others
Q2. What other service can you offer?
A2: OEM service, welcome to send us the design drawing to develop a new product line.
Customized service, we can help you to design your packing.
Q3. How can I get the warranty?
A3: During the warranty period, any products damaged because of the quality problem can be changed for free. We provide one year warranty start from the purchase date, but it does not include damages result from any of the following situations:
Racing accidents
Improper installation
Disassembly or modifications

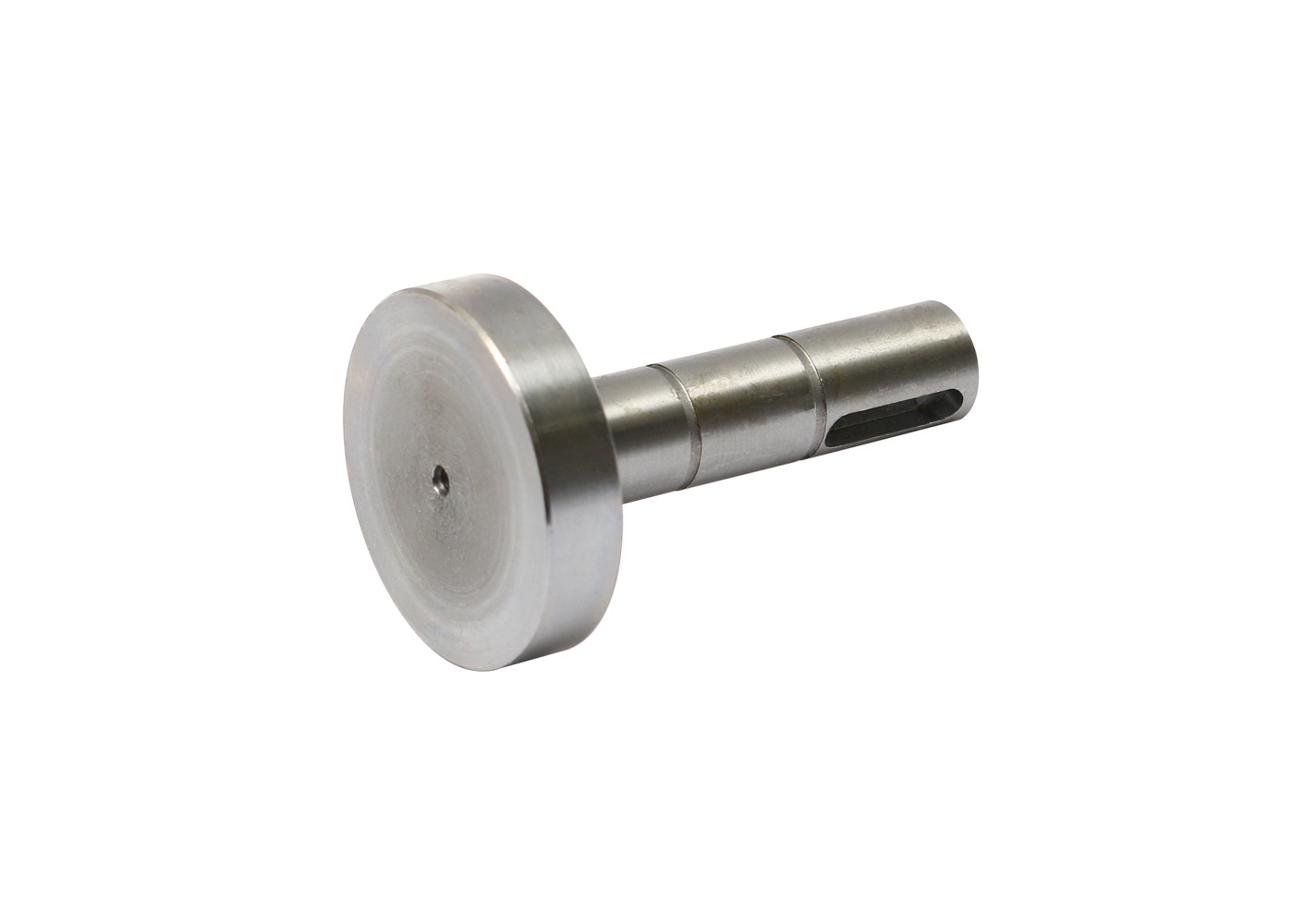

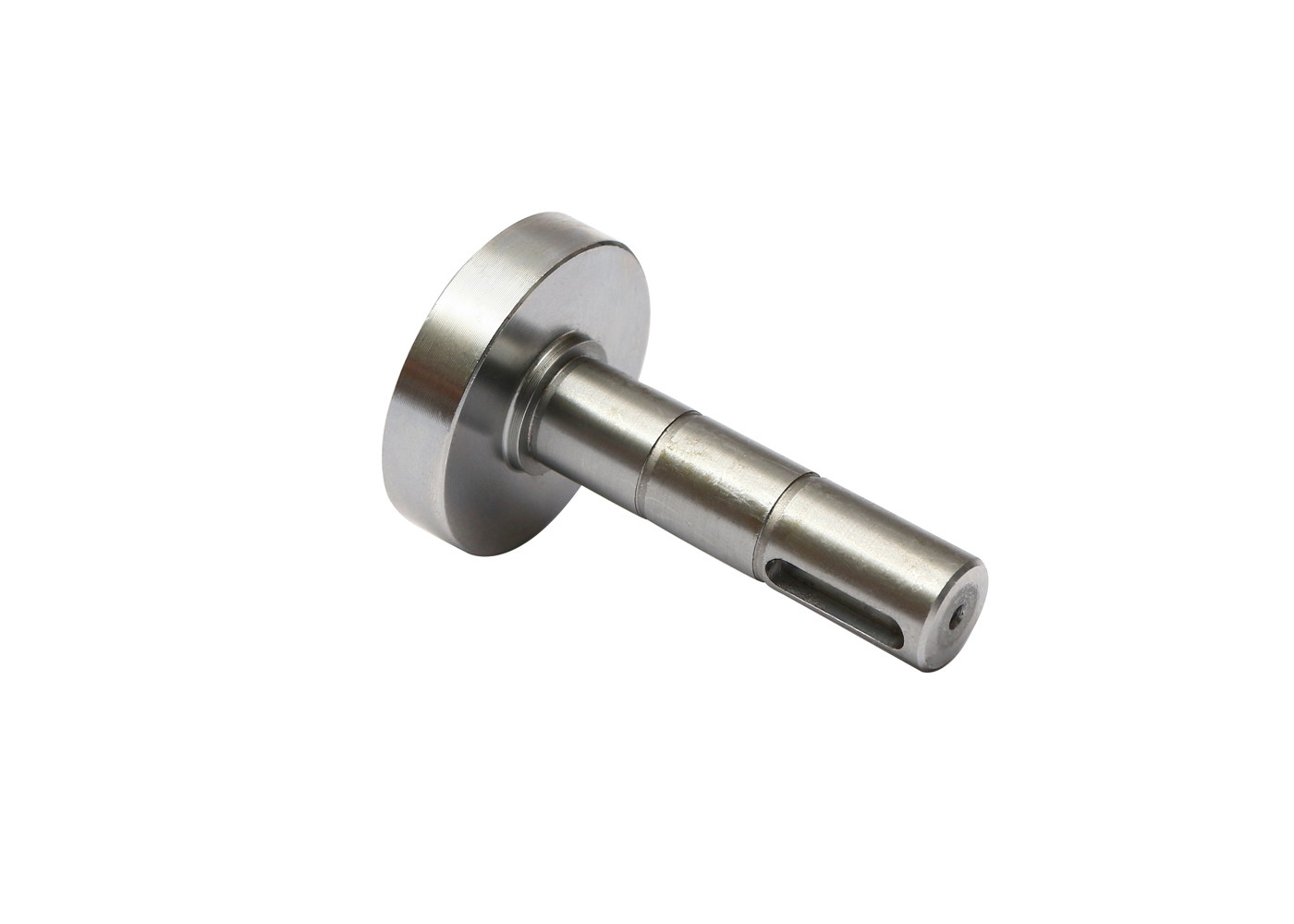

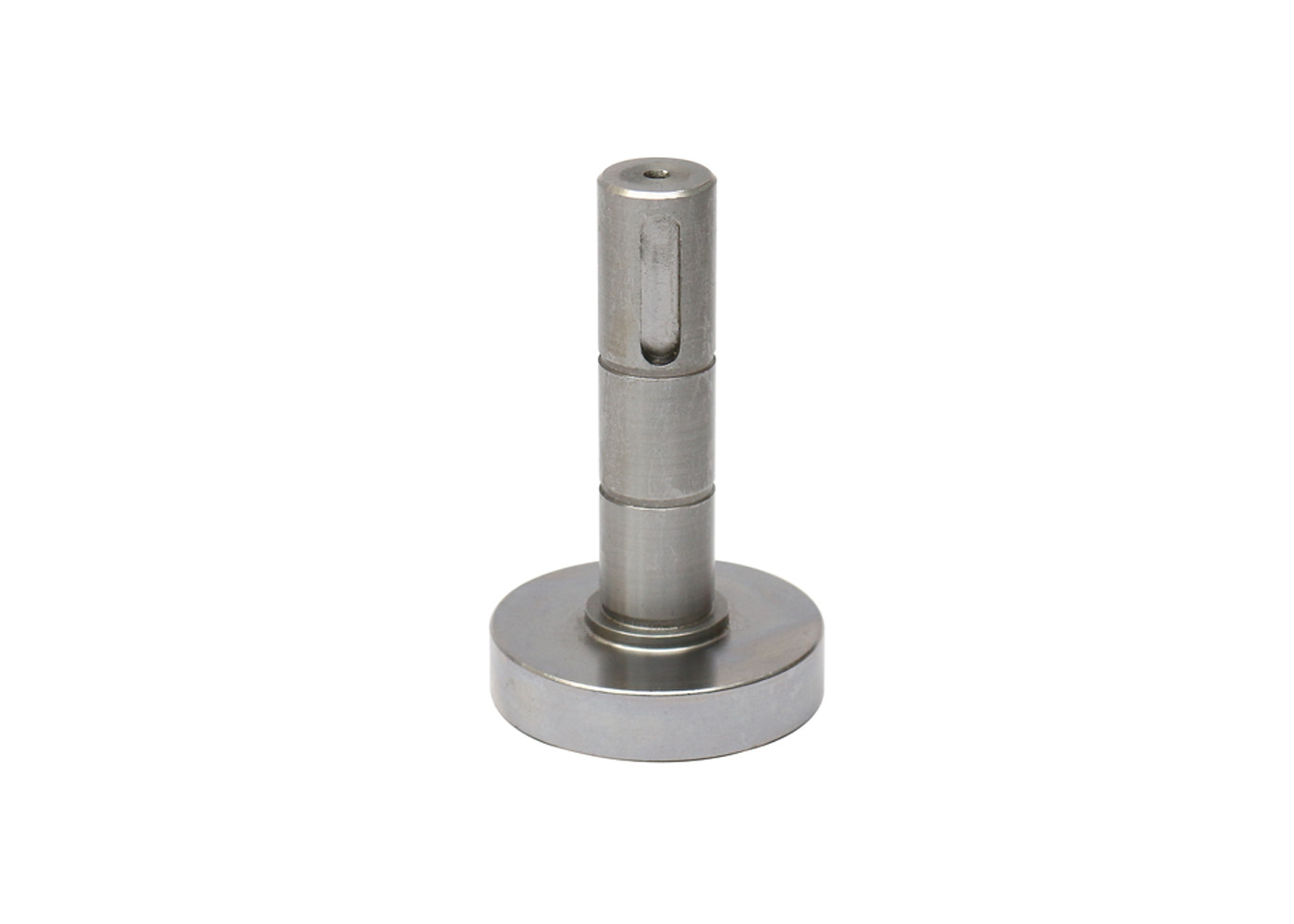

Other Picture:
