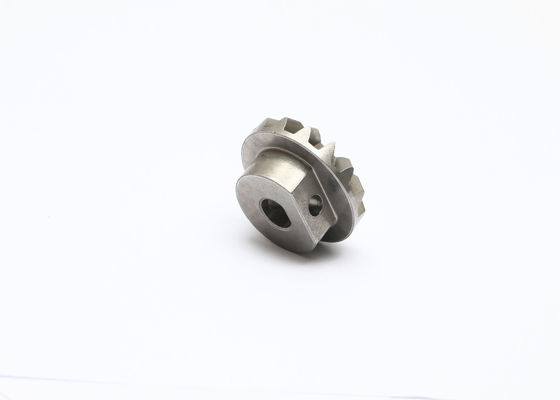

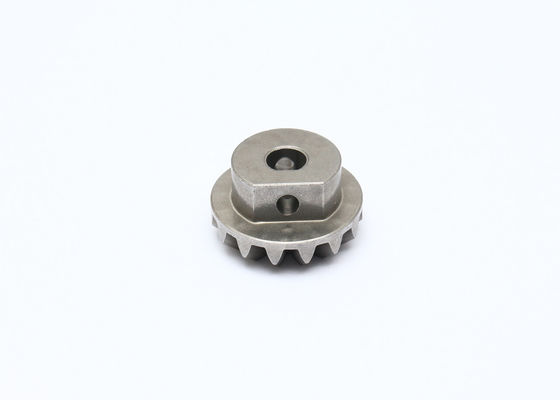

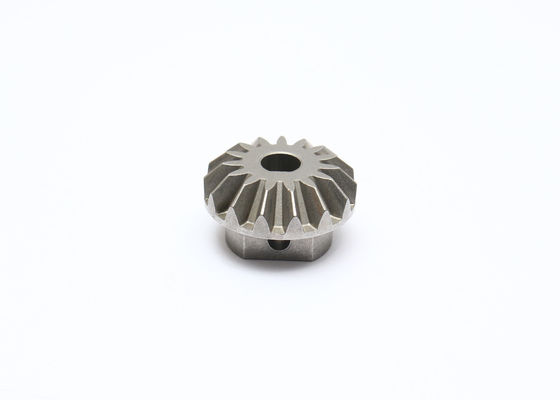

Iron Based Powder Metallurgy Parts Oil Pump Straight Bevel Gear Set Density 6.4
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | WW-PM0711s |
| Minimum Order Quantity | 1003pcs |
| Price | negotiation |
| Packaging Details | Packed in plastic box one by one, then in carton with standard export package |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | Powder Metallurgy | Material | Iron Based, Iron, |
|---|---|---|---|
| Application | Oil Pump | Molds Time | 25 Days |
| Plating | No Steam | Press | 100T |
| Dimension | According To Drawings | Package | Standard |
| High Light | Iron PM bevel gear set,6.4 Powder Metallurgy Parts,Density 6.4 bevel gear set |
||
Product Description
Density 6.4 Powder Metallurgy Parts Bevel Gear Bevel Pinion Pass TS16949
Powder Metallurgy (PM) is one kind of manufacturing technology which use the metal powder, through compacting molding and sintering, to make various structural components.
|
Properties |
Micro Hardness: 60 HRC Max. |
| Tensile Strength: 1250 Mpa Max. | |
| Yield Strength: 700 Mpa Max. | |
| Apparent Hardness: 20-43 HRC | |
| Density: 6.4-7.4 g/cm3 |
Test Ability
1. Metallurgic microscope
2. Hydraulic universal material tester
3. Hardness testers
4. Pneumatic measuring instrument
5. Measuring projector
6. Gear testing instrument
Apperance:
No crumbling, cracks, exfoliation, voids, metal pitting and other defects
Unspecified Tolerance:
SO 2768 - m / H14, h14, +- IT14/2
Raw Material
Carbon Steel, Stainless Steel, Copper , Aluminum or depend on requirement
Surface Finishing
Zinc Plated , Copper plating, nickel plating ,Passivation, polishing, painting, spraying , etc
Material Standard
MPIF 35, DIN 30910, JIS Z2550
Specifications:
1. Material: carbon steel, alloy steel or stainless steel, Iron.
2. Dimension: customer designs and sizes accepted.
3. Process: powder metallurgy
4. Surface: spray paint, sandblasting, anti-rust liquid, electro galvanized or hot dipped galvanized finished with powder coating
Description:
Good quality and properties powder metal products with high crushing strength
Size: 20.01 * 13 * 8.5
Surface Treatment: Steam oxidation
Density: 6.4-7.4g/cm3
1. Our products passed TS16949 ISO-9001: 2000 quality management system verification
2. We own exquisite and advanced equipment, professional technical designer and rich producing experience
3. We can produce different size and shapes base on your drawing and samples.
4. Best quality, competitive price, shortest delivery time and good service.
5. Products are widely used in automotive, textile machine, sewing machine, gasoline generator, power tools, oil pump rotor, clutch, oilless bearing, cu base products, stainless steels and so on.
Our service
1. No question refund within 3 days.
2. Well trained and experienced staffs at your service.
3. Short lead time.
4. International standard matched
5. Non-standard / standard / OEM / ODM / customized service provided.
6. Small Quantity available.
7. Designed in accordance with customers' request.
8. Packed and delivered by customers' requirement
Applications:
Gearbox, transmission case, electric tool
Competitive Advantage:
1, The mass production cycle is short,low cost.
2, High material utilization, don’t need or just a little amount of maching.
3, Using mold once molding, small tolerance, high product consistency.
4, Gap can be immersed in lubricating oil, which has better wear resistance and damping capacity.
Manufacture Process:
Picture show:
|
