Automobile Wide Groove Sinter Metal Piston with PTFE bands used in shock absorber
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | IATF16949:2016 |
| Model Number | Customized sinter piston |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | 1. put piston one by one into the environmental plastic box 2. put six boxes into the standard carton |
| Delivery Time | 30 working days for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | Sinter Piston | Material | Iron Based, Iron |
|---|---|---|---|
| Application | Shock Absorber | Molds Time | 25 Days |
| Plating | Steam Treatment | Process | CNC Machining |
| Hardness | HRB75 | Density | 6.8g/cm3 |
| High Light | powder metallurgy components,PM parts |
||
Product Description
Automobile Wide Groove Sinter Metal Piston with PTFE bands used in shock absorber
Manufacturers of PTFE Piston Bands
Used in shock absorber struts
Poly Fluoro Piston Bands are designed for hydraulic and pneumatic equipment. Its unique
design prevents equipment seizures which can arise with other forms of guidance materials.
Specifications:
|
Material |
P/M Copper and Copper Alloys |
|
P/M Iron and Carbon Steel |
|
|
Iron And Carbon Steel |
|
|
Iron-Copper And Copper Steel |
|
|
Sinter Hardened Steel |
|
|
Commix Low Alloy Steel |
|
|
Surface treatment |
Sand Blasting |
|
Zinc/Chrome Plating |
|
|
Rust-preventive treatment (steaming treating) |
|
|
Painting |
|
|
Electrophoresis |
|
|
Powder Coating |
Description:
Shock absorber piston
Conventional design
With PTFE banded on OD
We can produce according to the customer's drawing
Middle part (sinter part), we can use the material as the customer's demand, normally is FC-0205 or FC-0208, Carbon content is 0.1%, copper
content is 3% or other choice
We are specializing in producing damper pistons. Our products are not only selling well in many cities in
China, but also exported to many overseas countries and regions, such as Africa, South America,
Southeast Asia and the Middle East. Our enterprise is trying our best to provide higher quality products at
lower price, and bring you satisfactory customer service. We always optimize our products to meet
different requirements of customers. We also provide OEM services. We do business in good faith and
enjoy a good reputation for our good after-sales service.
After PTFE banding processing performance can satisfy the following:
1) Stress cracking test 150ºС*500 hours
2) Drawing load test: 39.2 MPa x 10,000cycles
3) High velocity operation durability test: 1,000,000 cycles
4) Regular operating durability test: 3,000,000 cycles
No band peel off or breakage after test.
Applications:
1. Automotive Part
2. Motorcycle Part
3. Heavy duty trucks
Competitive Advantage:
|
Complex multi-level design |
|
Can absorb most shake when driving |
|
Significant increase in lifetime |
|
Flexile and convenient logistic service |
|
Standard material according to technical drawing |
|
Increased seal durability |

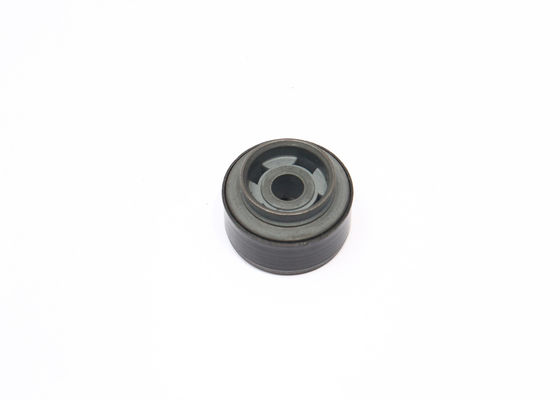

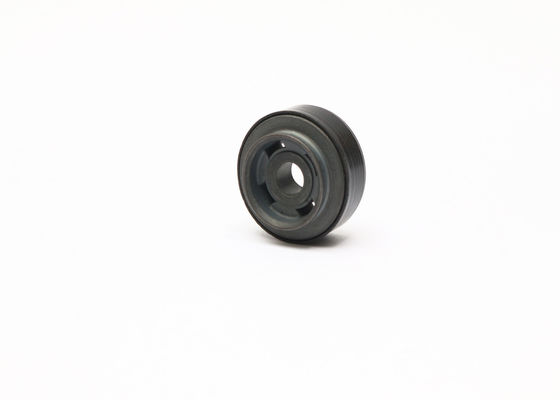

Picture show:
 |
