Black PTFE Banded Piston With Low Friction Unique Holes

Place of Origin China
Brand Name WEIWO
Certification IATF16949 : 2016
Model Number Φ27mm
Minimum Order Quantity 2,000pcs
Price negotiation
Packaging Details According to customer’s demand
Delivery Time One week after payment
Payment Terms T/T, Western Union, L/C
Supply Ability 50,000 pcs per month
Product Details
Product Name Banded Piston Filler Of Bands Graphite Carbon
Material Of Bands PTFE Color Black
Application Car Shocks Density Of Bands 2.06-2.19 G/cm3
Outer Diameter 27.05mm Friction Coef. 0.18
High Light

27mm Banded Piston

,

PTFE Banded Piston

,

graphite carbon Banded Piston

Leave a Message
Product Description

Unique holes design 32# PTFE banded piston with low friction and PPAP documents





Specifications:

Physical performance for shock piston

tensile strength

More than 18MPa

elongation @ break

More than 160%

shore hardness (bands)

57 - 61

density

2.06 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.2

hardness (sinter piston)

HRB60-80

Technical requirements for sinter piston

Raw material F50 - U3 - 66 or FC - 0208

Steam treatment

OD tested by digital air gauge



Our piston can do the following test :


1)stress cracking test,150ºС*500 hours


2)drawing load test:39.2 MPa*10,000cycles


3)high vilocity operation,durability test:1,000,000 cycles


4)regular operating durability test:3,000,000 cycles


No band peel off or breakage after test.



Description:



PTFE bands Powder metal piston 27mm shock absorber Suspension Piston for shock absorber



No foreign material or burr for PTFE disc



Product Name:Powder Metal Part - Piston for Shock Absorber



Raw Materials:Fe-C-Cu for sinter piston / PTFE + carbon for PTFE disc



100% test of pistons’ appearance



No sinter powder on the pistons



Processing for sinter piston and PTFE banding



Quality Control: 100% inspection on critical dimensions



Production Output: 100,000 pieces/month



Experience: Many years of professional OEM service



Material: Aluminum, brass, stainless steel, copper, alloys,etc.



Supply chain process: PPAP



Ability: To develop hundreds of news parts annually



Manufacturability



1. Auto Mechanical Press: 50T, 100T, 140T



2. Hydraulic Press: 100T, 315T, 600T, 800T



3. Six sinter furnaces, including one harden Sinter Furnace



4. Heat treatment: Carbonitriding quenching and high frequency quenching



5. Ultrasonic clearing and auto burring



6. In-house tooling making: EDM, wire cutting machine



7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.



Applications:



Car or motorbike shock absorbers



Competitive Advantage:



1) Our factory has been accredited the ISO9001:2008 certificate.



2) Using different raw materials.



3) Have our own plant, can tell you the progress of production accurately.



4) We can make the products according to customer's drawings.

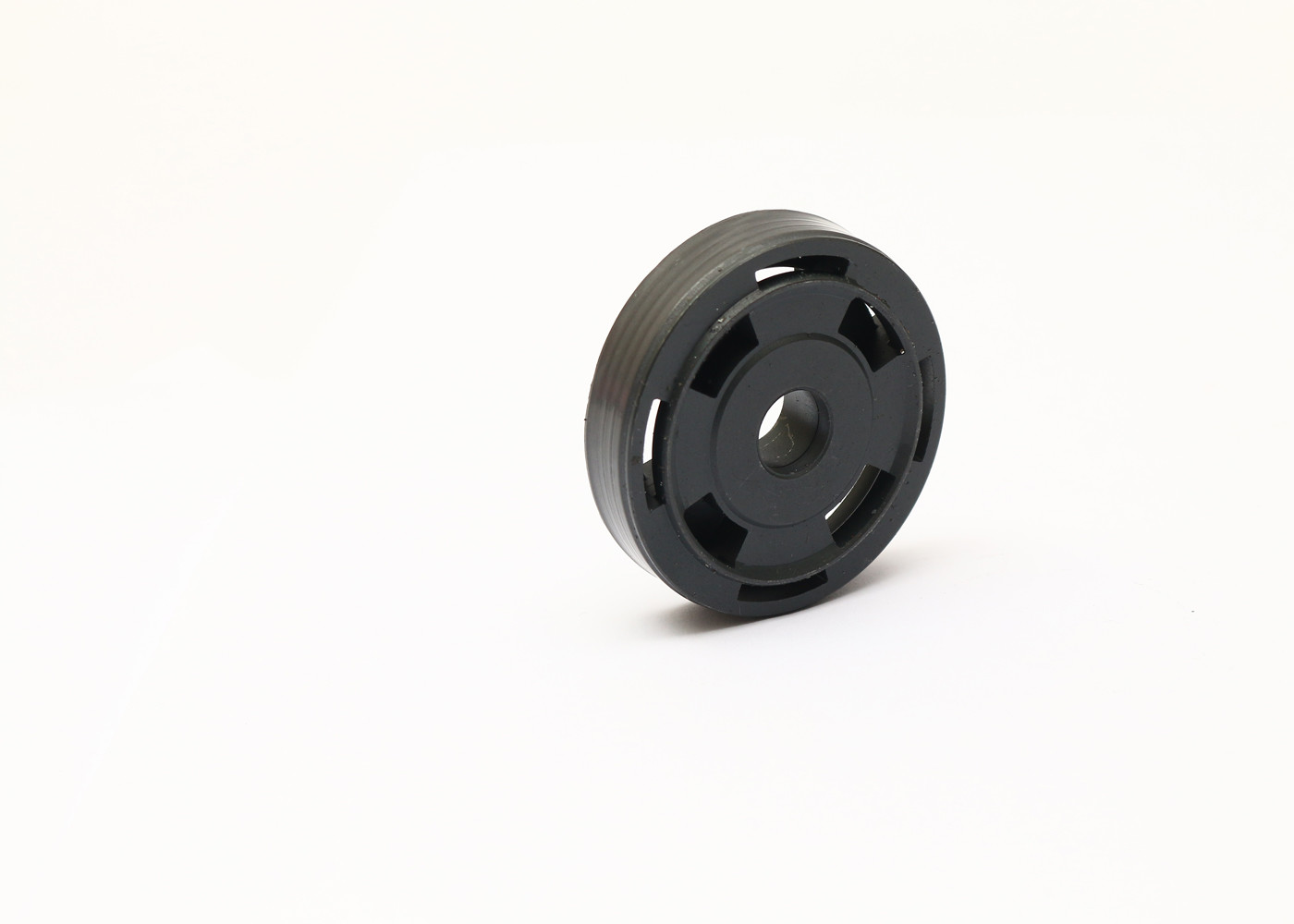

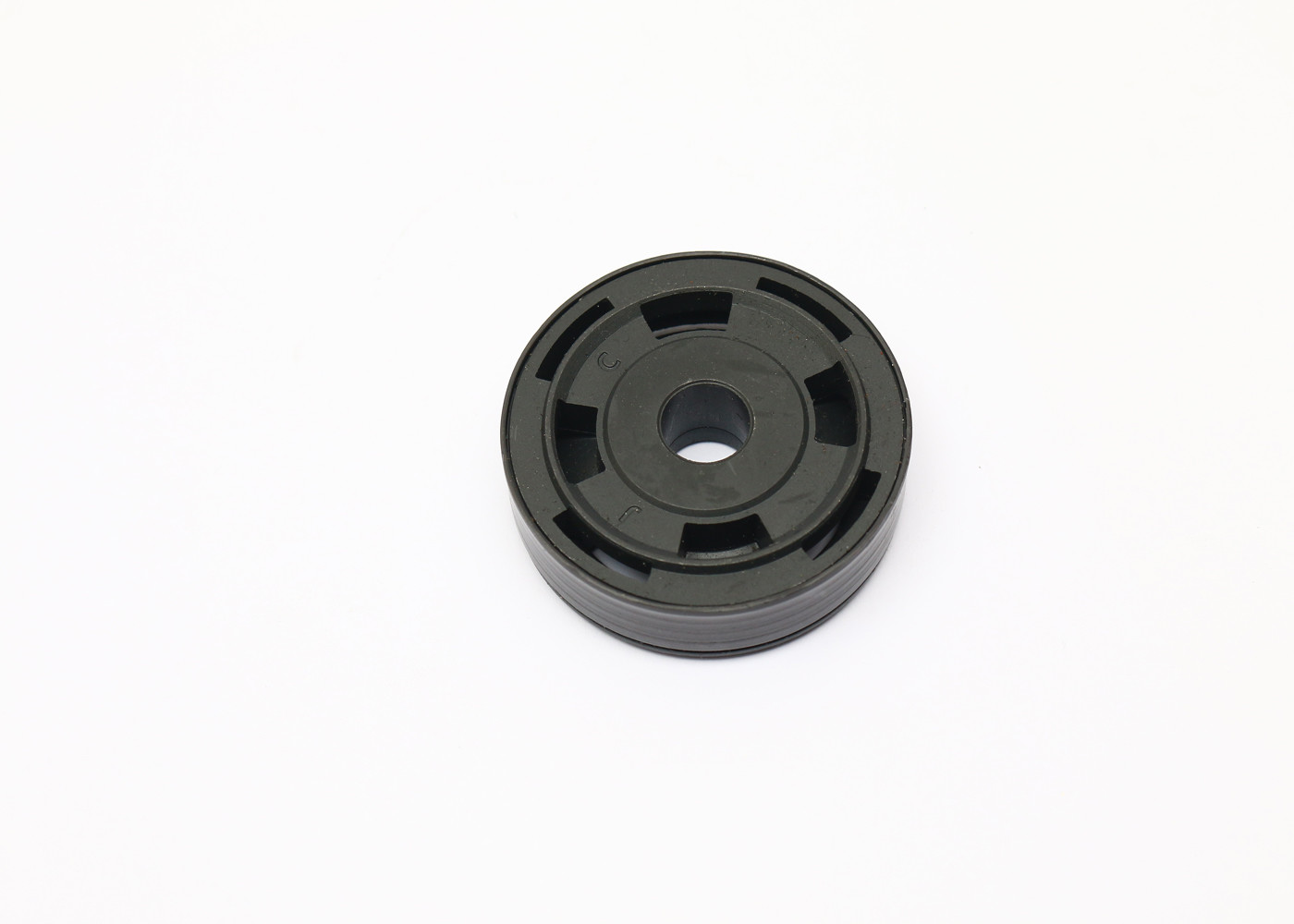

Picture show:

Black PTFE Banded Piston With Low Friction Unique Holes 0
