2mm Sinter Powder Metallurgy Components With Valve Plate

Place of Origin China
Brand Name WEIWO
Certification ISO9001:2008
Model Number Customized powder metallurgy
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details Packed in plastic box one by one, then in carton with standard export package
Delivery Time 30 working days for new samples
Payment Terms T/T, Western Union, L/C
Supply Ability 50,000pcs per month
Product Details
Product Name Sinter Metal Parts Material Fe-C-Cu
Application Industry Molds Time 25 Days
Plating Steam Treat Press 100T
High Light

Valve Plate Sinter metal parts


2mm Powder Metallurgy Components


Steam treat Powder Metallurgy Components

Leave a Message
Product Description

2 mm Thick CPK > 1.67 Sinter Powder Metallurgy Parts Used Valve Plate





Iron base, brass base steel


powder metal press, turning, milling, grinding, drilling, tapping, boring, EDM, wire cutting, heat treatment

Surface Treatment

Zinc plating, impregnation, rust preventive


Mould, Automobile, Motorcycle Engine Components, Brake System Parts, etc




1. Density ≥ 6.5 g/cm3


2. Hardness: HRC  ≥ 50


3. TS:  ≥ 980N/ MM2


4. Carbonitriding quenching


5. With high precision




Parts Name: Sintered Power Metal


Application: Sintered Clutch of Power Tools


Material: Fe/C/Cu


Heat Treatment Requirements: Hv 550 0.2mm


Weight: 12g


Type: Hand Tools, Combination, Saws, Screwdrivers, Wrench and so on


Production Capability: 150,000/ Month


Export Markets: Global


What are the advantages of sintering


1. Very high and uniform purity can be easily achieved


2. The simple fabrication process retains purity


3. Grain size is easily controlled


4. No deformation is needed to produce directional elongation of grains


5. Void density can be controlled


6. Objects can be created in any shape


7. Shapes can be produced that not be made by any other process


Product uniqueness


Some characteristic of the product (e.g. combination of chemical constituents, control over microstructure,


control over porosity etc.) can be created by starting from a powder feedstock, which would be very


difficult or sometimes impossible in conventional processing




Consumer electronics products, medical devices,


Sport equipment, motorcycle, automobile, aerial photography,


Model plane and communication


Competitive Advantage:




Experience Equipments

High-low temperature equipment

vibration test stand

Durability test

Performance simulation test bench

X-ray material testing equipment

Hardness testing

Roughness testing

Other special customized experience equipments for powder metallurgy parts.

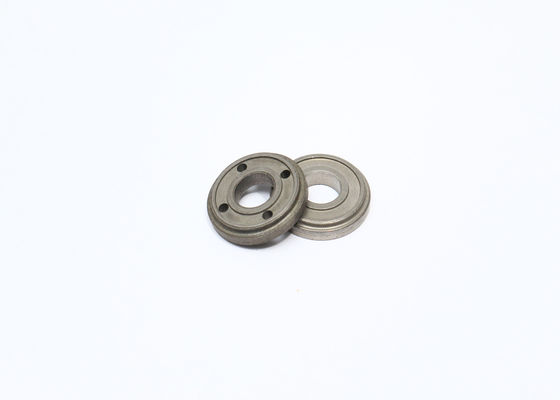

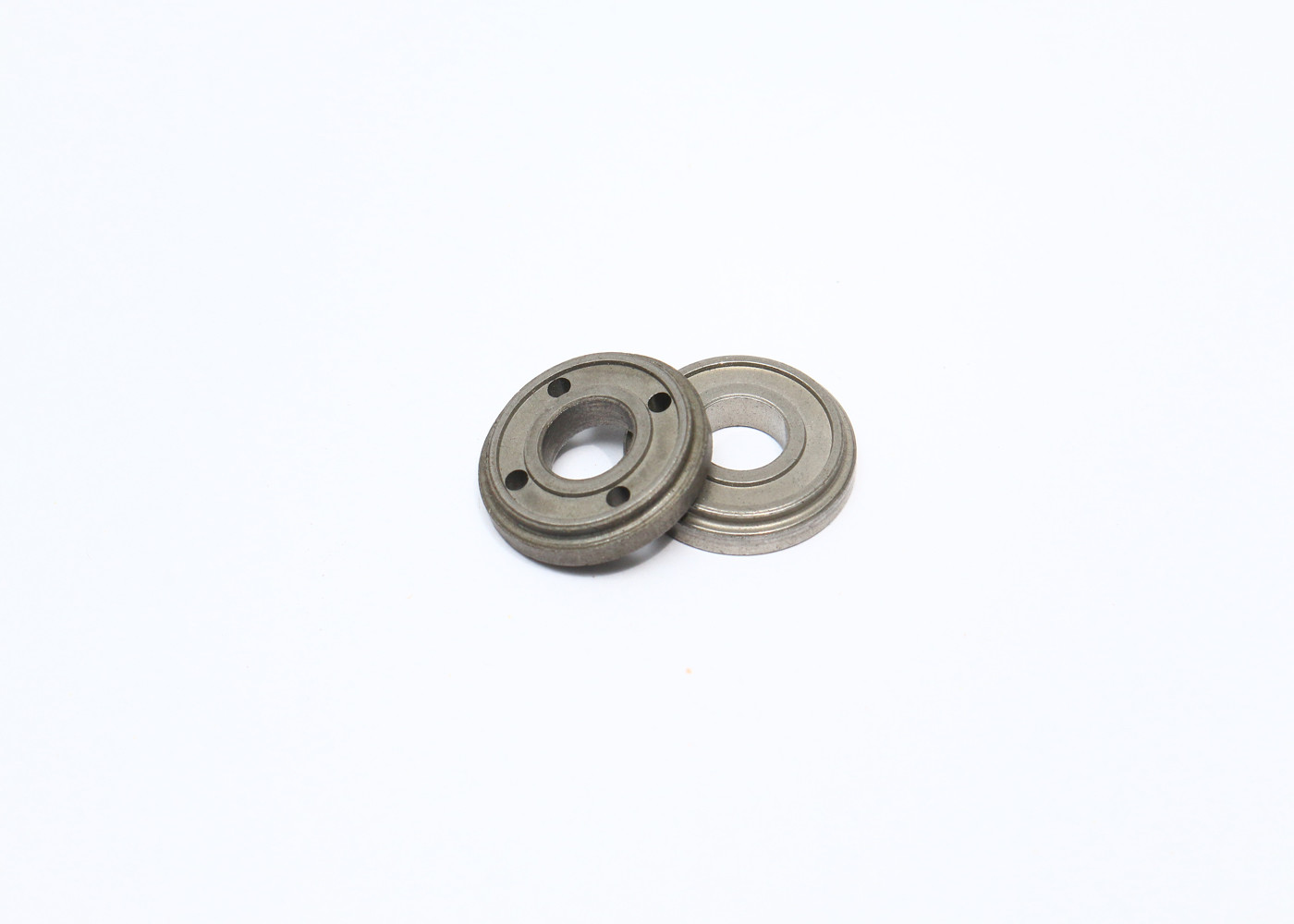

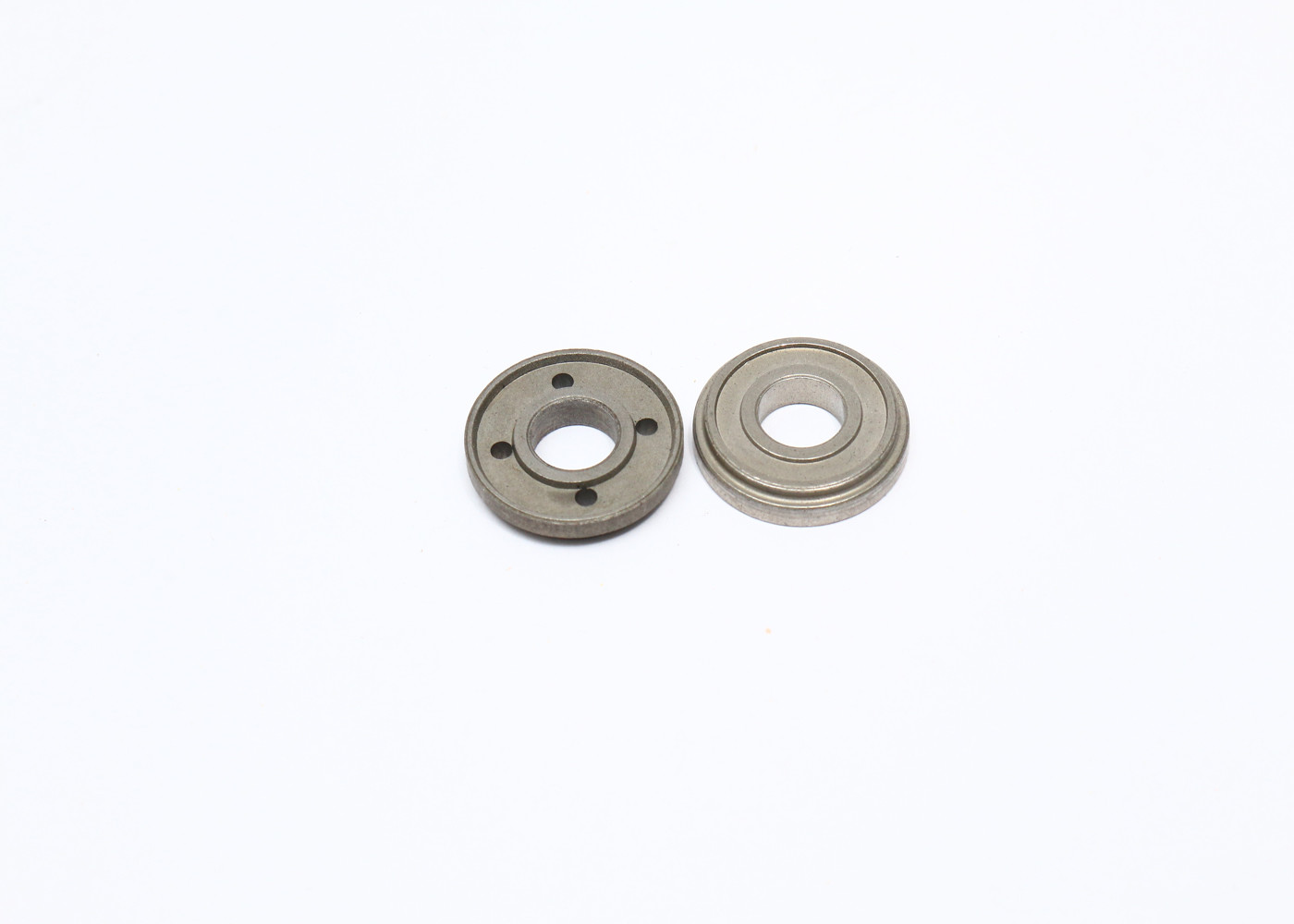

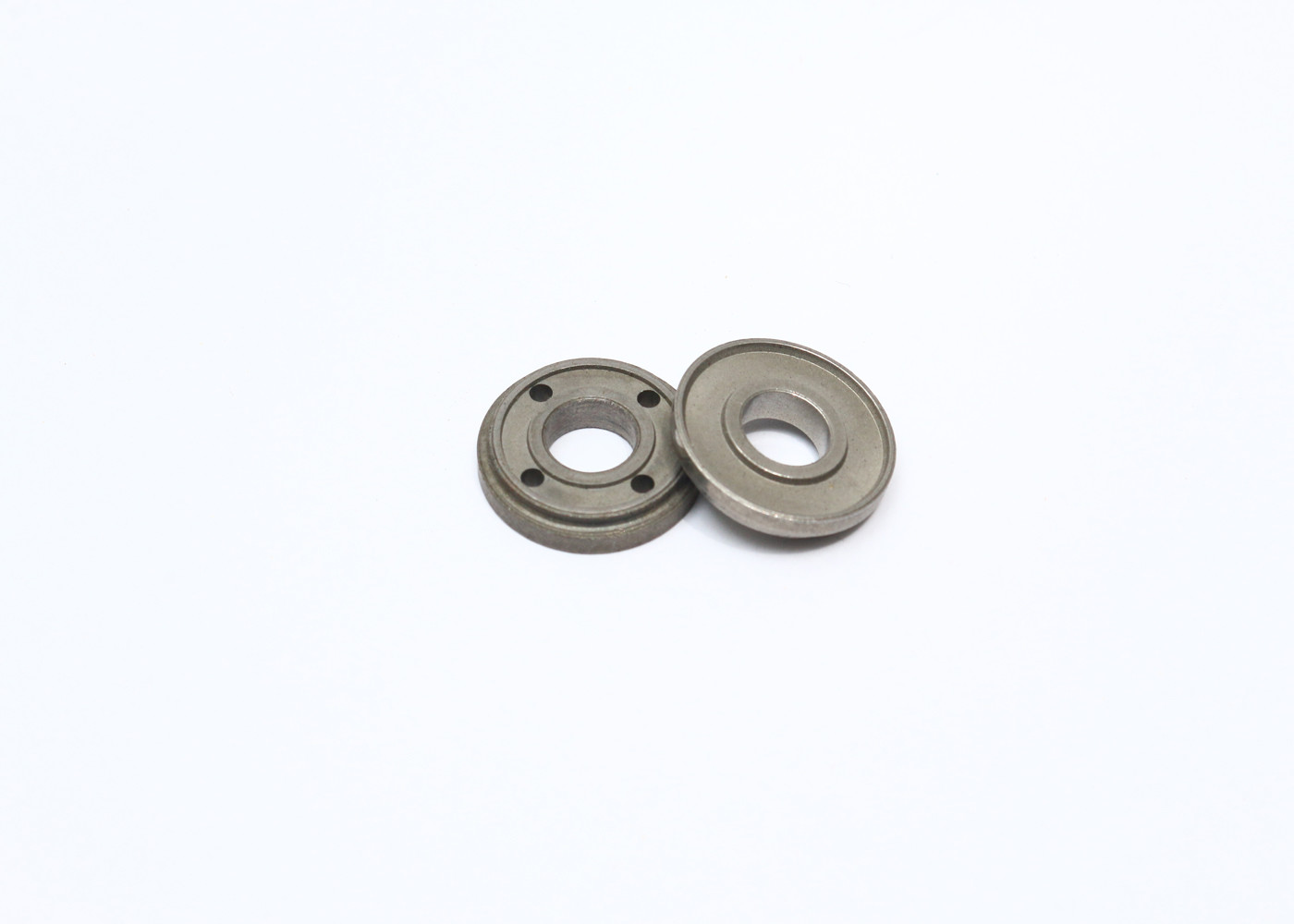

Picture show:

2mm Sinter Powder Metallurgy Components With Valve Plate 0
