100% Full Inspection PM parts with strong hardness for all kinds of automotives
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Customized PM parts |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | Packed in plastic box one by one, then in carton with standard export package |
| Delivery Time | 30 working days for new samples |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | Sinter Metal Parts | Material | Aluminum, Brass, Bronze |
|---|---|---|---|
| Application | Car And Truck | Molds Time | 25 Days |
| Plating | Steam Treatment | Net Weight | 20.20g |
| Machining | Micro Machining | Out Diameter | Produce Per Drawing |
| High Light | powder metallurgy components,powder metal parts |
||
Product Description
100% Full Inspection PM parts with strong hardness for all kinds of automotives
Specifications:
1). Applicable Material
Aluminum/zinc alloy, iron, steel alloy, plastic, brass, steel, and stainless steel
(2). Surface treatment---polishing, zinc plating, nickel plating, chrome plating, anodizing.
(3). Drawing format---IGS, SLD 2012, X_T, STEP, CAD 2012 and PDF
(4). Tolerance: metal part can reach +/-0.01mm
(5). Payment Terms: L/C, T/T is acceptable.
(6). Package: Standard package/ Pallet or container/As per customized specifications.
(7). Shipment Terms: Express & air freight priority/sea freight/ as per customized specifications
Description:
Good quality sintered metal parts, foot valve, base valve, rod guider
Our company produces different kinds of powder metallurgy products. These powder metallurgy products can be used in different areas such as auto accessories, power tool, mechanical parts, home appliances, office equipment, spinning machine and other machines.
Sintered parts
Material: MPIF FC-0205 or FC-0208 from GKN
Density: Not less than 6.8g/cm3
Hardness: 60-100 HB
Steam treatment: 2H high temp steam holding time
Thickness of Fe3O4: 0.004-0.005mm
Die tooling design and making in house
Ultrasonic clearing and auto de-burring
The sintered part has the following major advantages:
(A) High precision due to mold- Based production.
(B) Low price due to its inherent feature of automation for mass production
(C) Flexibility of material composition due to wide variety of powder formula on Fe- Cu- Ni alloy
Applications:
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts
6. Tool Parts
Competitive Advantage:
High quality
High precision
Low price
Fast delivery
Good service

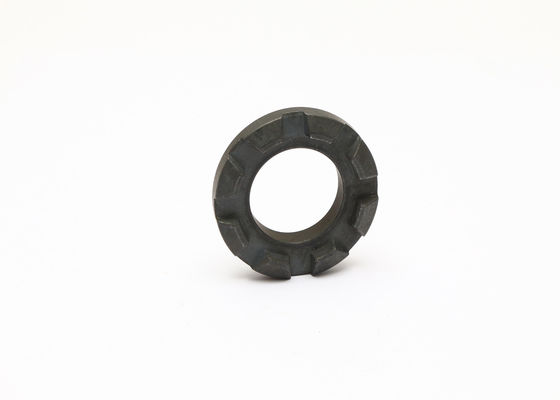

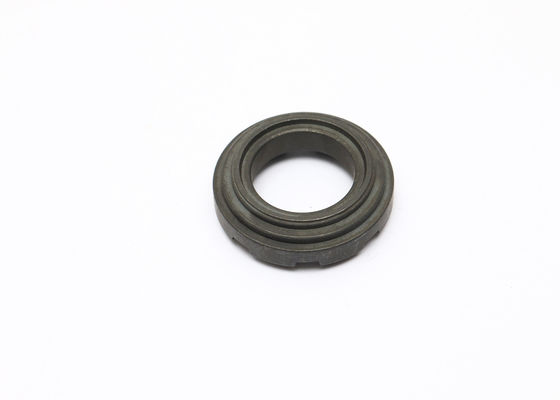

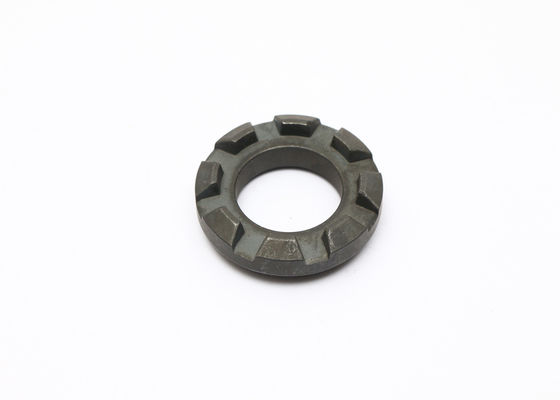

Picture show:
 |
