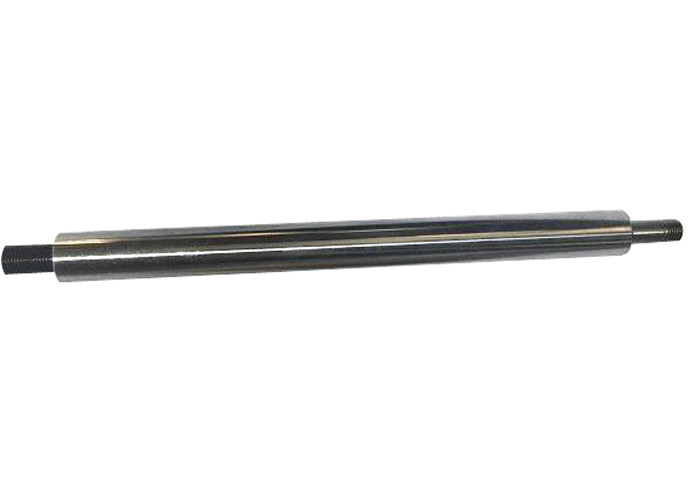

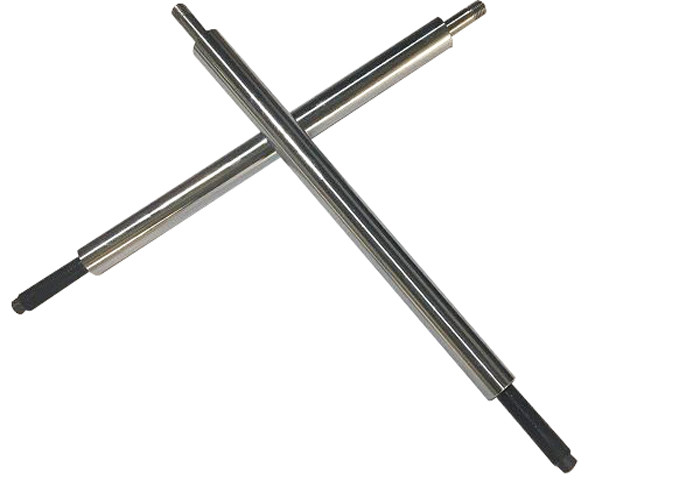

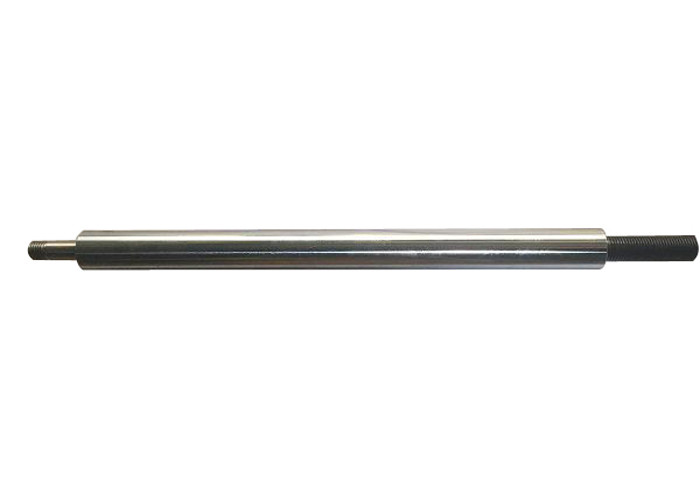

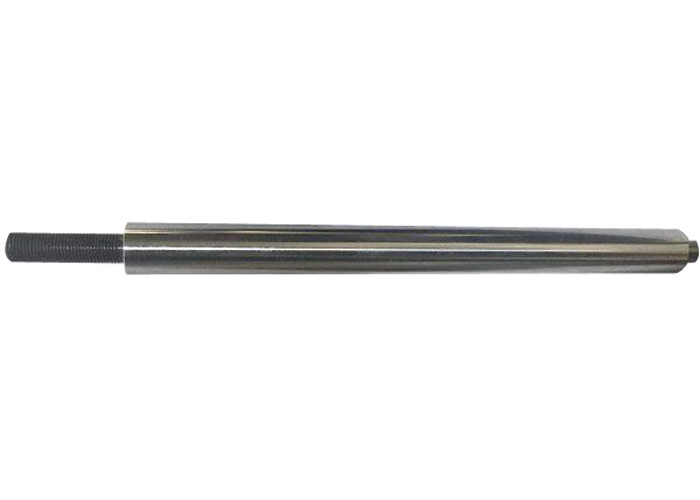

Ø22 Shock Absorber Piston Rod With High Surface Hardness HV800 min
| Place of Origin | NINGBO |
|---|---|
| Brand Name | WEIWO |
| Certification | IATF16949:2016 |
| Model Number | K30-50-2053 |
| Minimum Order Quantity | 100 sets |
| Price | USD1.40 ~ 1.65 /set |
| Packaging Details | 10-50 PCS in one carton or plastic blister tray, outside wooden pallet or wooden box. |
| Delivery Time | 15-25 days after PO confirmed |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 500 sets per day |
Product Details
| Outer Diameter | 12.5MM | Total Length | 370MM |
|---|---|---|---|
| OD Of One End | M8 X 1.25 | OD Of Another End | M10 X 1.25 |
| Material | S 45 C | Chrome Thickness | 10 ~ 25 μm |
| Yield Strength | ≥350 Mpa | Tensile Strength | ≥580 Mpa |
| High Light | hydraulic piston rod,hollow piston rod |
||
Product Description
Factory Directly Sale Ø22 Shock Absorber Piston Rod With Surface Hardness HV800 min
Supply condition:
1.Hard chrome plated
2.Induction hardened
3.Quenched & Tempered
4.Induction hardened with Q&T
Specification:
| Steel Material | 45# DIN CK45 / JIS 45C and 35 # DIN CK35 / JIS 35C |
| Chrome Thickness | 10~25 μm |
| Chrome Hardness | 850 HV Min |
| Roughness | Ra 0.2 Micron Max |
| Straightness | 0.2/1000mm |
| Yield Strength | According to the steel material and customer requirement |
| Tensile Strength | According to the steel material and customer requirement |
| Elongation | According to the steel material |
| Bend Test | According to customer requirement |
Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
Description:
| Surface treatment | Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding… |
| Quality Assurance | IATF16949:2016 certified/SGS/TUV |
| Drawing formats | Solid works, Pro/Engineer, AutoCAD, UG, PDF |
|
Equipment used |
Japan 5-axis TSUGAMI-B-038T CNC turing machine |
| Japan 4-axis GAMA DMN-650 machining center | |
| Cylindrical Bore Grinders | |
| Wire EDM | |
| Magnetic grinding machine/ grinding Vibration machining | |
| Oven | |
| Ultrasonic cleaning machine | |
| Vacuum packing machine | |
|
Inspection device |
VMS2.5d measuring machine |
| Japan Mitutoyo tool microscope | |
| Japan Mitutoyo digimatic micrometer | |
| Japan Mitutoyo hardness tester | |
| Japan Mitutoyo calipers | |
| Japan Mitutoyo dial indicator | |
| Japan Mitutoyo height measuring tool | |
| Japan Mitutoyo tubular inside micrometer | |
| Japan Marble platform | |
| Go No Go gauge | |
| Electronic digital display caliper Ring gauges | |
|
Industry used |
Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication… |
Advantages:
1. Always being Reliable, Professional and Proactive.
2. More than 15 years in the CNC precision machining industry.
3. Japan Tsugami CNC machines, with cutting edge CNC solution.
4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.
Other questions:
Q1. Are you a Manufacture or Trading Company?
A1:We are manufacturer. We have been in this line for more than 10 years
Q2. What kinds of parts can you supply?
A2: 1. Piston rod 2. Oil seal 3. Rubber parts 4. Pistons. 5. Stamping parts 6. Powder metallurgy parts etc.
Q3. What is your production Lead Time?
A3: 5 working days for goods in stock ,15-45 days for mass products.
Q4. What is your payment way?
A4:We accept payment by western union, T/T, L/C. Normally. 30% deposit in advance, 70% balance before shipment.
