30mm PTFE Banded Shock Absorber Parts Steam Treatment Coating

Place of Origin China
Brand Name WEIWO
Certification IATF16949:2016
Model Number Φ30mm
Minimum Order Quantity 1200pcs
Price negotiation
Packaging Details Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Time 10 working days after payment
Payment Terms T/T, Western Union, L/C
Supply Ability 30,000 pcs per month
Product Details
Product Name Banded Piston Density Of Sinter Piston More Than 6.5g/cm3
Material Of Bands Fillled PTFE Application Car Shocks
Density Of Bands 2.06-2.19 G/cm3 Outer Diameter 29.95-30.05 Mm
Inner Diameter 8mm Coating Steam Treatment
High Light

30mm shock absorber piston


30mm shock absorber parts


6.5g/cm3 shock absorber parts

Leave a Message
Product Description

30mm PTFE banded piston with shore hardness 60 can stand high temperature used in shocks​




Physical performance for shock piston

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness

57 - 61


2.15 – 2.19 g/cm3


Less than 50mg

friction coefficient

Less than 0.3

highest working temperature





Good seal steam treatment D30 multi-lip TFM banding Shock Piston with material of Hoganas powder


We are engaged in developing and manufacturing different kinds of shock absorber pistons powder


metallurgy based, with PTFE or TFM material banding outside, they have advantages of low friction, good


seal properties etc.


As a modern company orientated towards organic growth it is in our interest that there is a team-spirit,


that everyone is reliable and that we are all following the same targets. Our highly motivated and


competent team can be depended upon to pursue the utmost aim of the company which is "customer


satisfaction" at a consistently high quality.


We have different testing machines such as abrasion testing machine, tensile strength testing machine,


density tester, hardness testing machine and so on. We also design and develop a special testing


machine which test blow-off of banding piston.


The products have passed the Test center, Shang hai Plastic Research Institute. We have set up good


cooperative relationship with some big shock absorber factories home and abroad. Our mass production


piston types are: Φ20, Φ25, Φ27, Φ30, Φ31, Φ32, Φ35, Φ36, Φ40, Φ45, Φ50.


SPEC: D30.05XD8X11.5


1 ) Unique design for the fluid channels


2 ) Material: FC50.U3.60


3 ) Density is 6.0g/cm3


4 ) Steam treatment


Here is the physical property of PTFE bandings


Tensile strength               ≥23N/mm2


Working temperature         -80°C to 260°C


Friction coefficient (dry)       ≤0.20


Hardness                         57-62


Advantages for parts:


Superior hard chrome piston finish


Maximum safety and stability


Available for different types of vehicles


Customer own design available


Optimum corrosion resistance


Superior design and engineering




Car or motorbike shock absorbers


Competitive Advantage:


We are a professional company which produces different size and design shock absorber pistons.


We have a complete set of testing equipment which can control the quality for the material.


Complex multi-level design


Flexile and convenient logistic service


Significant increase in lifetime


Standard material according to technical drawing


Can absorb most shake when driving


Increased seal durability

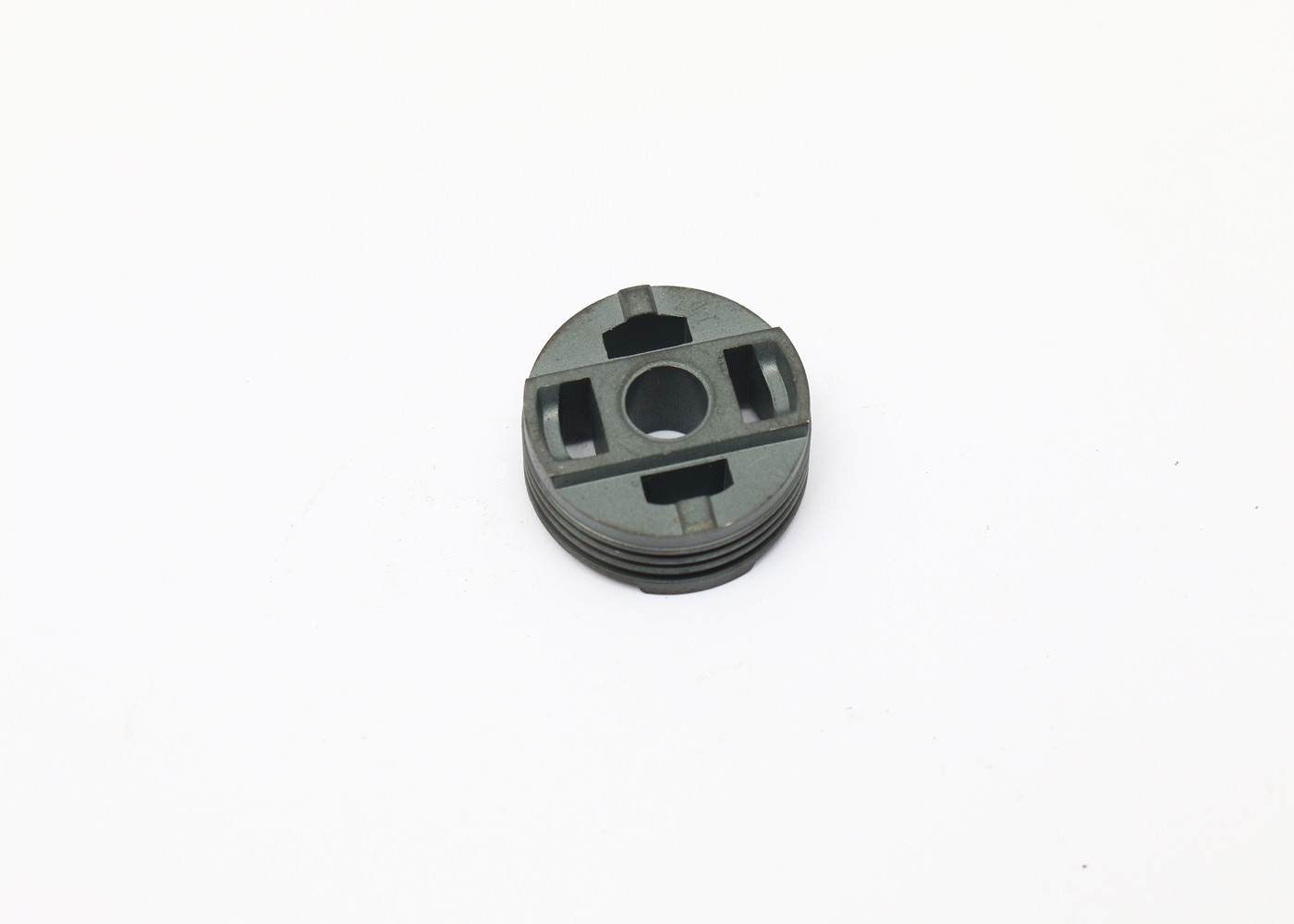

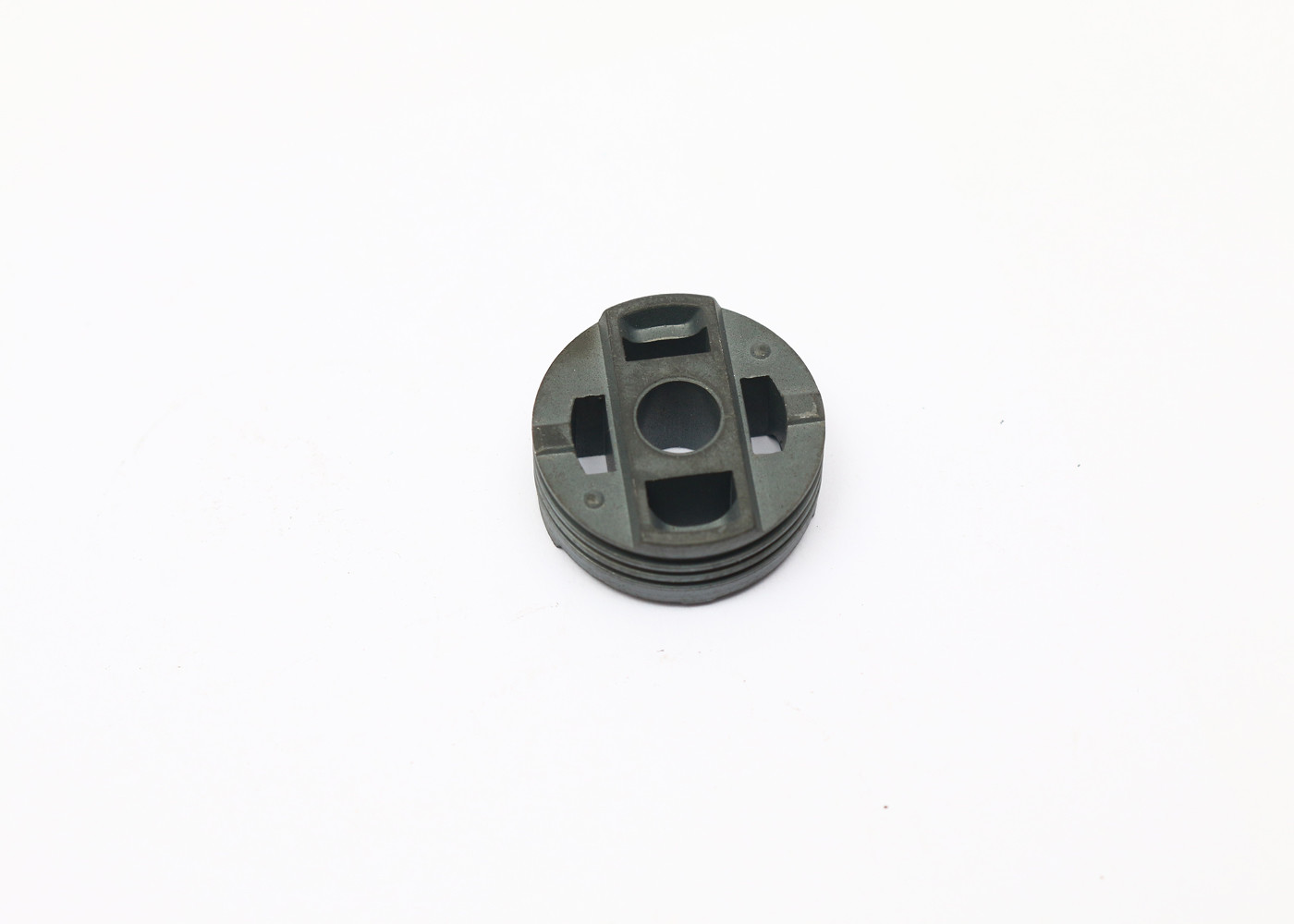

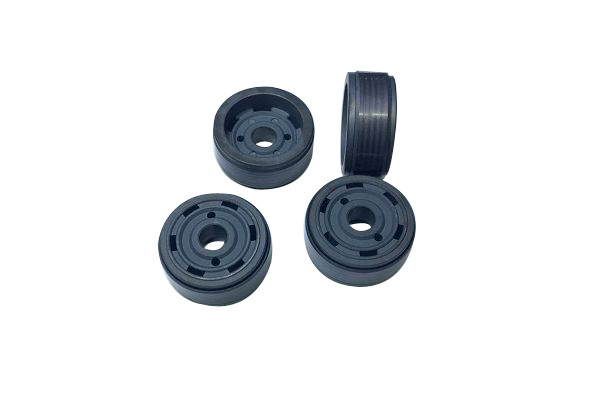

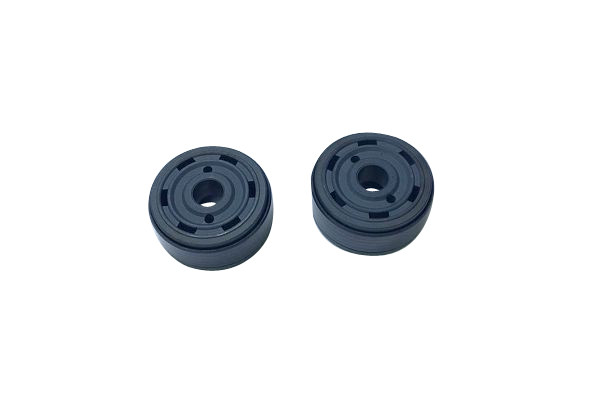

Picture show:

30mm PTFE Banded Shock Absorber Parts Steam Treatment Coating 0
