CNC Milling PTFE Plus Fillers Banded Piston Shock Absorber Piston 27mm 50T

Place of Origin China
Brand Name WEIWO
Certification IATF16949:2016
Model Number Φ32mm
Minimum Order Quantity 2,000pcs
Price USD0.23-0.27
Packaging Details Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Time 10 working days after payment
Payment Terms T/T, Western Union, L/C
Supply Ability 80,000 pcs per month
Product Details
Product Name Banded Piston Carrying Capacity ≥15N/mm3
Material Of Bands PTFE Plus Fillers Application Car Shock Absorber
Density Of Bands 2.06-2.19 G/cm3 Size 27mm
Stress Crack Test 150℃ X 500 Hours Durability Test 3,000,000 Cycles
High Light

27mm shock absorber piston


50T shock absorber piston


PTFE Plus Fillers Banded Piston

Leave a Message
Product Description

Pass blow off testing Banded Piston With good seal and Four Oil Holes Design 27mm



Banded piston can do slide resistance test according to the customer's demand.

piston should slide down uniformity both in positive and contrary direction,no damping stagnation.

Testing demand:

test velocity is 3mm/min,Static strength damage:11.27KN

net weight is 23.60g




1. Auto Mechanical Press:50T, 100T, 140T

2. Hydraulic Press:100T, 315T, 600T, 800T

3. Six sinter furnaces, including one harden Sinter Furnace

4. Heat treatment:Carbonitriding quenching and high frequency quenching

5. Ultrasonic clearing and auto deburring

6. In-house tooling making:EDM, wire cutting machine

7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.



Physical performance for shock piston

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness

57 - 61


2.15 – 2.19 g/cm3


Less than 50mg

friction coefficient

Less than 0.3

highest working temperature





High temperature resistance, two holes design D31 cars Shock Absorber Piston


We are a professional factory engaging in producing shock absorber pistons, with many years experiences in this line.


As we know, shock absorbers play a large part in the performance of the vehicle and are therefore


advised for a routine check up at regular intervals.


We can offer you the pistons with good quality and fit for the different road condition. We choose


advanced material and this provides long seal life, contributing to shock absorbers that can meet the


demands from car manufacturers of one hundred thousand kilometers before replacement.


SPEC: D27XD7.2X10


Two holes design


Symmetrical distribution


Surface roughness Ra<3.0μm


Net weight is 23.52g


Here is the physical property of PTFE rings:


Tensile strength       ≥23N/mm2


Carrying capacity    ≥15N/mm3


Working temperature    -80°C to 260°C


Friction coefficient (dry)       ≤0.16




1. Wide temperature range/high temperature resistance


2. Standard material according to technical drawing


3. OEM quality standard guarantee


4. Sample purpose order accepted


5. Complex multi-level design


6. Reduces friction and ensure smooth rod reaction




Car or motorbike shock absorbers


Competitive Advantage:


Fast delivery


Good quality


Professional team with much experience


Technical process

CNC Milling PTFE Plus Fillers Banded Piston Shock Absorber Piston 27mm 50T 0

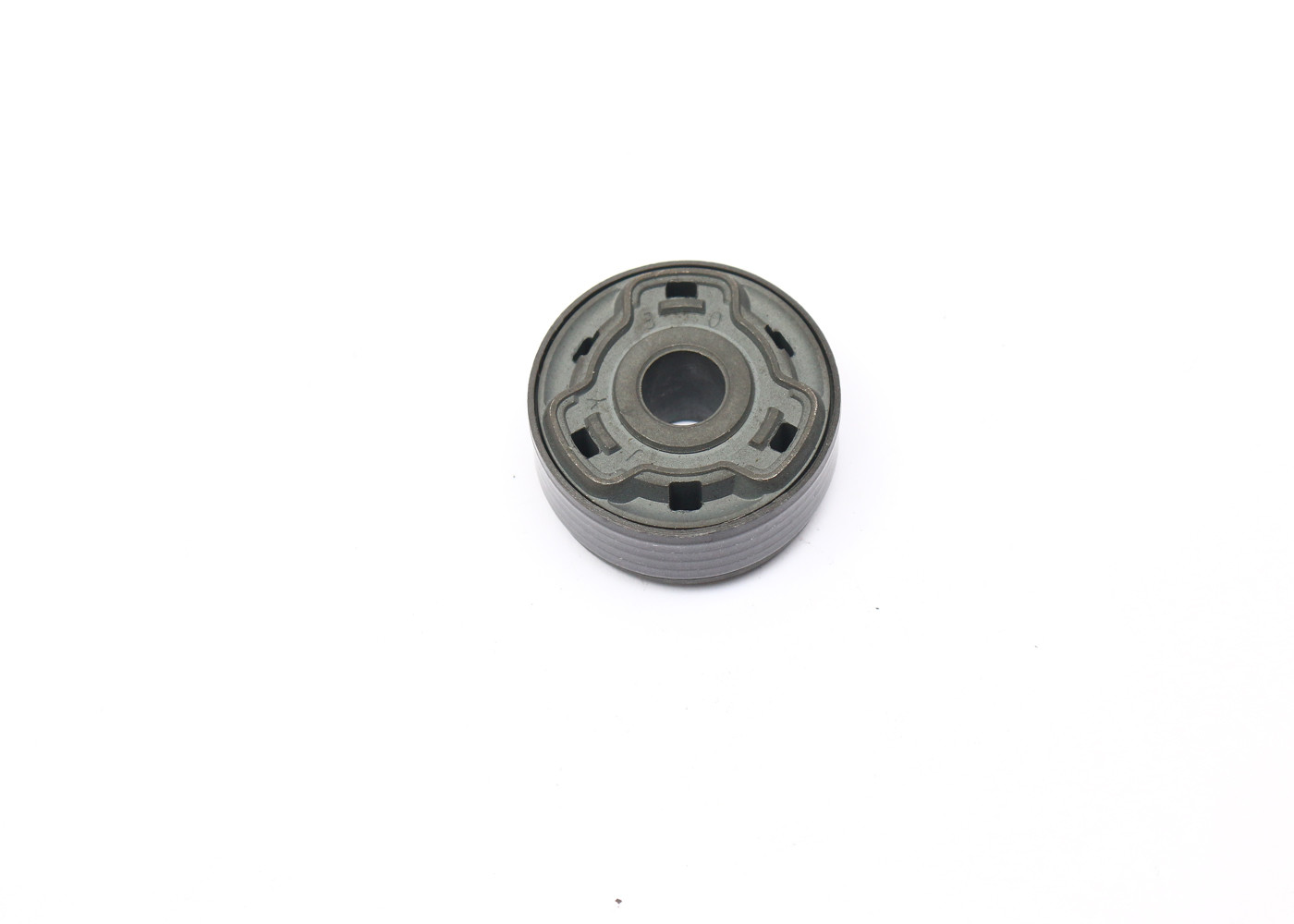

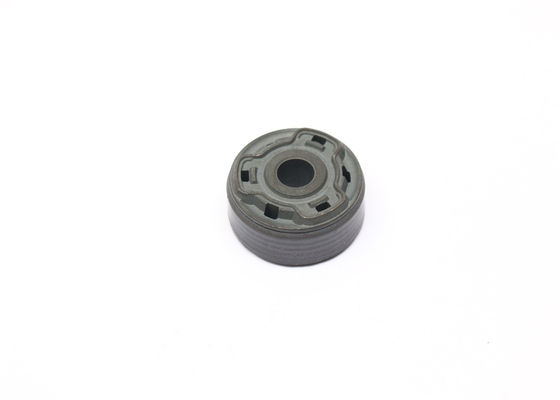

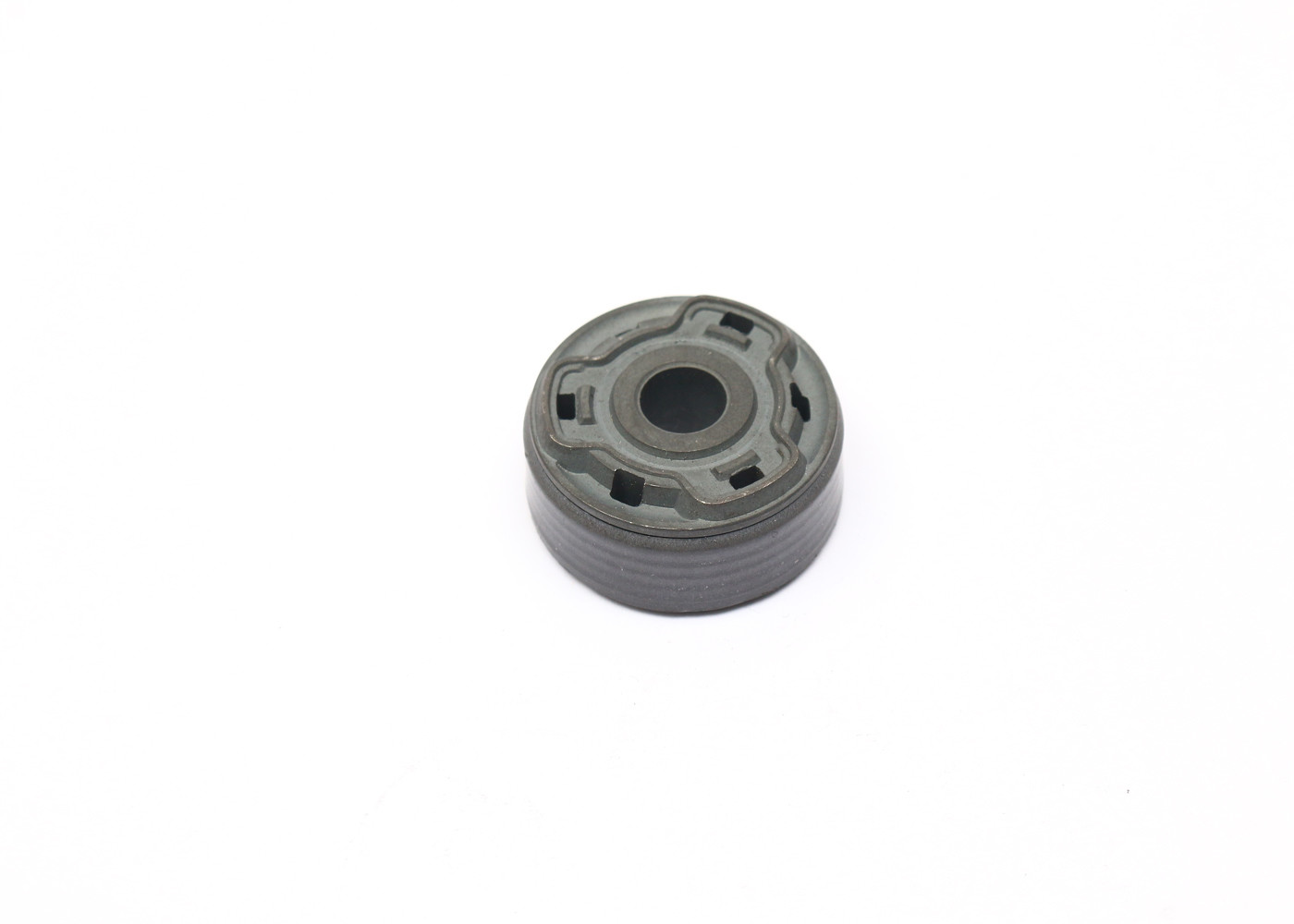

Picture show:

CNC Milling PTFE Plus Fillers Banded Piston Shock Absorber Piston 27mm 50T 1
