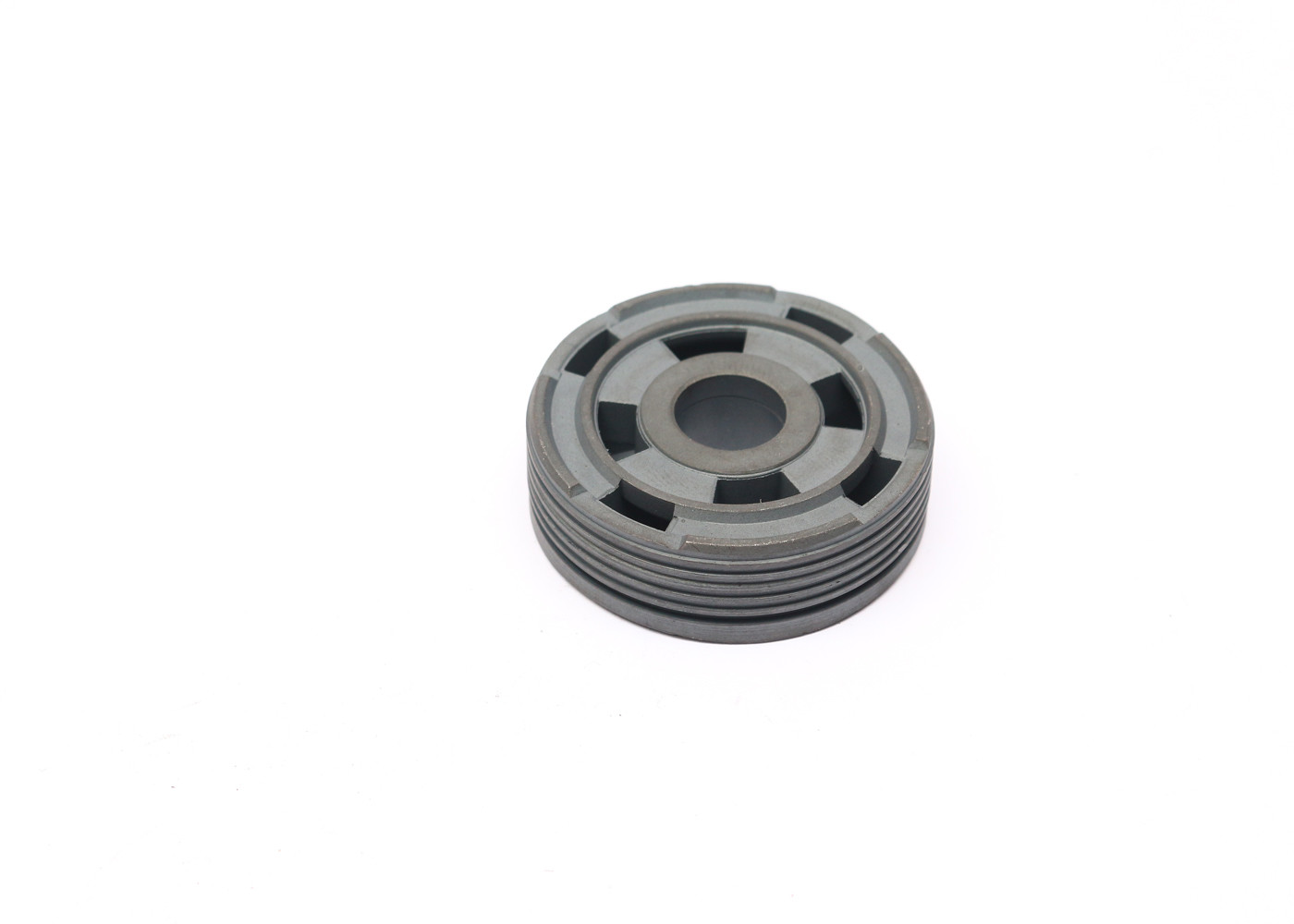

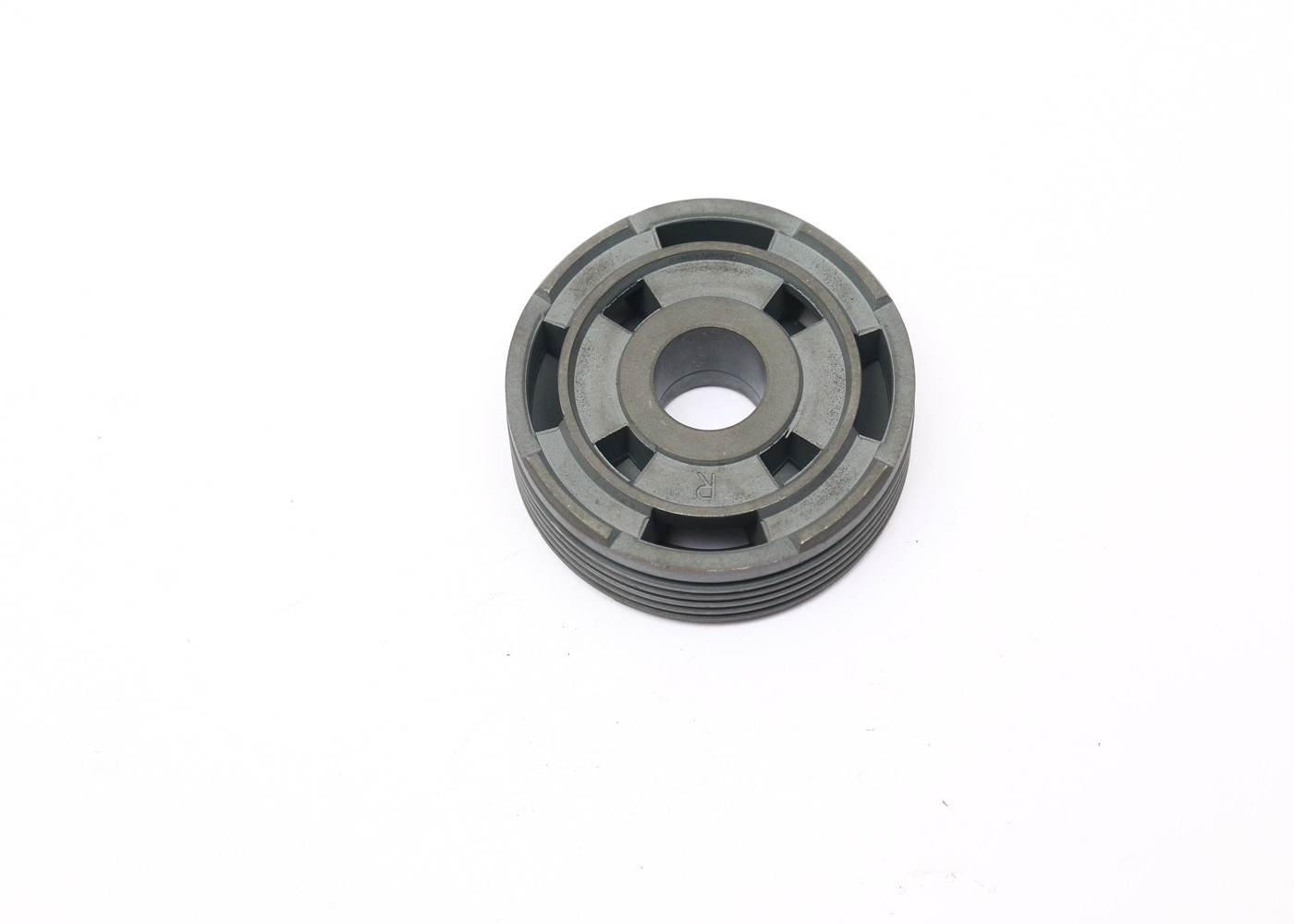

370C Sintering Shock Absorber Piston 31.5mm With Temp Curves
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | IATF16949:2008 |
| Model Number | Φ32mm |
| Minimum Order Quantity | 1052pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly and then reinforced with wooden case for outer packing |
| Delivery Time | 10 working days after payment |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 80,000 pcs per month |
Product Details
| Product Name | Banded Piston | Carrying Capacity | ≥15N/mm3 |
|---|---|---|---|
| Material Of Bands | PTFE Plus Fillers | Application | Car Shock Absorber |
| Density Of Bands | 2.06-2.19 G/cm3 | Size | 31.5mm |
| Stress Crack Test | 150℃ X 500 Hours | Durability Test | 3,000,000 Cycles |
| High Light | Shock Absorber Piston 31.5mm,Sintering Shock Absorber Piston,PTFE Temp Curves banded Piston |
||
Product Description
370 ℃ Sintering Temperature with temp curves Banded Piston with density 2.15 g / cm3
Banded piston can do slide resistance test according to the customer's demand.
piston should slide down uniformity both in positive and contrary direction,no damping stagnation.
Testing demand:
test velocity is 3mm/min,Static strength damage:11.27KN
net weight is 23.60g
Manufacturability:
1.Auto Mechanical Press:50T, 100T, 140T
2.Hydraulic Press:100T, 315T, 600T, 800T
3.Six sinter furnaces, including one harden Sinter Furnace
4.Heat treatment:Carbonitriding quenching and high frequency quenching
5.Ultrasonic clearing and auto deburring
6.In-house tooling making:EDM, wire cutting machine
7.Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.
Test apparatus list
1:callipers / micrometer
2:dial gauge
3:go/no-go gauge
4:gauge stick
5:run-out test instrument
6:electronic balance
7:metallomicroscope
8:three element analyzer
9:carbon and sulfur analyzer
10:hardmeter
11:universal tester
Specifications:
|
Physical performance for shock piston |
tensile strength |
More than 15MPa |
|
elongation @ break |
More than 200% |
|
|
shore hardness |
57 - 61 |
|
|
density |
2.15 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.3 |
|
|
highest working temperature |
260℃ |
Description:
High temperature resistance, two holes design D31 cars Shock Absorber Piston
We are a professional factory engaging in producing shock absorber pistons, with many years experiences in this line.
As we know, shock absorbers play a large part in the performance of the vehicle and are therefore
advised for a routine check up at regular intervals.
We can offer you the pistons with good quality and fit for the different road condition. We choose
advanced material and this provides long seal life, contributing to shock absorbers that can meet the
demands from car manufacturers of one hundred thousand kilometers before replacement.
SPEC: D31.5XD8.5X13
Two holes design
Symmetrical distribution
Surface roughness Ra<3.0μm
Net weight is 23.52g
Here is the physical property of PTFE rings:
Tensile strength ≥23N/mm2
Carrying capacity ≥15N/mm3
Working temperature -80°C to 260°C
Friction coefficient (dry) ≤0.16
Advantage:
1. Wide temperature range/high temperature resistance
2. Standard material according to technical drawing
3. OEM quality standard guarantee
4. Sample purpose order accepted
5. Complex multi-level design
6. Reduces friction and ensure smooth rod reaction
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Fast delivery
Good quality
Professional team with much experience
Picture show:
 |
Different Filler's influence
