Good Tensile Strength Bushing Wafer Banded Piston Applied In Automotive Front Shocks

Place of Origin China
Brand Name WEIWO
Certification ISO9001:2008
Model Number Φ30mm
Minimum Order Quantity 1,000pcs
Price negotiation
Packaging Details Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Time 10 working days after payment
Payment Terms T/T, Western Union, L/C
Supply Ability 80,000 pcs per month
Product Details
Product Name Banded Piston Carrying Capacity ≥15N/mm3
Material Of Bands PTFE Plus Fillers Application Car Shock Absorber
Density Of Bands 2.06-2.19 G/cm3 Size 30mm
Stress Crack Test 150℃ X 500 Hours Durability Test 3,000,000 Cycles
High Light

shock absorber piston


shock absorber parts

Leave a Message
Product Description

Good tensile strength bushing wafer banded piston applied in automotive front shocks



Four square holes design
the pistons are used in primary market
lateral force 800N added after piston is inclosed in dampers,amplitude +/-25mm,
piston ring don't drop down and no abnormal abrasion after 4 million times vibration
net weight is 28.58g




Physical performance for shock piston

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness

57 - 61


2.15 – 2.19 g/cm3


Less than 50mg

friction coefficient

Less than 0.3

highest working temperature



 Main property of our parts for shock absorber:


1.Density of powder metallurgy piston: no less than 6.3g/cm3
2.Density of powder metallurgy valve seat: no less than 6.5g/cm3
3.Density of powder metallurgy rod guide: no less than 6.6g/cm3
4.Efficiency steaming treatment and surface treatment
5.Good quality and competitive price




SPEC: D30XD8X11.5

Unique design for the fluid channels

Material: Fe-C-Cu for sinter piston, PTFE + graphite for PTFE disc

Density is 6.0 g / cm3

Steam treatment for sinter piston

Net weight is 38.32g


We are engaged in developing and manufacturing different kinds of shock absorber piston absorber pistons, they have advantages of low friction, good seal etc. We have test machines such as hardness meter (D), projector, analysis balance, friction wear testing machine, blow-off testing machines, fatigue testing machine and so on. Other items that we can't test in our company, we will send standard block samples to Shanghai Plastics Research Institute, so that we can assure the consistency of the raw material.


We have set up good cooperative relationship with some big shock absorber factories home and abroad. Our mass production piston types are:ø25,ø27,ø30,ø31,ø32,ø35,ø36,ø40,ø45.



multi-lip piston

Superior hard chrome piston finish

Maximum safety and stability

Available for different types of vehicles

Customer own design available

Optimum corrosion resistance

Superior design and engineering




Car or motorbike shock absorbers


Sinter parts widely used in :
1) Electric power tools parts
2) Pneumatic tools parts
3) Types of Gears / Pinion / Sprocket / Helical Gear/Belve gear/Gear box etc.
4) Garden Tools parts
5) Automobile Parts
6) Structure parts
7) Sinter Copper alloy Powder metallurgy parts
8) Sintered stainless steel parts


Competitive Advantage:


Fast delivery

Good quality

Professional team with much experience

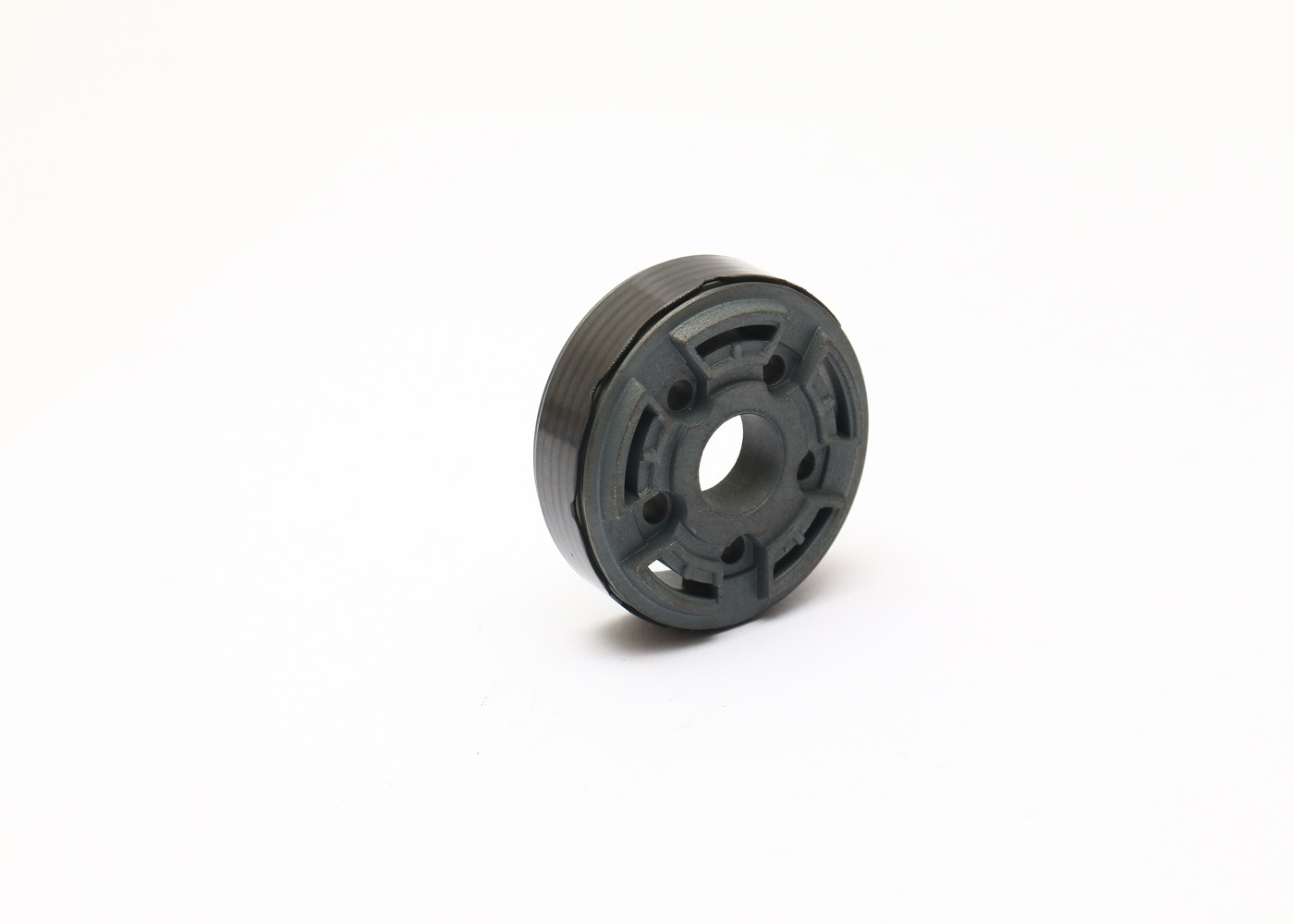

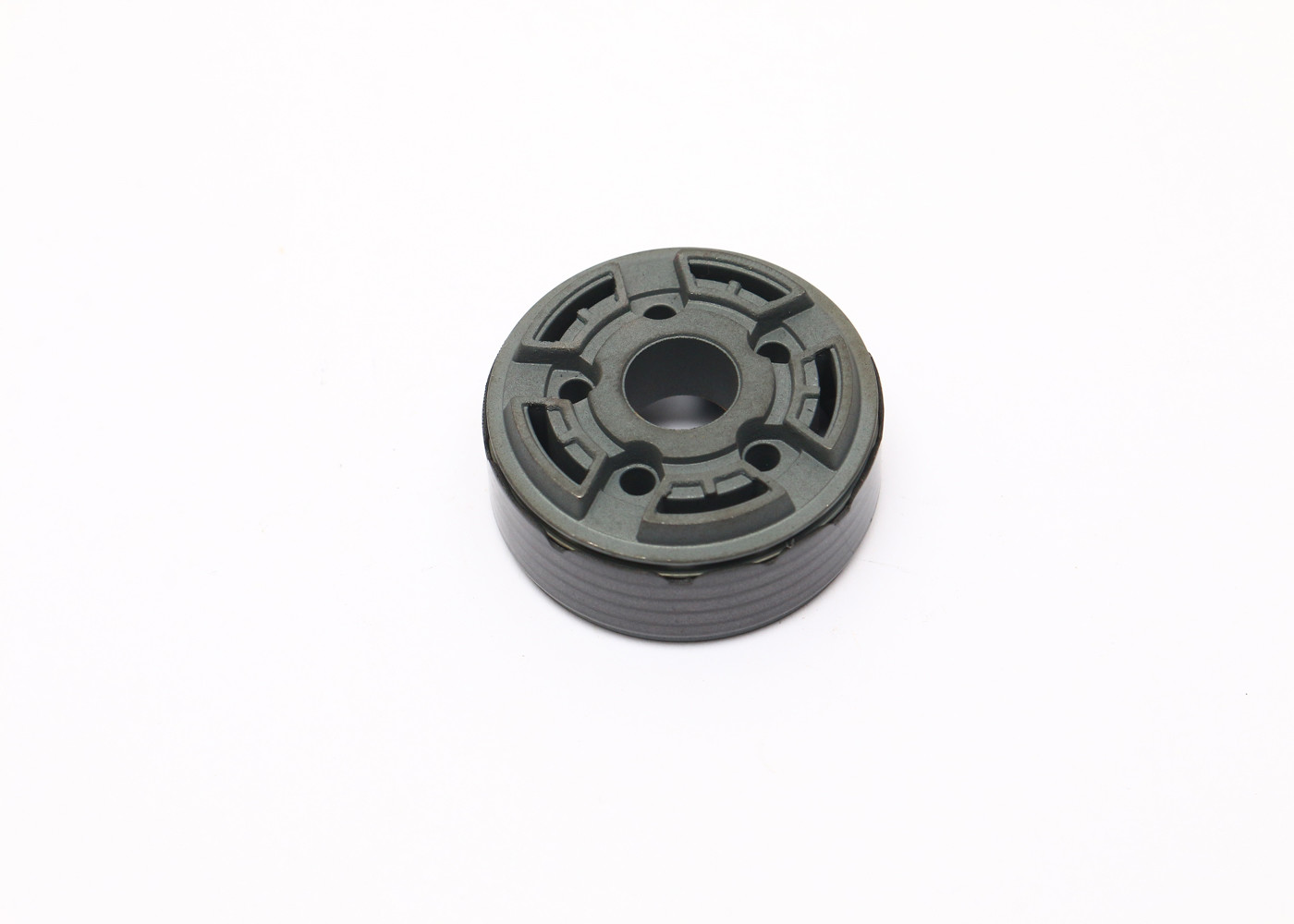

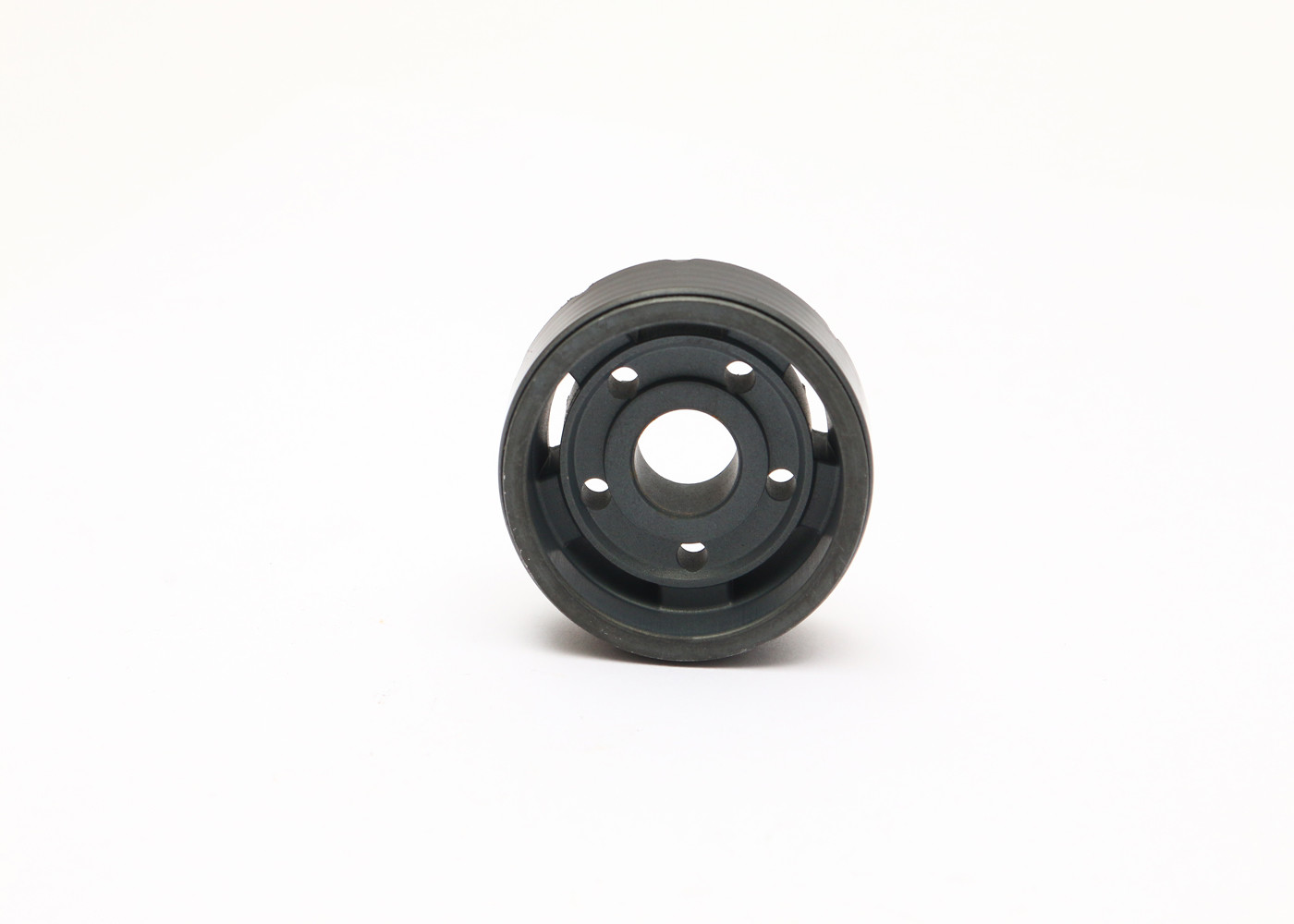

Picture show:

Good Tensile Strength Bushing Wafer Banded Piston Applied In Automotive Front Shocks 0
