Flared OD Banded Piston With Excellent Physical Properties Used In Front Car Shocks
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Φ30.5mm |
| Minimum Order Quantity | 1,027pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly and then reinforced with wooden case for outer packing |
| Delivery Time | 10 working days after payment |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 80,000 pcs per month |
Product Details
| Product Name | Banded Piston | Carrying Capacity | ≥15N/mm3 |
|---|---|---|---|
| Material Of Bands | PTFE Plus Fillers | Application | Car Shock Absorber |
| Density Of Bands | 2.06-2.19 G/cm3 | Size | 31.5mm |
| Stress Crack Test | 150℃ X 500 Hours | Durability Test | 3,000,000 Cycles |
| High Light | shock absorber parts,shock absorber reconditioning |
||
Product Description
Flared OD banded piston with excellent physical properties used in front car shocks
Based on powder metallurgy piston, banded with advanced PTFE layer with the advantage of good
wear-resistance, low friction and high temperature resistance.
Products have passed the test center of Shanghai Plastics Research Institute. Annual capacity can reach
20,000,000pcs. We will add new equipment to enlarge our capacity. We’ve set up good relationship with
big factories at home and abroad.
Our main customer:
KELEILA, Wuhu Tianyou,
BYD,FAW-TOKICO,NBTM, Tenneco, GABRIEL INDIA
Specifications:
|
Physical performance for shock piston |
tensile strength |
More than 15MPa |
|
elongation @ break |
More than 200% |
|
|
shore hardness |
57 - 61 |
|
|
density |
2.15 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.3 |
|
|
highest working temperature |
260℃ |
Description:
High temperature resistance, two holes design D31 cars Shock Absorber Piston
We are a professional factory engaging in producing shock absorber pistons, with many years experiences in this line.
As we know, shock absorbers play a large part in the performance of the vehicle and are therefore
advised for a routine check up at regular intervals.
We can offer you the pistons with good quality and fit for the different road condition. We choose
advanced material and this provides long seal life, contributing to shock absorbers that can meet the
demands from car manufacturers of one hundred thousand kilometers before replacement.
SPEC: D31.5XD8.5X13
Two holes design
Symmetrical distribution
Surface roughness Ra<3.0μm
Net weight is 23.52g
Here is the physical property of PTFE rings:
Tensile strength ≥23N/mm2
Carrying capacity ≥15N/mm3
Working temperature -80°C to 260°C
Friction coefficient (dry) ≤0.16
Advantage:
1. Wide temperature range/high temperature resistance
2. Standard material according to technical drawing
3. OEM quality standard guarantee
4. Sample purpose order accepted
5. Complex multi-level design
6. Reduces friction and ensure smooth rod reaction
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Fast delivery
Good quality
Professional team with much experience

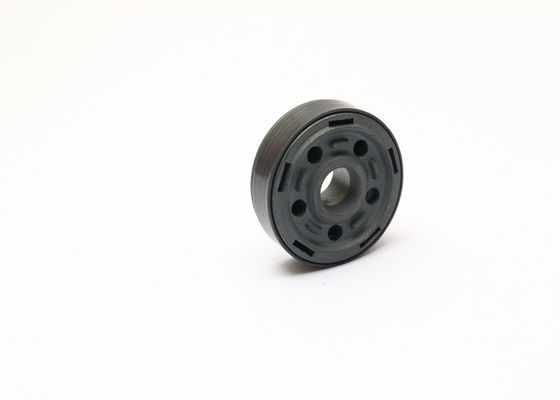

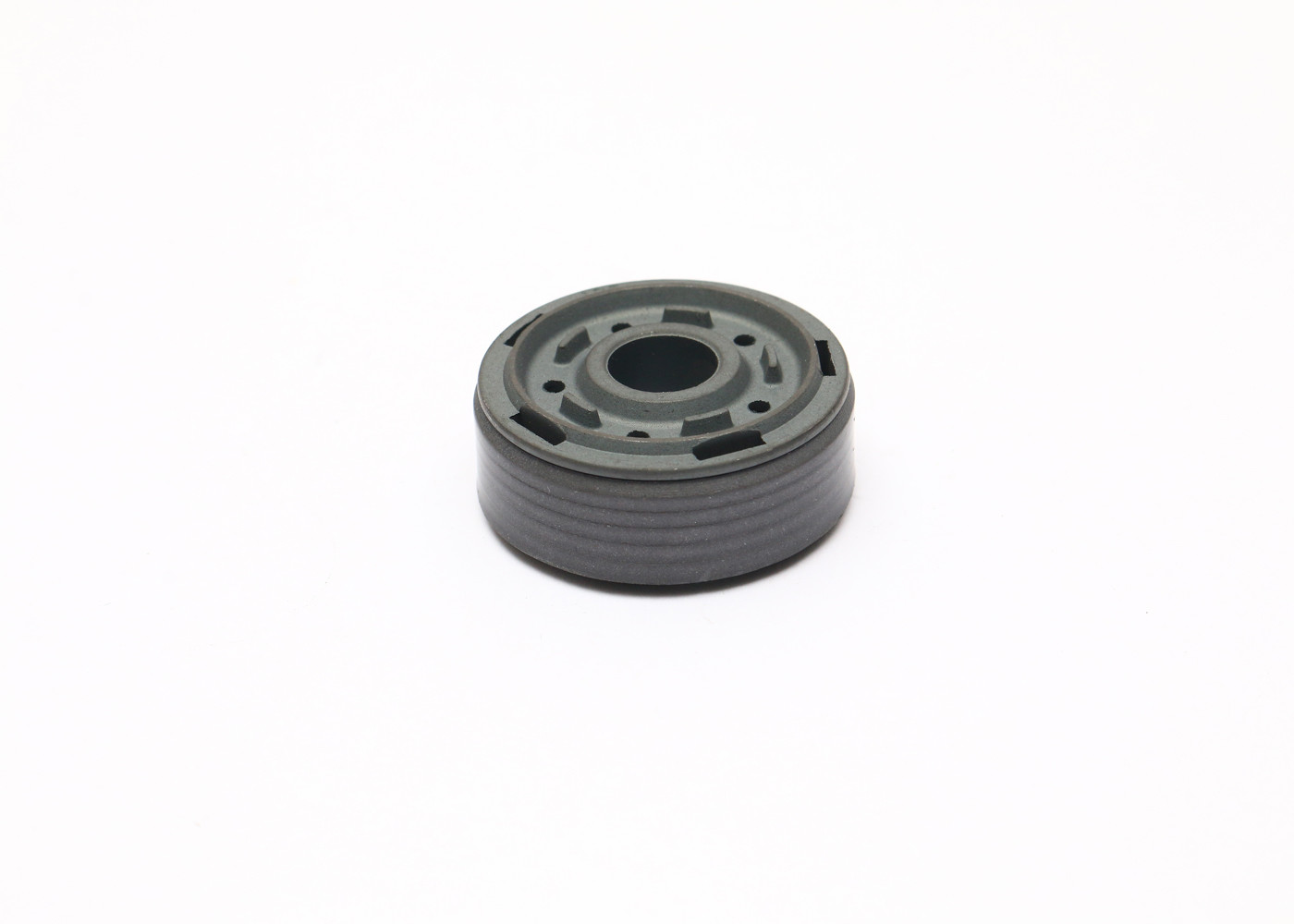

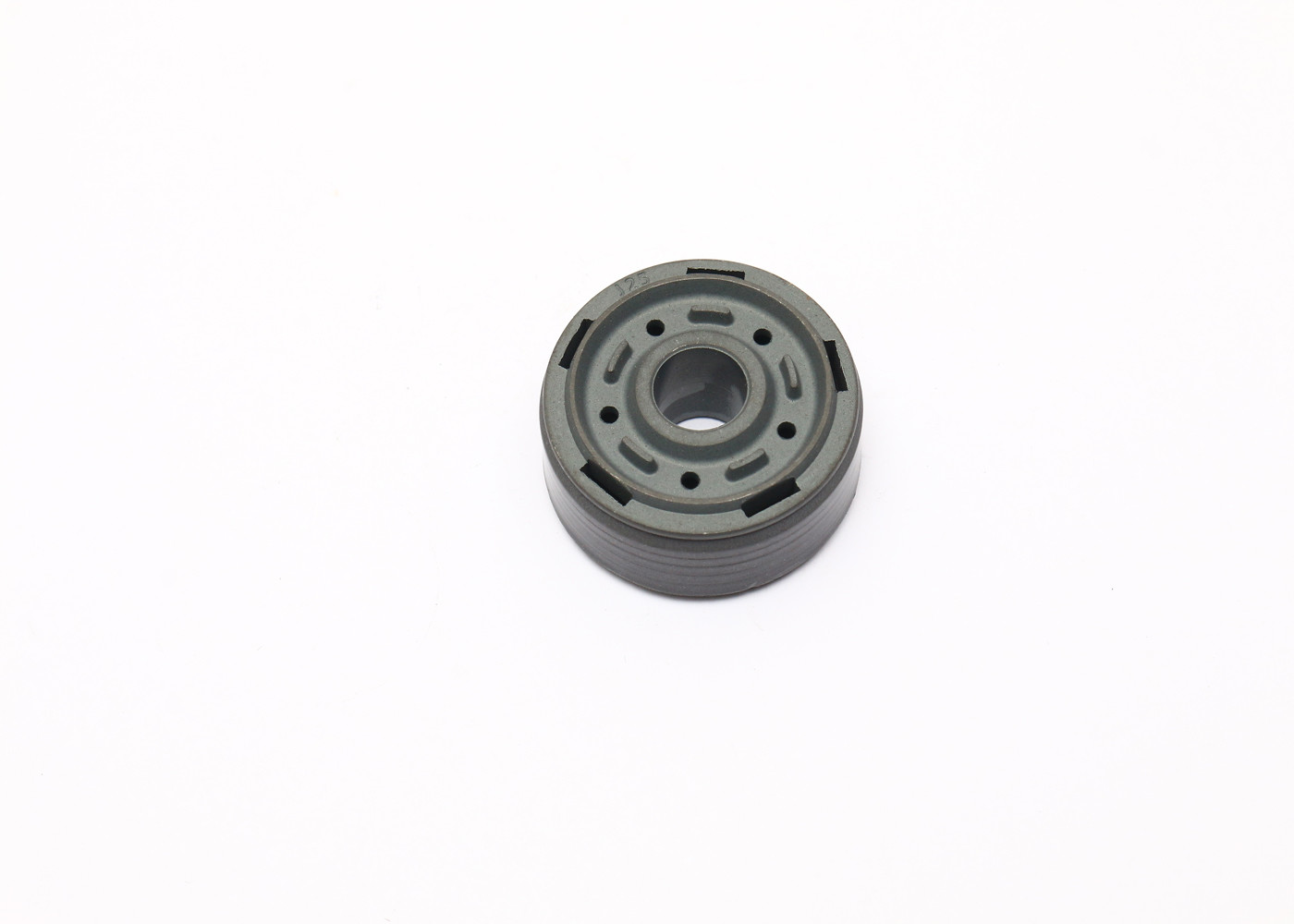

Picture show:
 |
