Pass blow - off testing filled PTFE banded Piston for automotive Shock Absorber
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | Φ25mm |
| Minimum Order Quantity | 5,000pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly and then reinforced with wooden case for outer packing |
| Delivery Time | 10 working days after payment |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 80,000 pcs per month |
Product Details
| Product Name | Banded Piston | Sinter Parts Density | More Than 6.5g/cm3 |
|---|---|---|---|
| Material Of Bands | Fillled PTFE | Application | Car Shocks |
| Bands Density | 2.06-2.19 G/cm3 | Size | 30mm |
| Technology | PTFE Bands | Material Of Sinter Parts | FC - 0208 Or FC - 0205 |
| High Light | shock absorber parts,shock absorber reconditioning |
||
Product Description
Pass blow-off testing filled PTFE banded Shock Absorber Piston in automotive
Specifications:
|
Physical performance for shock piston |
tensile strength |
More than 15MPa |
|
elongation @ break |
More than 200% |
|
|
shore hardness |
57 - 61 |
|
|
density |
2.15 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.3 |
|
|
highest working temperature |
260℃ |
Description:
Pass blow-off testing filled PTFE banded Shock Absorber Piston
We are specialized in producing shock absorber pistons from automobiles and motorcycles.
With development, we have reached annual capacity 2,000,000pcs. We have built good relationship with
some big shock absorber manufacturers at home and abroad.
SPEC: D25XD8X12
• The pistons are exported to Japan
• 4 small holes design
• All the holes are inclined
• Net weight is 30.45g
• Pistons can do performance test according to the customer's demand.
Here is the physical property of our products:
Tensile strength ≥23N/mm2
Carrying capacity ≥15N/mm3
Working temperature -80°C to 260°C
Friction coefficient ≤0.16μ
Manufacturability:
Auto Mechanical Press: 50T, 100T, 140T...
Hydraulic Press: 100T, 315T, 600T, 800T
Six sinter furnaces, including one harden Sinter Furnace
Heat treatment: Carbonitriding quenching and high frequency quenching
Ultrasonic clearing and auto de-burring
In-house tooling making: EDM, wire cutting machine
Strength in machining: Machine center, CNC milling, CNC lathe, two end lapper etc.
We have different kinds of testing machines such as abrasion test, density test, friction test, blow-off test,
hardness test, tension strength test and so on. So you can highly trust our advanced material.
As a modern company orientated towards organic growth it is in our interest that there is a team-spirit,
that everyone is reliable and that we are all following the same targets. Our highly motivated and
competent team can be depended upon to pursue the utmost aim of the company which is "customer
satisfaction" at a consistently high quality.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
We are professional company which produces different size and design for shock absorber pistons.
We have a complete set of testing equipment which can control the quality for the material.

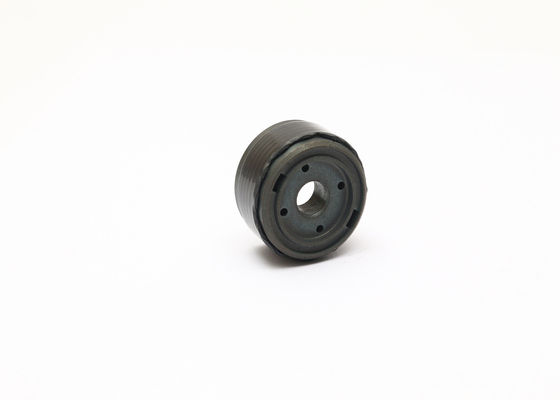

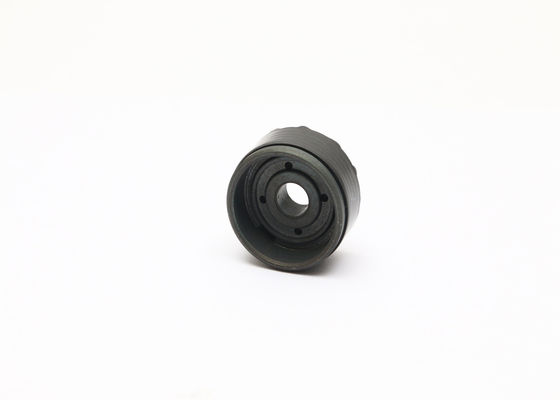

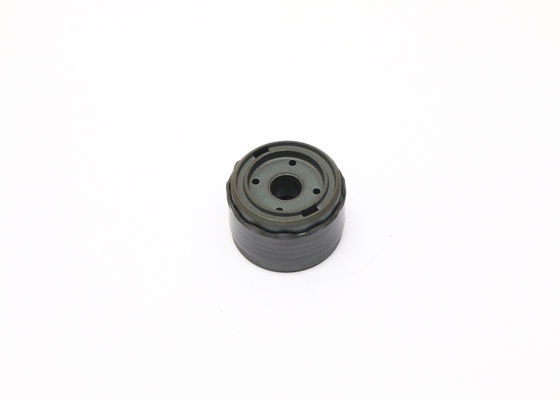

Picture show:
 |
