Carbon Fiber Front Shock Absorber OD 20 mm With Steam Treatment
| Place of Origin | China |
|---|---|
| Brand Name | WEIWO |
| Certification | IATF16949:2016 |
| Model Number | Φ20mm |
| Minimum Order Quantity | 1200pcs |
| Price | negotiation |
| Packaging Details | According to customer’s demand |
| Delivery Time | One week after payment |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1,000,000pcs per month |
Product Details
| Product Name | Shock Absorber Piston | Filler Of Bands | Carbon Fiber |
|---|---|---|---|
| Material Of Bands | PTFE | Color | Black |
| Application | Motorbike Front Shocks | Density Of Bands | 2.15 G/cm3 |
| Banded OD | 24.945-24.995mm | Working Temp. | 260 ℃ |
| High Light | shock absorber parts,damper piston |
||
Product Description
PTFE banded carbon fiber Front Shock Piston OD 24.945 - 24.995 mm with steam treatment
Specifications:
banded piston OD 24.945-24.995
skirt height 9.5-10.5
conventional design
with PTFE banded on OD
we can produce according to the customer's drawing
material of sinter piston: FC-0208 or Hoganas powder
material of PTFE bands: with carbon firber or other fillers
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
hardness (sinter piston) |
HRB60-80 |
|
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
|
Steam treatment |
||
|
OD tested by digital air gauge |
||
Description:
Filled PTFE Suspension Piston banded piston produced by skirting machine apply in automotives front or
rear shock absorbers. Piston design can be lip OD design or straight OD design with different technology
of toolings and process. Banded material is filled PTFE, fillers can be carbon fiber, MoS2, graphite carbon
or others. We can also use Dupont or TFM material from overseas market according to customer's
demand.
Our company is specialized in producing shock absorber pistons with sizes from 20mm to 50mm.
We have many semi and automatic banding machine, can satisfy the large quantity from local customers
and foreign customers. We have set up good relationship with some big shock absorber factories.
At the same time, we produce automatic banding machine by ourselves and we have related testing
equipment such as projector, analytical balance, friction-abrasion testing machine, blow-off testing
machine, friction testing machine and so on.We can test most of properties in our company and others we
can’t test we will send the standard sample blocks to Shanghai Plastics Research Institute. We can supply
test report from the third party
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Unique material for shock piston bands
Pistons are produced by automatic banding machine can assure the consistency of the size
Complete testing equipment

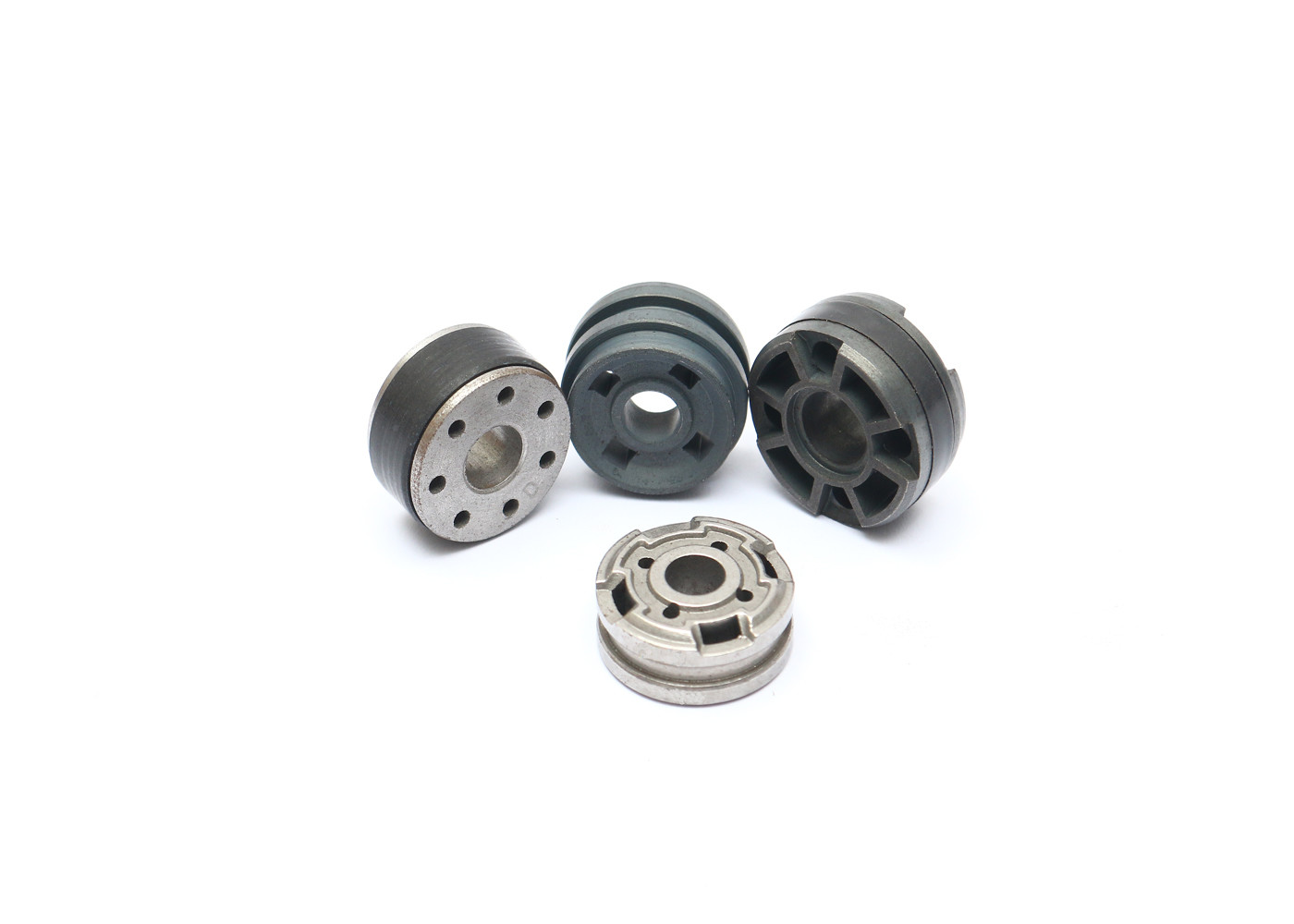

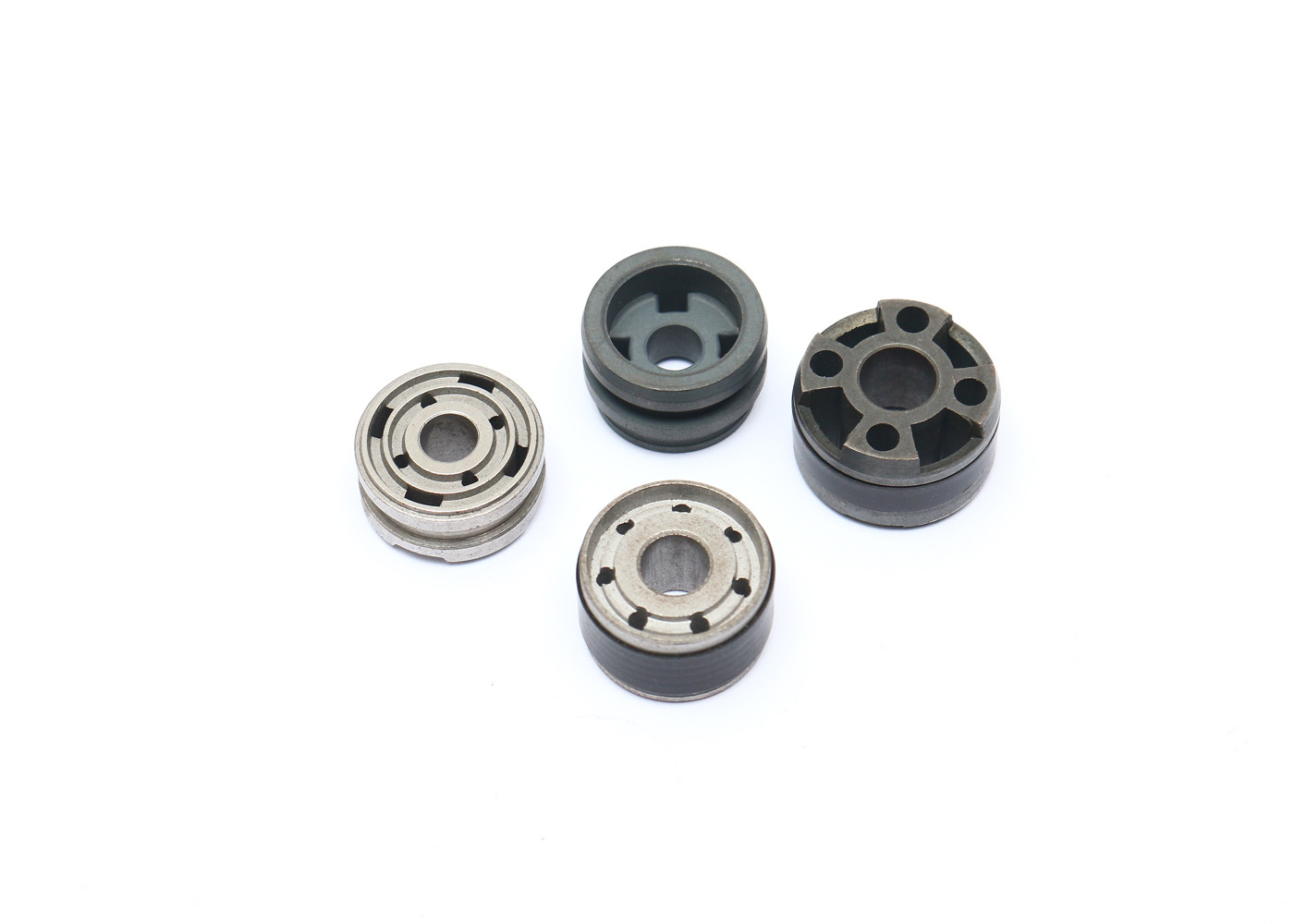

Picture show:
 |
