PTFE guide ring Sintered OEM guider Shock Absorber Parts Lined with bearing

PTFE guide ring Sintered OEM guider Shock Absorber Parts Lined with bearing

We are specializing in powder metallurgy,oil bearings,structural parts,gears(sprockets) and different parts

used in automobile and motorcycle.our company boasts fulley-automatic shaping mills, more than 60

finishing machines and about 20 professionals.our products spread out all over the the country, and we

supply components to Korea, America and Japan.

Specifications:

Description:

We manufacture pistons, valve cases and rod guides which are the main parts of the shock absorber

for 4-wheel and 2-wheel vehicles.

1. Bushing piston ring/PM piston shock absorber parts/sliding bearing

2. Shock absorber parts including bushing, PM piston, rod guide etc.

Product Name

Shock Absorber Rod Guide

Raw Materials: MPIF FC-0205

Feature

1. Density from 6.5-6.7 g/cm3

2. Hardness: HRB 60-100

3. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm

4. Full line products for shock absorber, including powder metallurgy piston, rod guide, foot valve, PTFE

band for piston, Du bearing for rod guide.

5. PPAP III is submitted accordingly.

These products find application in automotive, power tool, power transmission and various other

segments.

Processing

Mixing powder——Forming——Sintering——Sizing——After treatment——Steam treatment——Oil

impregnant——Packing——Shipping

Manufacturability

1. Auto Mechanical Press: 50T, 100T, 140T

2. Hydraulic Press: 100T, 315T, 600T, 800T

3. Six sinter furnaces, including one harden Sinter Furnace

4. Heat treatment: Carbonitriding quenching and high frequency quenching

5. Ultrasonic clearing and auto de-burring

6. In-house tooling making: EDM, wire cutting machine

7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.

Test Ability

1. Carbon sulfur determinator

2. Metallurgic microscope

3. Hydraulic universal material tester

4. Hardness testers

5. Pneumatic measuring instrument

6. Measuring projector

7. Gear testing instrument

8. Electrical profile meter

9. CMM

Competitive Advantage:

1. Well experienced in OEM manufacturing.

2. Many years in the powder metallurgy industry.

3. Professional technology service

Applications:

1. Automotive Part

2. Motorcycle Part

3. Pump Parts

4. Locomotive Parts

5. Machinery Parts

6. Tool Parts

Packing detail

1. 200pcs per carton

2. Carton size: 36.5*22.5*14.5mm

3. Gross weight: 24.5kg

4. Net weight: 24kg

5. Packing dozens of cartons per pallet

6. 6-7 pallets per container

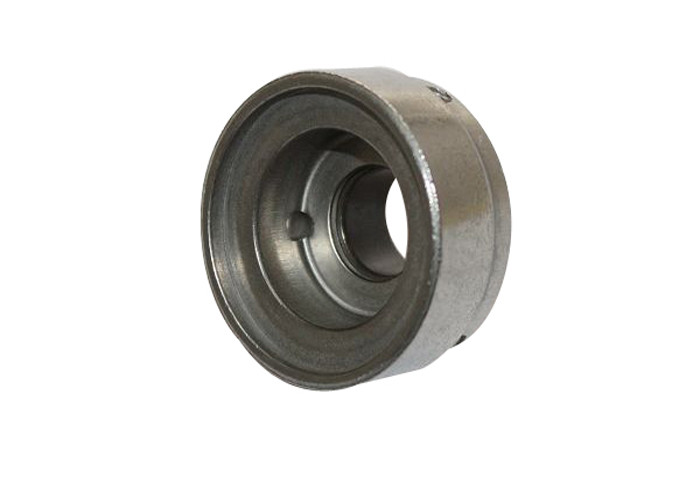

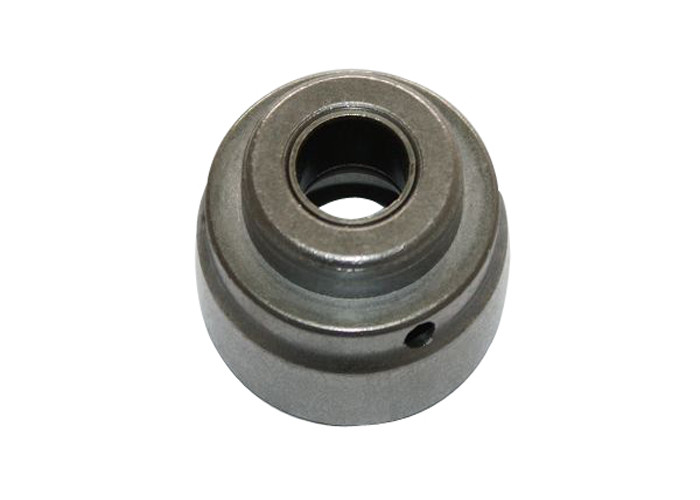

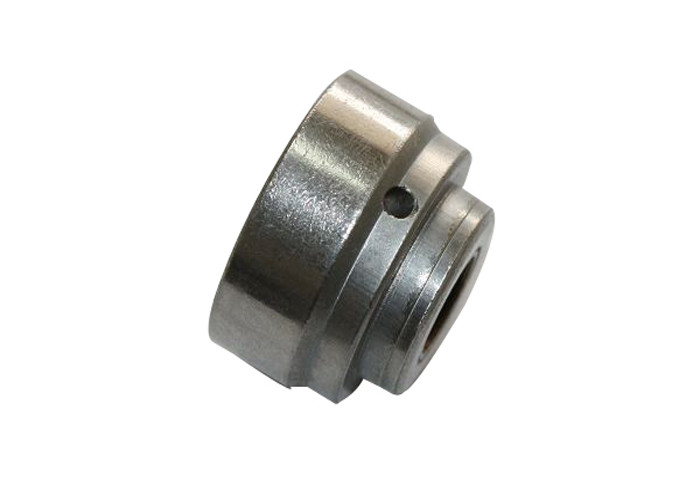

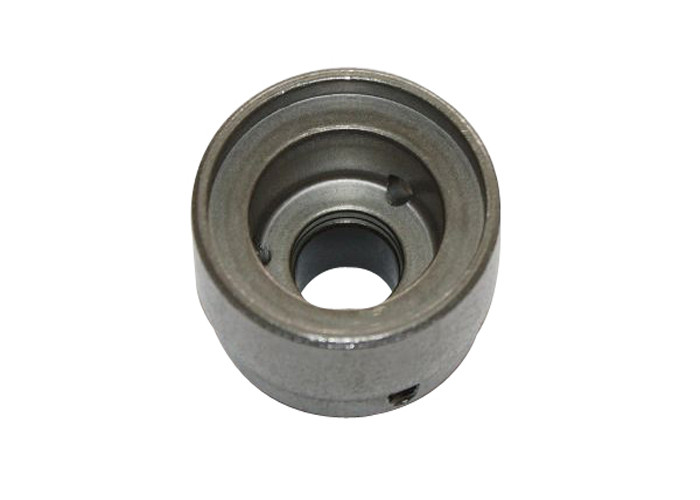

Picture show:
